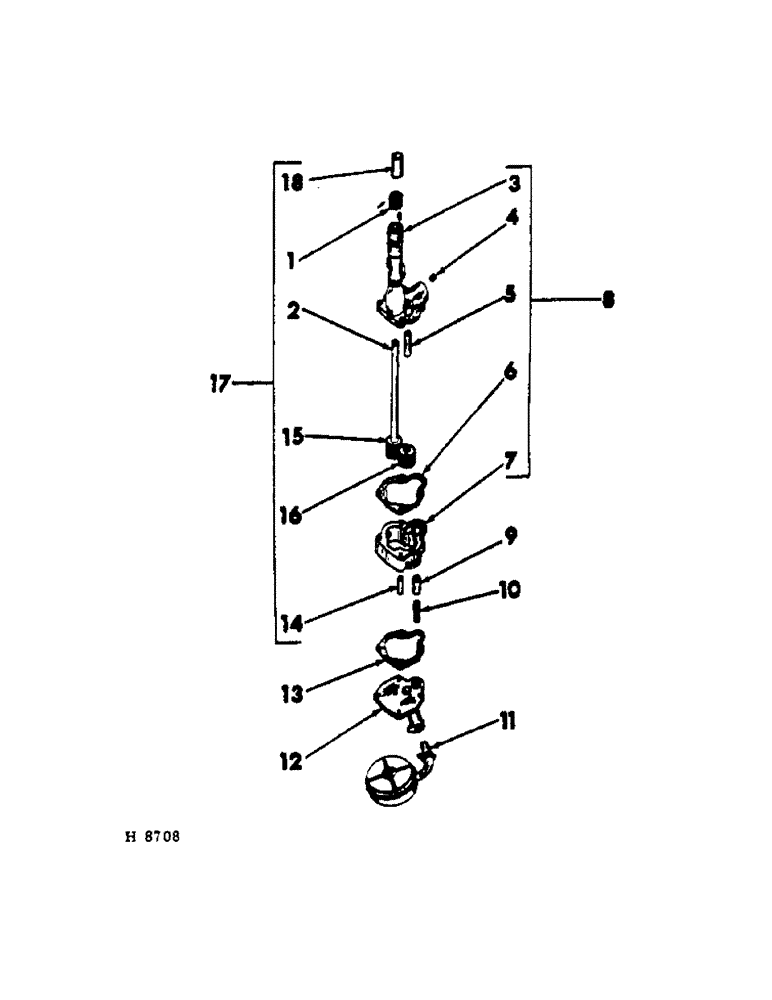

Запчасти Case IH 201 (A-020) - CRANKCASE OIL PUMP (10) - ENGINE

3043131R93

PUMP

oil (composed of all parts listed below, unless otherwise noted)

1шт.

BOLT, 3/8 x 1-1/8" type 2

1шт.

Not part of oil pump

1шт.

LK-WASH, 3/8" int-tooth

1шт.

Not part of oil pump

1шт.

1

704107R1

GEAR

PINION, oil pump drive

1шт.

932204R1

LOCK PIN,M3 x 20, Slotted

ROLL PIN, pinion

1шт.

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, 1/8 x 5/8" Woodruff

1шт.

2

3042478R1

SHAFT

drive, Serial Range: (prior-BD144/3474C)

1шт.

2

3042572R91

SHAFT

drive (BD144/3474C & up)

1шт.

3

BODY, oil pump (prior to BD144/3474C order 10751831R92, body) (serial no. BD144/3474C & up order 1-3042570R91, body) (NSS)

1шт.

4

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, 1/8" sq-hd pipe

1шт.

5

SHAFT, idler gear (prior to BD144/3474C order 1-751831R92, body) (serial no. BD144/3474C & up order 1-3042570R91, body) (NSS)

1шт.

6

706628R1

GASKET

pump body

1шт.

7

CASE, pump gear (prior to BD144/3474C order 1-751831R92, body) (serial no. BD144/3474C & up order 1-3042570R91, body) (NSS)

1шт.

8

751831R92

BODY, oil pump (prior to BD144/3474C) (composed of parts within the bracket)

1шт.

8

3042570R91

BODY

oil pump (BD144/3474C & up) (composed of parts within the bracket)

1шт.

9

751830R2

VALVE

BALL, pressure regulating valve

1шт.

10

751829R1

SPRING

regulating valve

1шт.

11

56108D

FILTER SCREEN

SCREEN, oil pump

1шт.

C-PIN, 1/8 x 1-1/8"

1шт.

12

751828R1

COVER

oil pump

1шт.

932204R1

LOCK PIN,M3 x 20, Slotted

ROLL PIN, pump cover

1шт.

BOLT, 5/16 x 2" type 2

1шт.

BOLT W/NUT, 5/16 x 2-1/2" type 2

2шт.

BOLT, 5/16 x 2-3/4" type 2

1шт.

LK-WASH, 5/16" int-tooth

6шт.

13

711558R1

GASKET

pump gear

1шт.

14

27999H

RING

RETAINER, gear, Serial Range: (prior-BD144/3474C)

1шт.

15

751555R1

SLEEVE

GEAR, body (prior to BD144/3474C) (w/serial no. BD144/3474C & up order 1-3042572R91, shaft)

1шт.

16

751657R91

GEAR, idler, Serial Range: (prior-BD144/3474C)

1шт.

16

3063757R1

GEAR

idler (BD144/3474C & up)

1шт.

17

3043132R93

BODY

ASSEMBLY, oil pump composed of: (1) body 3042570R92, (1) gear 3063757R1, (1) key 103905, (1) pinion 704107R1, (1) pin 932204R1, (1) shaft 3042572R1, (1) coupling 3042479R1

1шт.

18

3042479R1

COUPLING, BREAK AWAY

COUPLING, hourmeter drive

1шт.

932204R1

LOCK PIN,M3 x 20, Slotted

PIN, coupling

1шт.
