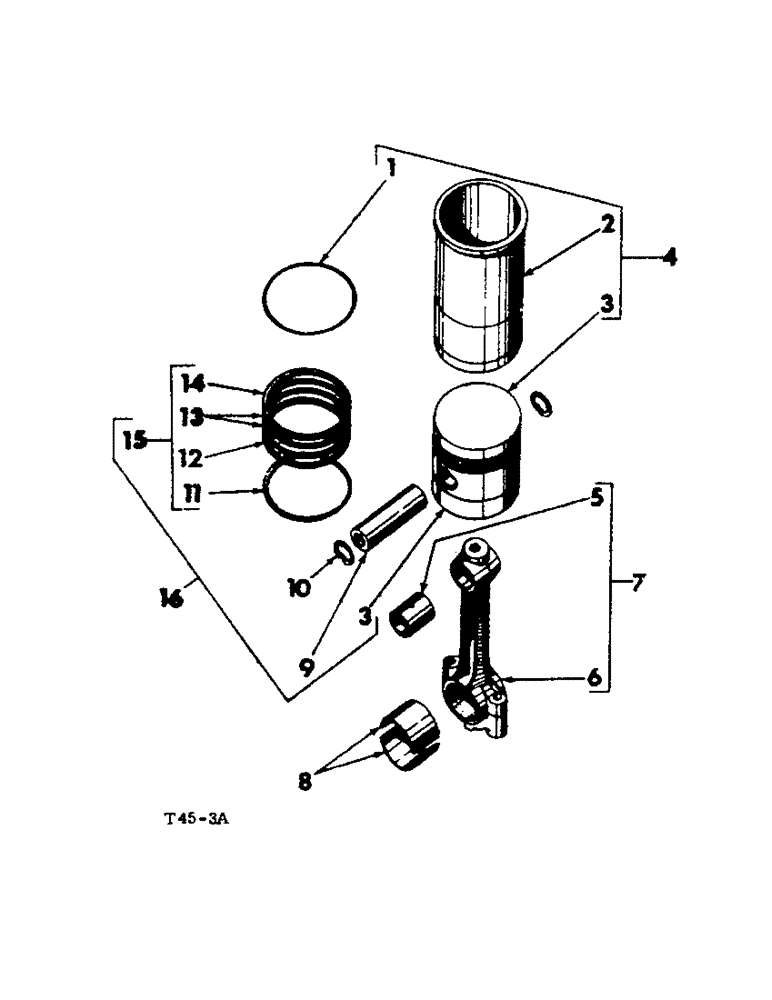

Запчасти Case IH 201 (A-019) - CONNECTING ROD AND CYLINDER SLEEVES (10) - ENGINE

1

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, cylinder sleeve packing

4шт.

2

704092R1

LINER, ENGINE CYLIND

SLEEVE, cylinder

4шт.

3

704099R2

PISTON ASSY

PISTON, cylinder

4шт.

4

751603R92

SLEEVE CYLINDER

PACKAGE, piston & sleeve service (includes 751605R92, piston assembly 704100R1, ring & 704092R1, sleeve)

4шт.

5

711045R1

BUSHING

piston pin (opt w/3043611R1)

4шт.

5

3043611R1

BUSHING

piston pin (opt w/711045R1)

4шт.

6

704088R91

ROD, CONNECTING

(includes 3043216R1, bolts & 711045R1 or 3043611R1, bushing), Serial Range: (prior-BD144/3136C)

4шт.

6

3061214R91

PITMAN ASSY.

ROD, connecting (includes 3043216R1, bolts & 711045R1, or 3043611R1, bushing) (BD144/3136C & up)

4шт.

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.

7

3061216R91

CONNECTING ROD

SET, connecting rod (includes 4 - 3061214R91, rods)

1шт.

8

3070546R91

BEARING LINER

PACKAGE, std connecting rod brg replacement (includes 4- 3070536R11, bearings)

1шт.

8

3070536R11

BEARING

connecting rod std

4шт.

8

3070539R91

BEARING LINER

PACKAGE, .015" undersize connecting rod brg replacement (includes 4 - 3070538R11, bearings)

1шт.

8

3070538R11

JOURNAL

BEARING, .015" undersize rod

4шт.

8

3070547R91

CRANKSHAFT BEARING

PACKAGE, .030" undersize connecting rod brg replacement (includes 4 - 3070537R11, bearings)

1шт.

8

3070537R11

BEARING

.030" undersize rod

4шт.

9

704094R1

LARGE PIN

PIN, cylinder piston std

4шт.

9

706411R1

PIN

.005" oversize piston

4шт.

10

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

11

704098R1

RING, 4th groove (opt w/705993R1)

4шт.

11

704993R1

RING, 4th groove (opt w/704098R1)

4шт.

12

751606R91

PISTON RING

RING, bottom groove (opt 2/3047733R91)

4шт.

12

3047733R91

RING, bottom groove (opt w/751606R91)

4шт.

13

704097R1

RING, 2nd & 3rd groove

8шт.

14

704096R1

RING

top groove

4шт.

15

751607R91

SEGMENT

PACKAGE, piston ring service (includes 704096R1, 704097R1, 704098R1, 751606R91, rings)

1шт.

16

751605R92

PISTON

ASSEMBLY, cylinder composed of: (1) pin 704094R1, (1) piston 704099R2, (2) retainer 704095R1, (1) ring 704096R1, (2) ring 704097R1, (1) ring 704098R1 or 705993R1, (1) ring 751606R91 or 3047733R91

4шт.
