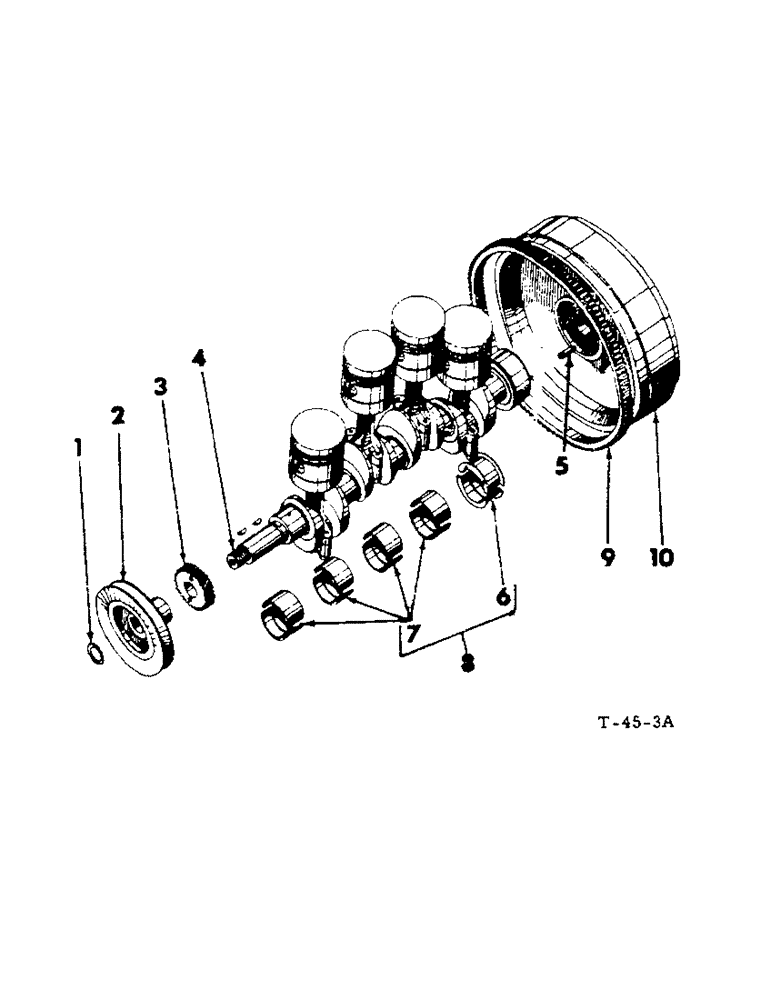

Запчасти Case IH 201 (A-017[A]) - CRANKSHAFT AND CRANKSHAFT BEARING (10) - ENGINE

1

138516

GASKET,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

2

675532R1

PULLEY

fan drive

1шт.

218211

DRIVING SPROCKET

1/4 x 3/4" Woodruff

1шт.

NUT, 1" jam

1шт.

3

703865R1

GEAR

PINION, 33T crankshaft

1шт.

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1/4 x 3/4" Woodruff

1шт.

4

751303R51

CRANKSHAFT

std (includes pins, 24550D)

1шт.

NUT, 1" jam

1шт.

5

24550D

PIN

flywheel dowel

2шт.

6

708910R91

BEARING ASSY

BEARING, std main rear

1шт.

6

708915R91

BEARING ASSY

BEARING, .015" undersize main rear

1шт.

6

708911R91

BEARING ASSY

BEARING, .030" undersize main rear

1шт.

7

3064523R11

CRANKSHAFT BEARING

BEARING, std front & center

4шт.

7

3064525R11

BEARING LINER

BEARING, .015" undersize front & center

4шт.

7

3064524R11

BEARING LINER

BEARING, .030" undersize front & center

4шт.

8

708912R91

CRANKSHAFT BEARING

SET, std brg (includes 3064523R11 & 708910R91, brgs)

1шт.

8

708914R91

CRANKSHAFT BEARING

SET, .015" undersize brg (includes 708915R91 & 3064525R11, brgs)

1шт.

8

708913R91

CRANKSHAFT BEARING

SET, .030" undersize brg (includes 708911R91 & 3064524R11, brgs)

1шт.

9

704436R1

SPROCKET

GEAR, flywheel ring

1шт.

10

3045899R11

FLYWHEEL (includes 704436R1, gear)

1шт.

607183R1

LOCK, flywheel bolt

2шт.

362442R1

BOLT,Hex, 7/16" - 20 x 2", Gr 8

7/16-NF x 2" type 4

4шт.
