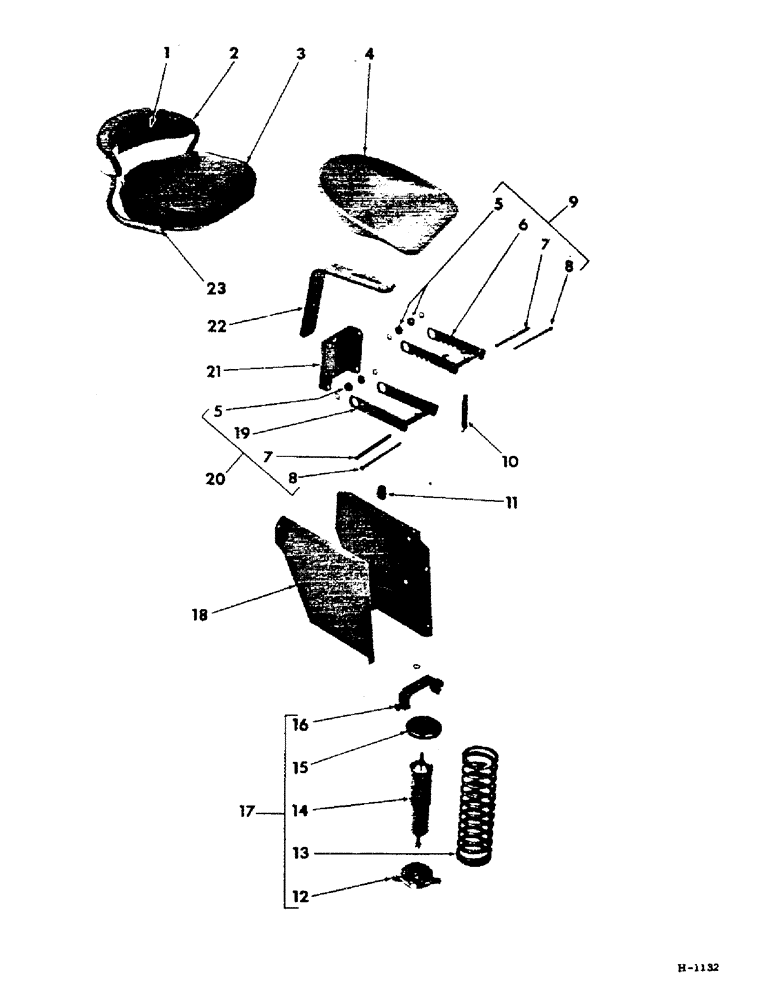

Запчасти Case IH 201 (E-016) - CHASSIS, OPERATORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

592000R91

SEAT, pan, Serial Range: (1965-1967)

1шт.

592002R91

SEAT, cushion (1965 and since)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

W/NUT, 5/16 x 5/8" C-Z type 2

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

1

592698R91

BACK PAD, seat

1шт.

Indicates peculiar parts for Cushion Seat

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2" slt-rd-hd C-Z

4шт.

2

592695R91

FRAME, seat (includes 592696R1 plug)

1шт.

Indicates peculiar parts for Cushion Seat

1шт.

592677R1

BOLT, 1/2-NF x 1/2" C-Z crg

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

685547R1

NUT

LK-NUT, 1/2"-NF C-Z

1шт.

3

592697R91

SEAT, cushion (Note B)

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1" C-Z type 2

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

4

592676R91

SEAT, pan

1шт.

Indicates peculiar parts for Pan Seat

1шт.

592677R1

BOLT, 1/2-NF x 1-1/2" C-Z crg

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

685547R1

NUT

LK-NUT, 1/2"-NF C-Z

1шт.

5

592681R91

BEARING, notched & plain arm

4шт.

6

ARM, notched (order 1-592680R91 arm) (NSS)

1шт.

592743R91

LUB-FITTING, special

1шт.

7

592682R1

TUBE, arm brg 0.384" ID, 0.5" OD, 6.75" Length

2шт.

8

20768R1

BOLT, 3/8-NF x 7-9/16" C-Z type 2

1шт.

685546R1

NUT

LK-NUT, 3/8"-NF C-Z

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

9

592680R91

ARM, suspension upr notched composed of: (1) arm (NSS), (2) bearing 592681R91, (1) fitting 592743R91, (2) bolt 181639, (2) lockwasher 138489, (3) lock nut 685546R1, (1) tube 592682R1, (1) bolt 20768R1, (2) lockwasher 138542

1шт.

86900411

WASHER

3/8-NF x 1-1/4" C-Z type 2

2шт.

685546R1

NUT

LK-NUT, 3/8"-NF C-Z

2шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

10

592683R1

SPRING, notched arm tension

1шт.

11

592686R1

BUMPER, rubber

1шт.

12

592691R1

ROCKER, shock spg

1шт.

13

592690R1

SPRING, seat shock

1шт.

14

592692R91

SHOCK ABSORBER, seat

1шт.

685546R1

NUT

LK-NUT, 3/8"-NF C-Z

2шт.

592693R1

WASHER, absorber rubber

2шт.

592694R1

WASHER, absorber special

2шт.

15

592689R1

CUP, seat shock

1шт.

16

592688R11

CLEVIS, seat shock

1шт.

17

592687R91

SHOCK & SPRING, seat composed of: (1) clevis 592688R1, (1) cup 592689R1, (1) spring 592690R1, (1) rocker 592691R1, (1) shock 592692R91, (2) washer 592693R1, (2) washer 592694R1, (2) lock-nut 685546R1

1шт.

18

592685R93

FRAME, seat suspension

1шт.

103375

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8" C-Z type 2

10шт.

Not part of seat

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

Not part of seat

1шт.

19

ARM, plain (order 1-592684R91 arm) (NSS)

1шт.

592743R91

LUB-FITTING, special

1шт.

20

592684R91

ARM, suspension lower composed of: (1) arm (NSS), (2) bearing 592681R91, (1) fitting 592743R91, (2) bolt 181639, (2) lockwasher 138439, (3) lock nut 685546R1, (1) tube 592682R1, (1) bolt 20768R1, (2) lockwasher 138542

1шт.

181639

3/8-NF x 1-1/4" C-Z type 2

2шт.

685546R1

NUT

LK-NUT, 3/8"-NF C-Z

2шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

21

592679R2

POST, mounting bar "U"

1шт.

86900411

WASHER

3/8"-NF x 1-1/4" C-Z type 2

4шт.

685546R1

NUT

LK-NUT, 3/8"-NF C-Z

4шт.

LK-WASHER, 3/8" C-Z shakeproof

4шт.

22

592678R2

BAR, seat mounting

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

W/NUT, 1/2 x 1-1/4" C-Z type 2

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

23

592696R1

PLUG, button

2шт.

Indicates peculiar parts for Cushion Seat

1шт.
