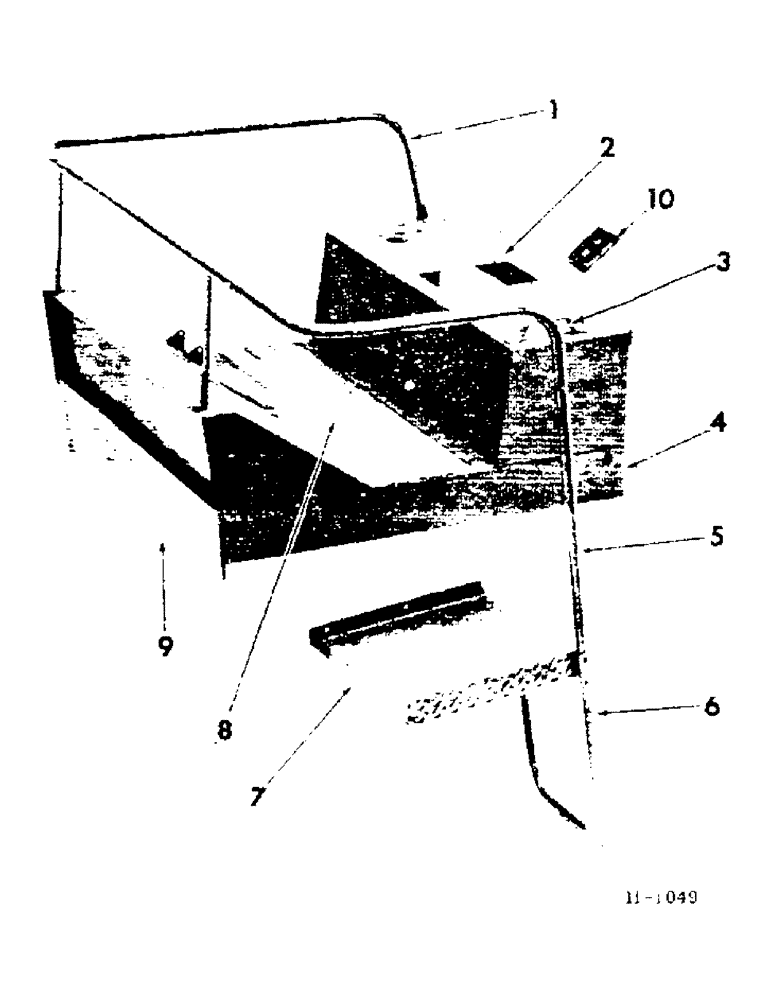

Запчасти Case IH 201 (E-015) - CHASSIS, OPERATORS PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

591842R11

RAIL, platform guard RH

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

W/NUT, 1/4 x 3/4" C-Z type 2

2шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

W/NUT, 5/16 x 5/8" C-Z crg

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

W/NUT, 3/8 x 1-1/2" C-Z type 2

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

BOX, seat support (prior to 1966 order 1-594186R91 box w/1-591839R2 strip 2-21737R1 bolts, 2-120214 lk-washer & 2-120376 nuts)

1шт.

2

594186R91

BOX, seat support (1966 & since)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

W/NUT, 3/6 x 7/8" C-Z type 2

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

W/NUT, 5/16 x 1/2" C-Z type 2

4шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

W/NUT, 5/16 x 5/6" C-Z crg

6шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

591841R1

STRIP

support handle

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

W/NUT, 5/16 x 5/8" C-Z crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

591822R11

BASE, platform LH shown

1шт.

4

591823R11

BASE, platform RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4" C-Z type 2

5шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

5

591844R11

RAIL, platform guard LH

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

W/NUT, 3/8 x 1-1/2" C-Z type 2

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

W/NUT, 3/8 x 2" C-Z type 2

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

591846R11

LADDER, operator's platform

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 3/8 x 3/4" C-Z crg

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

W/NUT, 3/8 x 2" C-Z type 2

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

691848R1

SECTION, platform step

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

BOLT W/NUT, 3/8 x 3/4" C-Z crg

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

8

591825R92

PLATFORM, operator's

1шт.

180016

SPRING

1/4 x 1/2" C-Z type 2

2шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

W/NUT, 1/4 x 1/2" C-Z type 2

4шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT W/NUT, 5/16 x 1/2" C-Z crg

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

591831R11

HOOD, platform front

1шт.

564791R1

SPRING NUT

1/4" special speed

4шт.

180016

SPRING

1/4 x 1/2" C-Z type 2

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

10

591839R2

STRIP, control lever stop (1966 & since)

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

W/NUT, 5/16 x 5/8" C-Z crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
