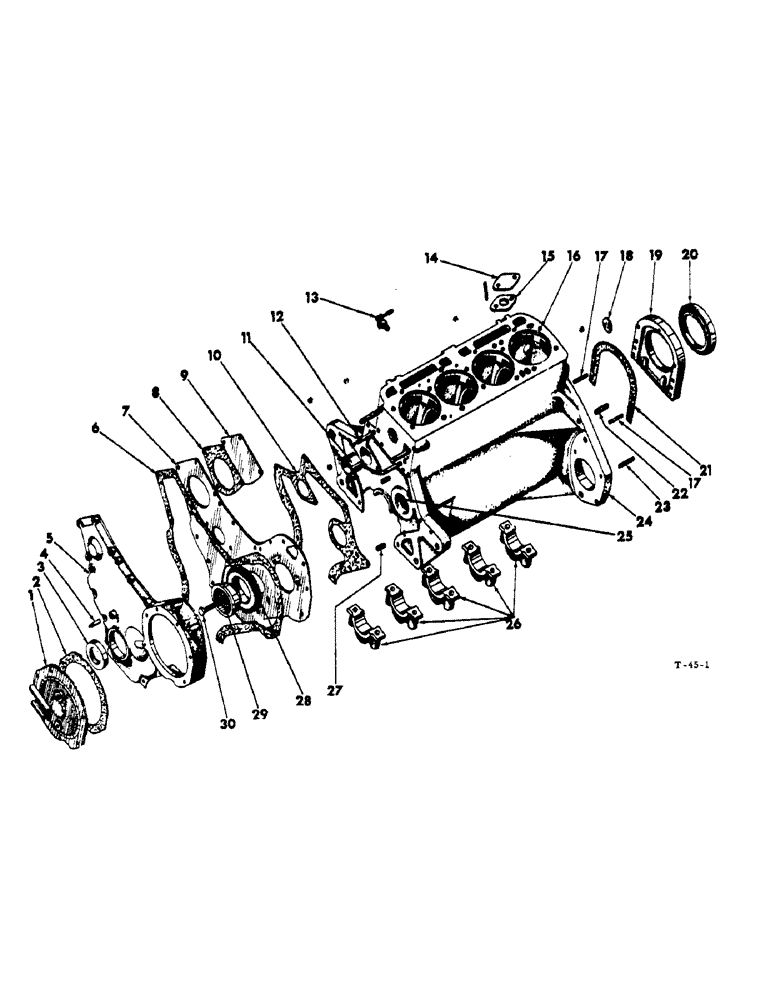

Запчасти Case IH 201 (A-016) - ENGINE CRANKCASE (10) - ENGINE

1

3040312R1

COVER, injection pump gear

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4" sq-hd pipe

1шт.

BOLT, 5/16 x 3/4" type 2

1шт.

BOLT, 5/16 x 2-1/2" type 2

6шт.

NUT, 5/16"

2шт.

LK-WASH, 5/16"

7шт.

2

703849R1

GASKET

pump gear cover

1шт.

3

703844R91

OIL RESERVOIR

OIL SEAL, crankshaft front

1шт.

4

712064R1

POINTER, timing

1шт.

5

3072302R91

COVER, crankcase front (includes 703844R91, oil seal & 712064R1, pointer) (opt w/3043217R21)

1шт.

5

3043217R21

COVER

crankcase front (includes 703844R91, oil seal & 712064R1, pointer) (opt w/3072302R91)

1шт.

BOLT, 5/16 x 1" type 2

5шт.

BOLT, 5/16 x 1-7/8" type 2

3шт.

LK-WASH, 5/16"

8шт.

6

708285R1

GASKET

crankcase front cover

1шт.

7

709901R11

PLATE

crankcase front

1шт.

3047230R1

SCREW

front plate

2шт.

703636R1

WASHER

plate bolt tab

1шт.

BOLT, 5/16 x 3/4" type 2

1шт.

8

703851R1

GASKET

hyd pump opening cover

1шт.

9

703850R1

COVER

hyd pump opening

1шт.

BOLT W/NUT, 5/16 x 1-7/8" type 2

3шт.

BOLT W/NUT, 5/16 x 2-1/8" type 2

1шт.

Q397

WASHER

WASH, 3/4 x 11/32 x 16 ga

1шт.

LK-WASH, 5/16"

4шт.

10

709903R1

GASKET

crankcase front plate

1шт.

11

703827R1

CAMSHAFT BEARING

BUSHING, camshaft front

1шт.

11

703828R1

CAMSHAFT BEARING

BUSHING, camshaft center

1шт.

11

703829R1

CAMSHAFT BEARING

BUSHING, camshaft rear

1шт.

12

703832R1

STUD

water pump

4шт.

13

106794

VALVE

TAP, water drain (opt w/707888R92)

1шт.

13

707888R92

COCK

TAP, water drain (opt w/106794)

1шт.

14

3042468R1

COVER

hourmeter drive opening

1шт.

BOLT, 1/4 x 1/2" type 2

2шт.

LK-WASH, 1/4"

2шт.

15

3042467R1

GASKET

hourmeter opening cover

1шт.

16

751834R1

INSERT

7/16" thread crankcase

16шт.

17

141223

DOWEL,5/16" x 1"

PIN, oil seal retainer dowel

2шт.

18

172578

PLUG,Exp, 1 3/4"

1-3/4" expansion

1шт.

19

708904R1

RETAINER

crankshaft oil seal

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

oil seal retainer

7шт.

LK-WASH, 5/16"

7шт.

20

3072092R91

OIL SEAL

OIL SEAL, crankshaft rear

1шт.

21

708907R1

GASKET

rear oil seal retainer

1шт.

22

141287

DOWEL,1/2" x 1 1/2"

PIN, crankcase rear dowel

2шт.

23

703877R1

STUD

starting motor

1шт.

24

3040912R41

CRANKCASE

ASSEMBLY, engine

1шт.

Composed of: (10) bolt 3061211R1, (1) bushing 703827R1, (1) bushing 703828R1, (1) bushing 703829R1, (4) cap 706491R2, (1) cap 708902R2, (1) crankcase (NSS), (1) insert 751610R1, (16) insert 751834R1, (2) pin 141223, (2) pin 141244, (2) pin 141287, (1) plug 444691, (3) plug 103883, (4) stud 703832R1, (1) stud 703877R1, (1) tap 106794, (1) tube 751826R1, (10) washer 3061325R1

1шт.

444691

PLUG

1/4" automotive pipe

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

172578

PLUG,Exp, 1 3/4"

1-3/4" expansion

1шт.

25

751610R1

INSERT

idler gear bolt lock

1шт.

26

708902R2

BEARING CAP,2.273" ID x 1.1013"

CAP, crankshaft brg rear

1шт.

26

706491R2

CAP

crankshaft brg front & center

4шт.

3061211R1

BOLT,1/2" - 13 x 2.875"

crankshaft brg cap

10шт.

3061325R1

WASHER

WASH, brg cap bolt

10шт.

27

37-1616

DOWEL,3/8" x 1"

PIN, crankcase front dowel

1шт.

28

703852R1

GEAR

idler

1шт.

29

703853R11

SHAFT

gear (includes 932039R1, pin)

1шт.

932039R1

LOCK PIN,M3 x 16, Slotted

PIN, 1/8 x 5/8" coiled-spg

1шт.

30

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

1/2-NF x 1-7/8" type 2

1шт.
