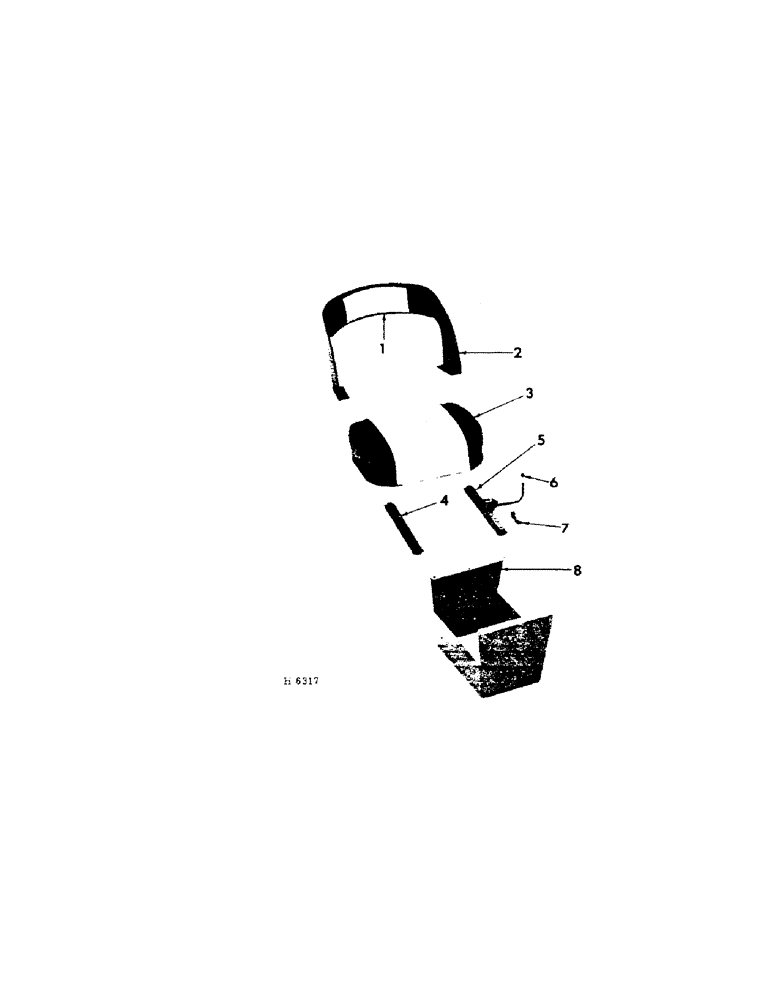

Запчасти Case IH 201 (A-061) - OPERATORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

371585R93

SEAT, operator's (includes parts listed, unless otherwise noted)

1шт.

BOLT W/NUT, 5/16 x 5/8" mach

4шт.

Not part of operator's seat

1шт.

LK-WASHER, 5/16"

4шт.

Not part of operator's seat

1шт.

1

371627R93

CUSHION

seat back

1шт.

2

371626R91

SUPPORT, seat back

1шт.

BOLT, 3/8 x 1-1/4" cd-pltd type 2

2шт.

LK-WASHER, 3/8" cd-pltd

2шт.

3

371625R93

CUSHION

seat

1шт.

154000

NET WRAP,Cross Fil Hd, 5/16" - 18 x 1 1/4"

SCREW, 5/16 x 1-1/4" cd-pltd rec-fil-hd

4шт.

257185R1

LK-WASHER, 5/16" shakeproof

4шт.

4

371629R91

RAIL, seat slide RH

1шт.

BOLT W/NUT, 5/16 x 5/8" mach

2шт.

Not part of operator's seat

1шт.

LK-WASHER, 5/16" cd-pltd

2шт.

Not part of operator's seat

1шт.

5

371628R91

RAIL, seat slide LH

1шт.

BOLT W/NUT, 5/16 x 5/8" mach

2шт.

Not part of operator's seat

1шт.

LK-WASHER, 5/16"

2шт.

Not part of operator's seat

1шт.

6

148689

KNOB, adjusting handle

1шт.

7

371630R1

GUIDE, handle

1шт.

BOLT, 3/8 x 1-1/4" cd-pltd type 2

2шт.

LK-WASHER, 3/8" cd-pltd

2шт.

8

612005R91

SUPPORT, seat

1шт.

Not part of operator's seat

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

3шт.

Not part of operator's seat

1шт.

BOLT W/NUT, 3/8 x 1-1/8" crg

1шт.

Not part of operator's seat

1шт.

LK-WASHER, 3/8"

1шт.

Not part of operator's seat

1шт.
