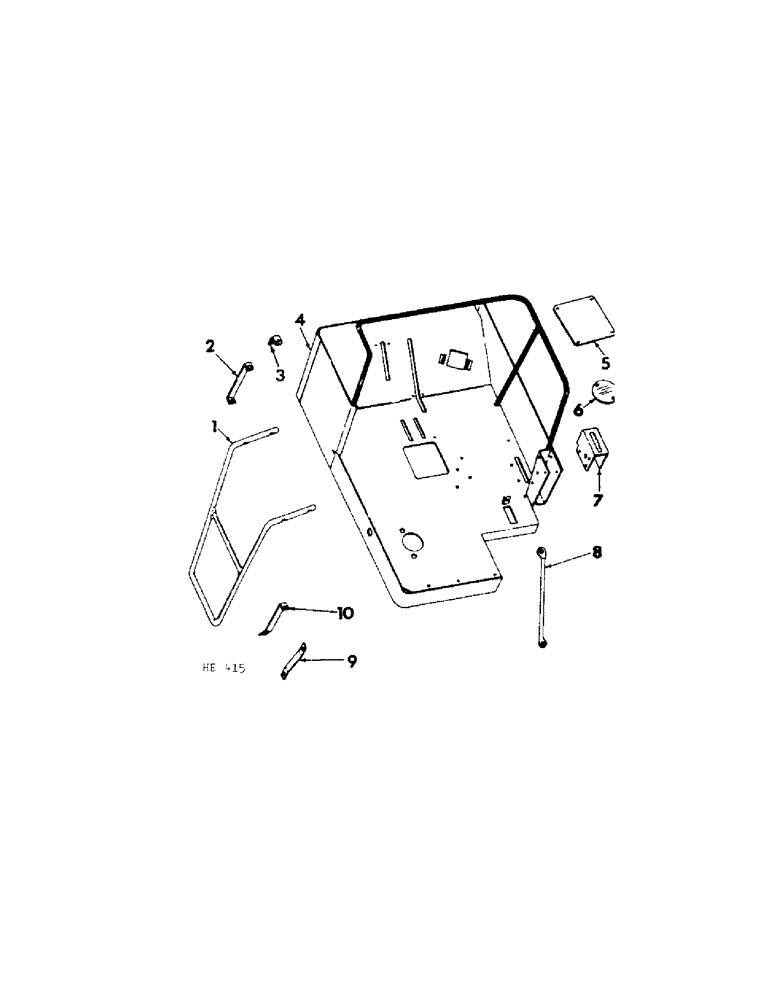

Запчасти Case IH 201 (A-060) - OPERATORS PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

611895R11

LADDER, operator's platform

1шт.

BOLT W/NUT, 3/8 x 1-7/8" mach

4шт.

Q1597

WASHER

WASH, 13/32 x 3/4 x 16 ga

4шт.

LK-WASH, 3/8"

4шт.

2

611868R1

SUPPORT, platform front RH

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

LK-WASH, 3/8"

2шт.

3

611848R1

BRACKET, brace lk pawl pivot

2шт.

135331

RIVET,Truss Hd, 1/4" x 5/8"

1/4 x 9/16' truss-hd

2шт.

4

612009R92

PLATFORM, operator's

1шт.

611977R1

SCREW, no. 10 x 1/2" type 2 cd-pltd drive

4шт.

BOLT W/NUT, 5/16 x 3/4" crg

3шт.

BOLT, 3/8 x 1-1/2" mach

1шт.

BOLT W/NUT, 3/8 x 2" sq-hd mach

1шт.

NUT, 3/8"

2шт.

LK-WASH, 5/16"

3шт.

5

611870R1

COVER, maintenance hole

1шт.

BOLT, 1/4 x 1/2" mach

4шт.

LK-WASH, 1/4"

4шт.

6

611867R1

COVER, oil reservoir, Serial Range: (prior-H3780)

1шт.

BOLT, 1/4 x 1/2" mach

2шт.

LK-WASH, 1/4"

2шт.

7

611871R1

SECTOR, platform throttle

1шт.

SCREW, 1/4 x 1/2" slt-rd-hd w/nut

4шт.

LK-WASH, 1/4"

4шт.

8

611869R2

BRACE, platform rear

1шт.

BOLT W/NUT, 3/8 x 1-1/8" crg

1шт.

BOLT W/NUT, 7/16 x 1-1/8" mach

1шт.

Q1597

WASHER

WASH, 13/32 x 3/4 x 16 ga

1шт.

W6652

WASHER

WASH, 15/32 x 1 x 16 ga

1шт.

LK-WASH, 3/8"

1шт.

LK-WASH, 7/16"

1шт.

9

607391R1

STIFFENER, control support (H1922 & up)

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

LK-WASH, 3/8"

2шт.

10

607392R1

STIFFENER, deck (H1922 & up)

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

LK-WASH, 3/8"

1шт.

C-PIN, 5/32 x 1-1/2"

1шт.
