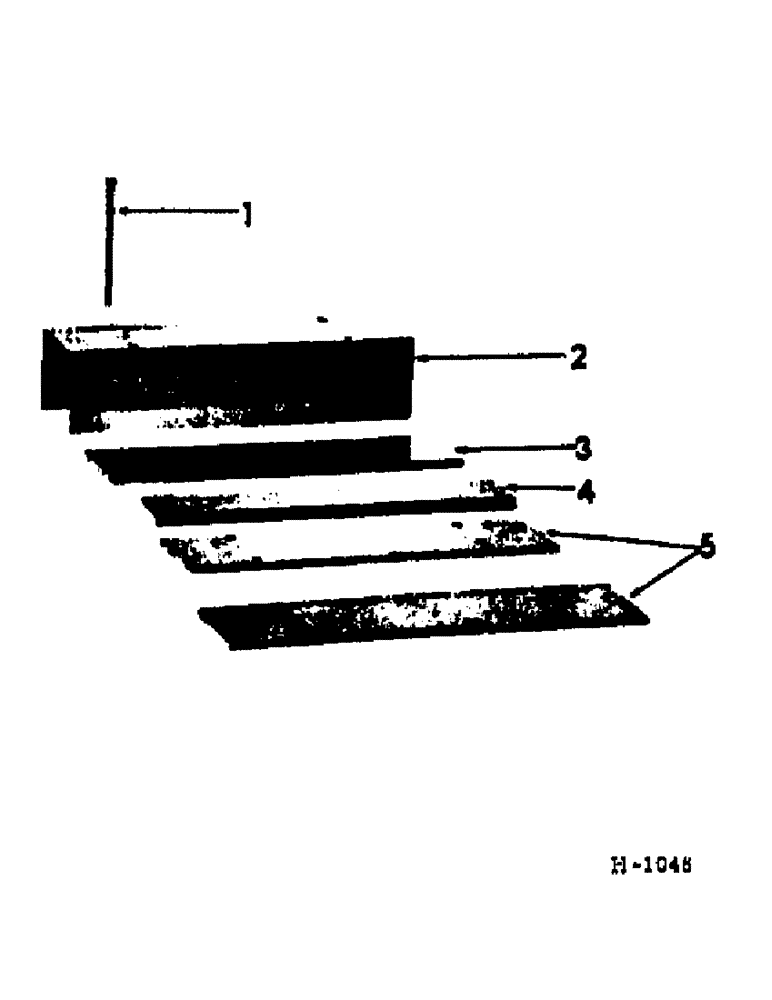

Запчасти Case IH 201 (E-060) - ATTACHMENT AND SERVICE PACKAGE, CASTER WHEEL WEIGHT (88) - ACCESSORIES

1

592193R1

BOLT, counterweight clamp (16-1/2 ft)

4шт.

1

593356R1

BOLT, counterweight clamp (10-1/2 & 13-1/2 ft)

1шт.

1

593357R1

BOLT, counterweight clamp (19-1/2 ft)

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

2

592192R2

SHIELD, counterweight

1шт.

3

592190R2

PLATE, counterweight top

1шт.

4

59194R2

BAR, counterweight (3-10-1/2 ft & 13-1/2 ft) (5-16-1/2 ft) (7-19-1/2 ft)

1шт.

5

592191R2

PLATE, counterweight support

2шт.

584752R91

CONVERSION PACKAGE (Safety flashing light

1шт.

Composed of: (1) clamp 394133R1, (1) hose 394134R1, (1) flasher 394132R91, (1) cable 394473R91, (1) clip 427026, (1) switch 62801DC, (1) washer 21053R1, (1) cable 618891R91, (1) cable 594580R91, (1) cable 594590R91, (1) grommet 704700R1, (1) bracket 594588R1, (1) clamp 120522, (1) nut 124934, (1) gasket 394262R1, (1) bolt 180018, (1) nut 120375, (1) lockwasher 120380, (1) light 304129R91 or 598864R91

1шт.
