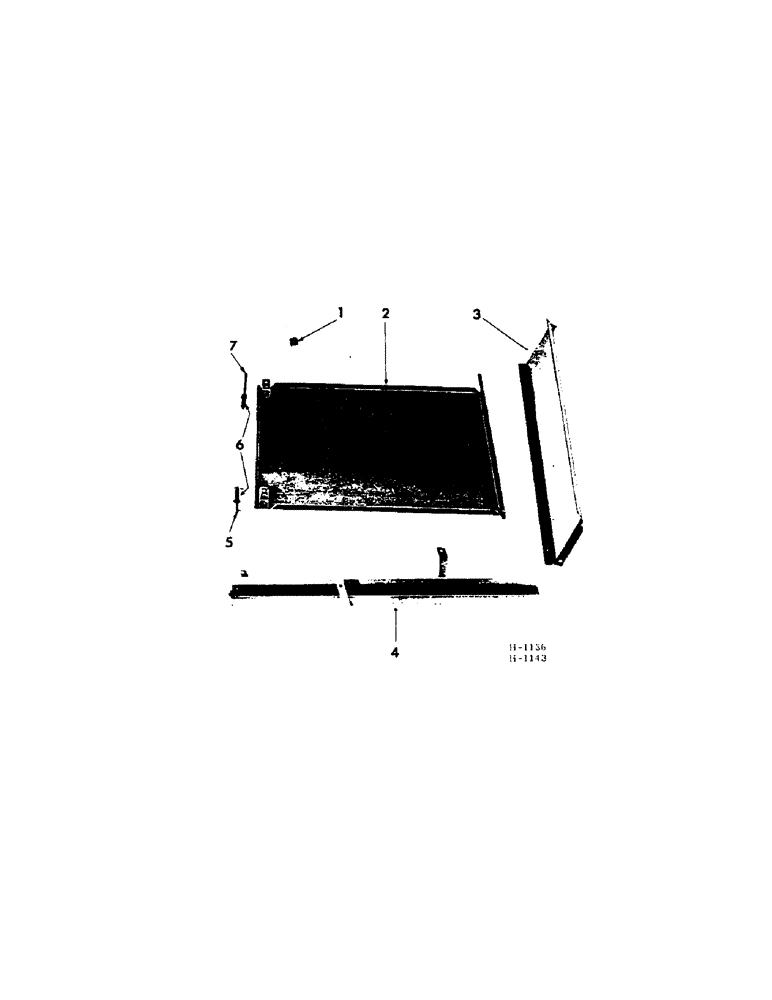

Запчасти Case IH 201 (E-059) - ATTACHMENTS, DRIVE GUARD ATTACHMENT, NOT APPLICABLE WITH MACHINES EQUIPPED WITH HAY CONDITIONERS (88) - ACCESSORIES

1

592438R1

ANGLE, guard lock pin

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

W/NUT, 5/16 x 7/8" C-Z type 2

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

592432R11

GUARD, chassis pan

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

3

592439R1

GUARD, platform drive shaft (regular equipment for machines with hay conditioner attachment)

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

W/NUT, 5/16 x 5/8" C-Z crg

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

592440R11

GUARD, platform drive

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

W/NUT, 7/16 x 1" C-Z type 2

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 5/16 x 3/4" C-Z crg

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

W/NUT, 5/16 x 3/4" C-Z type 2

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

5

592437R1

PIN, guard lock RH

1шт.

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

469668R1

WASHER

C-Z WASHER, 13/32 x 3/4 x 16 ga

1шт.

6

M296

SPRING

lock pin

2шт.

7

592436R1

PIN, guard lock LH

1шт.

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

469668R1

WASHER

C-Z WASHER, 13/32 x 3/4 x 16 ga

1шт.
