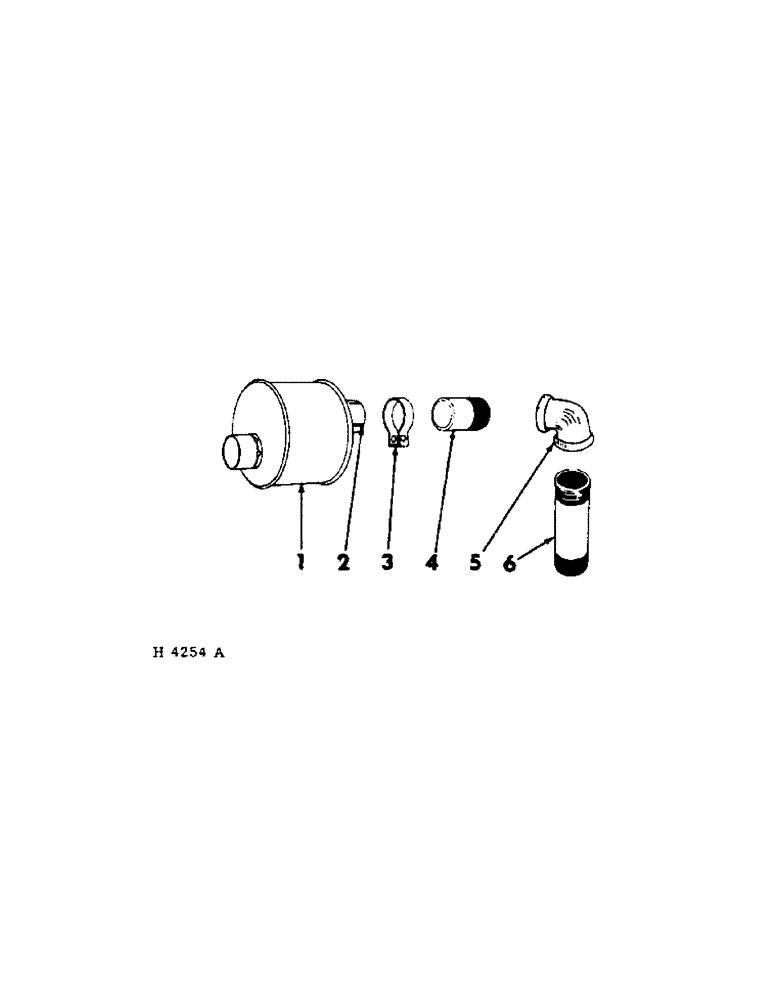

Запчасти Case IH 201 (A-015) - EXHAUST AND MUFFLER, OLD STYLE (10) - ENGINE

1

MUFFLER, exhaust (when equipped w/offset inlet & outlet muffler, order 1-608133R1, clamp & 1-607022R91, muffler)

1шт.

1

607022R91

MUFFLER

exhaust (w/inline inlet & outlet)

1шт.

2

611437R1

SPACER

SLEEVE, muffler (prior to machine serial no. H3898)

1шт.

3

357758R1

CLAMP, muffler (opt w/613531R1) (prior to machine serial no. H3898)

1шт.

BOLT W/NUT, 1/2-NF x 1-1/8" type 2

1шт.

LK-WASHER, 1/2"

1шт.

3

613531R1

CLAMP, muffler (opt w/357758R1) (prior to machine serial no. H3898)

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8" special

1шт.

LK-WASHER, 3/8" special

1шт.

3

608133R1

CLAMP

muffler (machine serial no. H3898 & up)

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8" special

1шт.

LK-WASHER, 3/8"

1шт.

4

610872R1

PIPE

NIPPLE, 1-1/2 x 3" exhaust pipe

1шт.

5

187558

ELBOW,90 Degree, 1 1/2" NPT

1-1/2" - 90deg. pipe

1шт.

6

443942

NIPPLE, 1-1/2 x 8-1/2" manifold

1шт.
