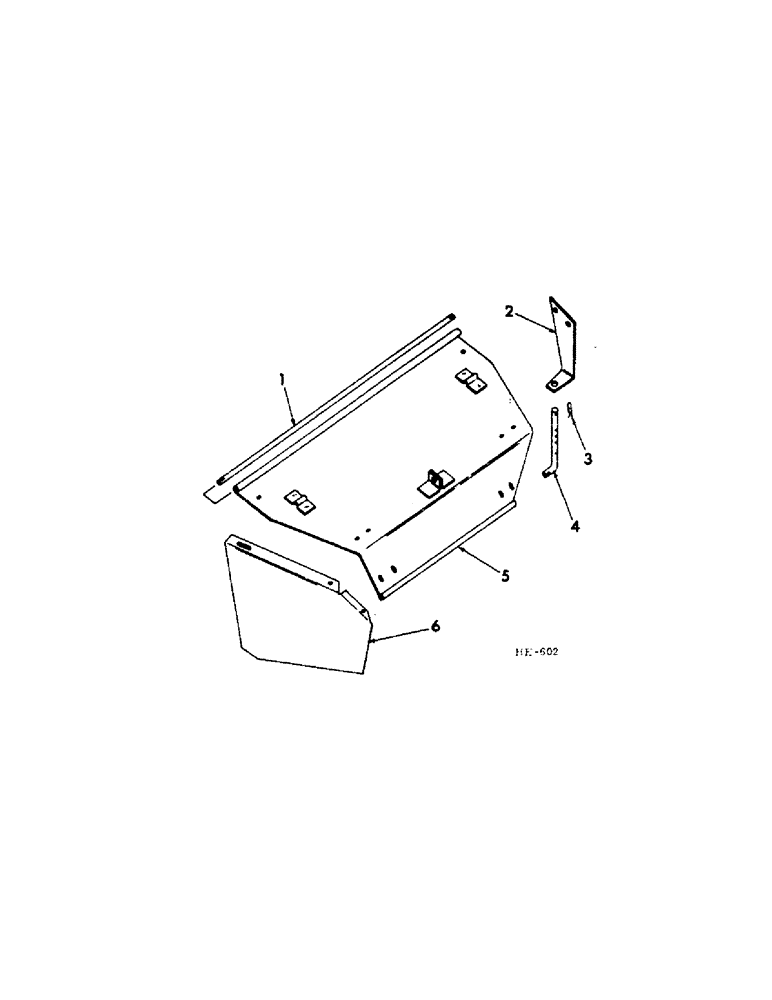

Запчасти Case IH 201 (F-009) - HAY CONDITIONER, REAR DEFLECTOR (58) - ATTACHMENTS/HEADERS

1

593348R1

ROD, rear deflector pivot

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

2

593345R1

SUPPORT, adjusting rod

1шт.

Prior to serial number H-5074

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

W/NUT, 7/16" x 1" C-Z type 2

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

3

517843R1

COTTER PIN

PIN, Q A cotter

1шт.

2, Prior to serial number H-5074

1шт.

1, Serial number H-5074 and up

1шт.

4

59346R1

ROD, adjusting (prior to serial no. H-3313)

1шт.

4

607365R1

ROD, adjusting (serial no. H-3313 & up)

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

5

593347R11

DEFLECTOR, rear

1шт.

Prior to serial number H-5074

1шт.

5

597772R1

DEFLECTOR, rear show

1шт.

Serial number H-5074 and up

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

W/NUT, 5/16 x 1/2" C-Z type 2

6шт.

134238R1

WASHER

13/32 x 1 x 16 ga C-Z

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

6

593349R1

DEFLECTOR, side LH

1шт.

Prior to serial number H-5074

1шт.

6

597775R1

DEFLECTOR, side LH shown

1шт.

Serial number H-5074 and up

1шт.

6

593350R1

DEFLECTOR, side RH

1шт.

Prior to serial number H-5074

1шт.

6

597776R1

DEFLECTOR, side RH

1шт.

Serial number H-5074 and up

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

W/NUT, 5/16 x 1/2" C-Z type 2

6шт.

134238R1

WASHER

15/32 x 1 x 16 ga C-Z

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
