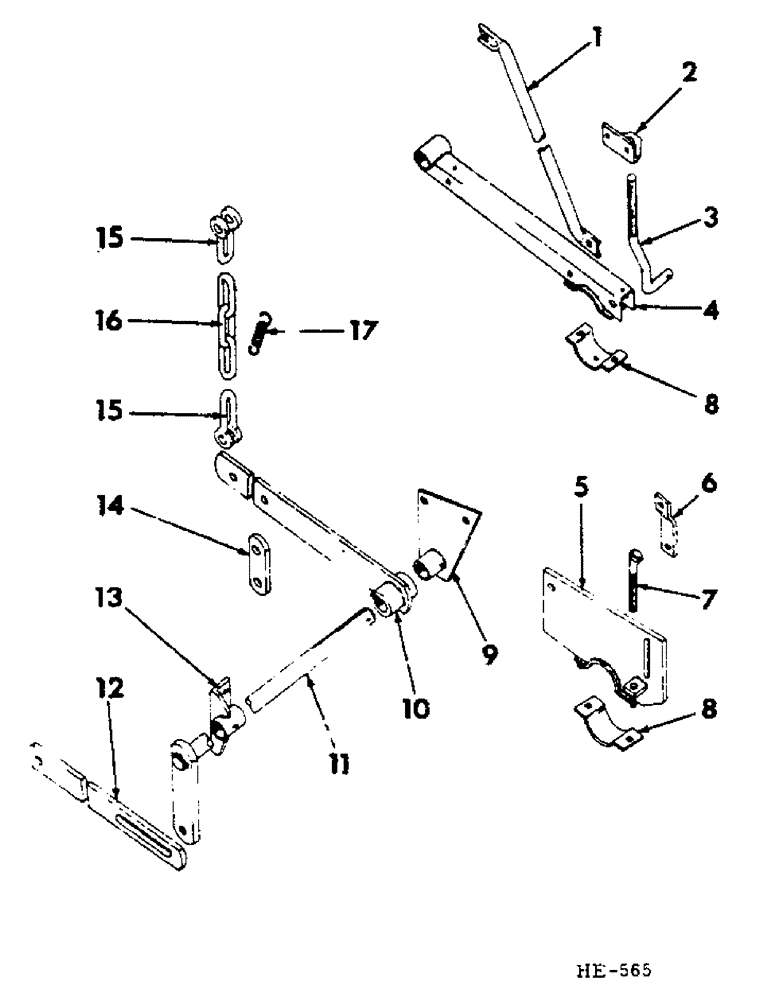

Запчасти Case IH 201 (F-008) - HAY CONDITIONER, HAY CONDITIONER LIFT MECHANISM (58) - ATTACHMENTS/HEADERS

1

593282R1

BRACE, support arm

1шт.

Prior to serial number H-5074

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

W/NUT, 3/8 x 3/4" C-Z type 2

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

593277R1

ANGLE, adjusting anchor

2шт.

Prior to serial number H-5074

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

W/NUT, 3/8 x 1" C-Z type 2

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

593278R2

ROD, upr frame adjustment

2шт.

Prior to serial number H-5074

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z

4шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

4

593279R11

ARM, support

2шт.

Prior to serial number H-5074

1шт.

271293

PULLEY

FITTING, 5/16" lub

2шт.

5

597749R1

SUPPORT, frame rear LH shown

1шт.

Serial number H-5074 and up

1шт.

5

597750R1

SUPPORT, frame rear RH

1шт.

Serial number H-5074 and up

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

W/NUT, 1/2 x 1-1/4" C-Z type 2

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

W/NUT, 1/2 x 1-3/4" C-Z type 2 (LH)

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

W/NUT, 1/2 x 2" C-Z type 2 (RH)

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (On eye bolts) 1/2"-13, G5

1шт.

6

595895R2

BRACE, adj eyebolt RH

1шт.

Serial number H-5074 and up

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

W/NUT, 1/2 x 1-1/4" C-Z type 2

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

612375R2

BOLT,1/2" - 13 x 4 1/8"

EYEBOLT, frame support

2шт.

Serial number H-5074 and up

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

8

593280R1

CLAMP, frame pivot tube

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

W/NUT, 7/16 x 1" C-Z type 2

4шт.

Prior to serial number H-5074

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16" C-Z (note B)

4шт.

Serial number H-5074 and up

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

Prior to serial number H-5074

1шт.

Serial number H-5074 and up

1шт.

9

593326R91

SUPPORT, frame LH shown

1шт.

9

593327R91

SUPPORT, frame RH

1шт.

271293

PULLEY

FITTING, 5/16" lub

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

W/NUT, 1/2 x 1-1/4" C-Z type 2

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

10

593336R11

ARM, lift

2шт.

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2" tapered gib-hd

2шт.

11

593331R91

ROCKSHAFT, lift LH

1шт.

Prior to serial number H-5074

1шт.

11

593332R91

ROCKSHAFT, lift RH

1шт.

Prior to serial number H-5074

1шт.

11

597768R1

ROCKSHAFT, lift LH shown

1шт.

Serial number H-5074 and up

1шт.

11

597760R1

ROCKSHAFT, lift RH

1шт.

Serial number H-5074 and up

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

4шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

12

593335R1

BAR, rockshaft connecting

2шт.

612378R1

SPACER, connecting bar

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

W/NUT, 5/8 x 2" C-Z type 2

2шт.

NLS

NO LONGER SERVICED

BOLT W/NUT, 5/8 x 1-3/4" C-Z type 2

2шт.

464623R1

WASHER

21/32 x 1-3/4 x 11 ga C-Z

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

593329R91

SUPPORT, outer lift rockshaft

2шт.

271293

PULLEY

FITTING, 5/16" lub

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd, w/nut

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

14

593338R1

BAR, conditioner lift

2шт.

612379R1

SPACER

lift bar

4шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

W/NUT, 1/2 x 1-3/4" C-Z type 2

2шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

W/NUT, 1/2 x 2-1/4" C-Z crg

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

15

455369R2

CLEVIS

lift chain

4шт.

NA141

AXLE PIN,1/2" x 1 7/8"

PIN, 1/2 x 1-7/8" std-hd dld

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), (Lower) 3/16" x 1"

2шт.

517843R1

COTTER PIN

PIN, Q.A. C (upper)

2шт.

16

593339R91

CHAIN, height adjustment

2шт.

17

37AC

SPRING

chain retaining

2шт.
