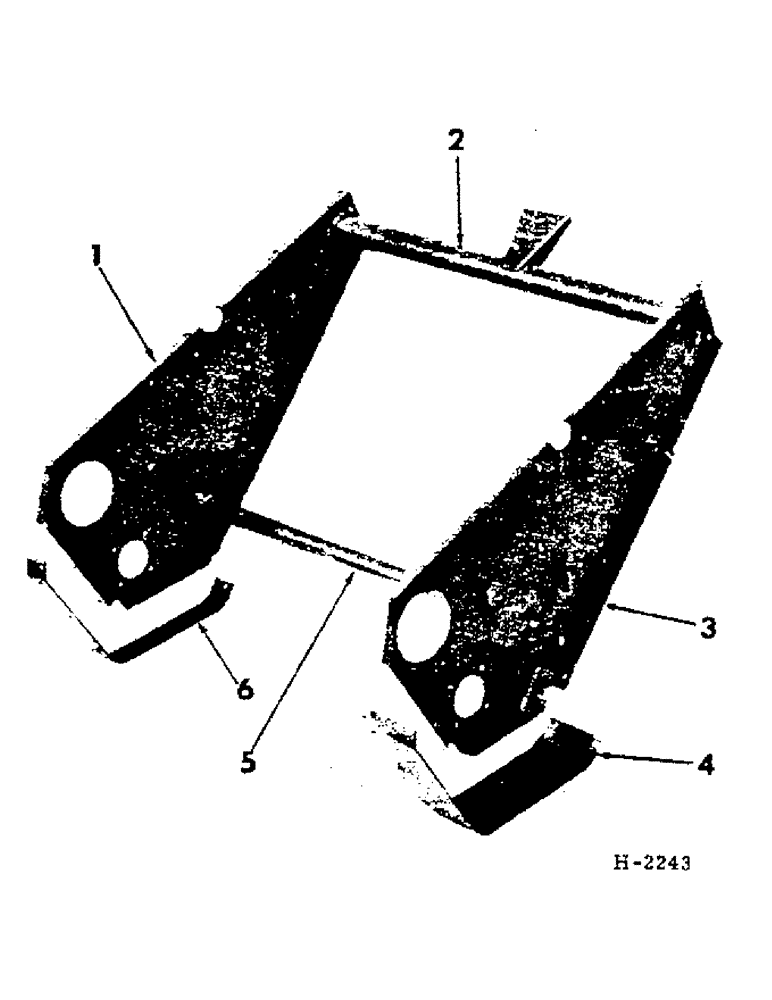

Запчасти Case IH 201 (F-007) - HAY CONDITIONER, MAIN FRAME (58) - ATTACHMENTS/HEADERS

1

593286R21

SIDE, frame RH

1шт.

Prior to serial number H-5074

1шт.

1

597755R1

SIDE, frame RH

1шт.

Serial number H-5074 and up shown

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" C-Z crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

593283R11

TUBE, frame pivot 42.06" Length

1шт.

Prior to serial number H-5074

1шт.

2

597752R1

TUBE, frame pivot 42.06" Length

1шт.

Serial number H-5074 and up shown

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

W/NUT, 3/8 x 1-1/4" C-Z crg

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

593285R21

SIDE, frame LH

1шт.

Prior to serial number H-5074

1шт.

3

597754R1

SIDE, frame LH

1шт.

Serial number H-5074 and up shown

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" C-Z crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

593302R2

REINFORCEMENT, sole LH

1шт.

Prior to serial number H-5074

1шт.

4

597760R1

REINFORCEMENT, sole LH

1шт.

Serial number H-5074 and up shown

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 3/8 x 3/4" C-Z crg

1шт.

6, Prior to serial number H-5074

1шт.

2, Serial number H-5074 and up shown

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

W/NUT, 3/8 x 7/8" C-Z type 2

1шт.

Serial number H-5074 and up shown

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4" C-Z type 2

3шт.

Serial number H-5074 and up shown

1шт.

619856R1

WASHER

C-Z 13/32 x 1 x 16 ga C-Z

1шт.

Serial number H-5074 and up shown

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

593300R12

PIPE, lower frame brace

1шт.

6

593303R2

BRACE, sole RH

1шт.

Prior to serial number H-5074

1шт.

6

597761R1

BRACE, sole RH

1шт.

Serial number H-5074 and up shown

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 3/8 x 3/4" C-Z crg

1шт.

6, Prior to serial number H-5074

1шт.

2, Serial number H-5074 and up shown

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

W/NUT, 3/8 x 7/8" C-Z type 2

1шт.

Serial number H-5074 and up shown

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

W/NUT, 3/8 x 3/4" C-Z type 2

3шт.

Serial number H-5074 and up shown

1шт.

619865R1

WASHER

13/32 x 1 x 16 ga C-Z

6шт.

Serial number H-5074 and up shown

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.
