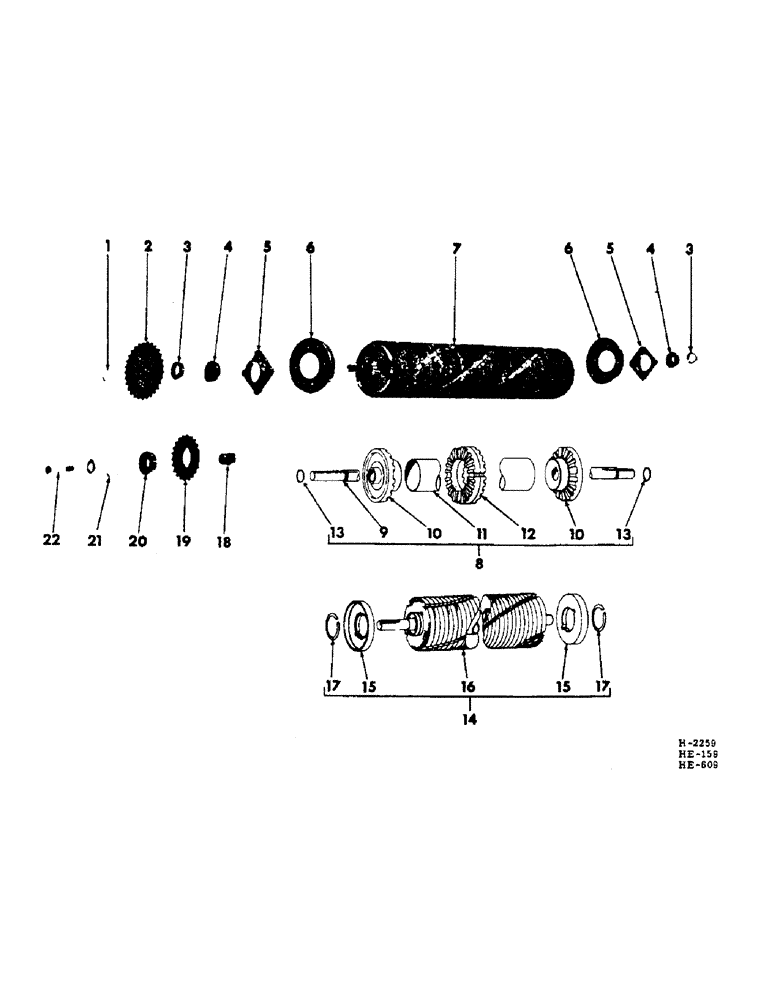

Запчасти Case IH 201 (F-006) - HAY CONDITIONER, LOWER HAY CONDITIONER RUBBER ROLL ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

152450R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

2

607348R12

SPROCKET, lower roll drive (prior to serial no. H-5074)

1шт.

113879

KEY

5/16 x 1-1/4" Woodruff

1шт.

2

595927R91

SPROCKET ASSY.

SPROCKET, lower roll drive (serial no. H-5074 & up)

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" tapered gib-hd

1шт.

3

517645R11

COLLAR

W/SCREW, locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

1шт.

4

611583R91

BALL BEARING

BEARING, lower roll

2шт.

5

607332R1

HOUSING

lower roll brg

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2" C-Z type 2

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

6

607333R11

SHROUD, lower roll

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2" C-Z type 2

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

7

ROLL ASSEMBLY, conditioner (prior to serial no. H-5074) (order 1-598314R91 roll assembly, 1-595927R91 roll assembly, 1-595927R91 sprocket & 1-Q3947 key

1шт.

137945R1

PIN, roll assembly

2шт.

8

ROLL ASSEMBLY, conditioner (serial no. H-5074 to H5496) (order 1-598314R91 roll assembly)

1шт.

9

597763R1

SHAFT, conditioner roller (serial no., Serial Range: H-5074-H-5496)

1шт.

Q55

KEY,3/8" Sq x 2", Par

3/8" sq x 2"

2шт.

10

595914R1

CAP, roller end (serial no., Serial Range: H-5074-H-5496)

2шт.

11

597764R1

TUBE, conditioner roll (serial no. H-5074 to H-5496) 4" ID, 40634" OD, 38.88" Length

1шт.

12

595916R1

ROLLER, conditioner rubber (serial no., Serial Range: H-5074-H-5496)

28шт.

13

595917R1

RING, conditioner cap retaining (serial no., Serial Range: H-5074-H-5496)

2шт.

14

598314R91

ROLL ASSEMBLY, conditioner (serial no. H-5497 & up), composed of (2) cap 598317R1, (96) disk 598316R1, (2) ring 598318R1

1шт.

15

598317R1

CAP

roller end (serial no. H-5497 & up)

1шт.

16

598316R1

DISC

DISK, conditioner rubber (serial no. H-5497 & up)

96шт.

17

598318R1

RING, SNAP

RING, conditioner cap retaining (serial no. H-5497 & up)

2шт.

18

592062R1

BUSHING

idler sprocket brg

1шт.

19

593323R11

SPROCKET ASSY.

SPROCKET, 22T idler

1шт.

20

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, idler sprocket (opt w/608697R91)

1шт.

20

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

idler sprocket (opt w/584148R91)

1шт.

21

512889R1

RING

brg retainer

1шт.

22

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3" C-Z type 2 bolt

1шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga C-Z

1шт.

22765R1

WASHER

21/32 x 1-1/2 x 22 ga C-Z

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
