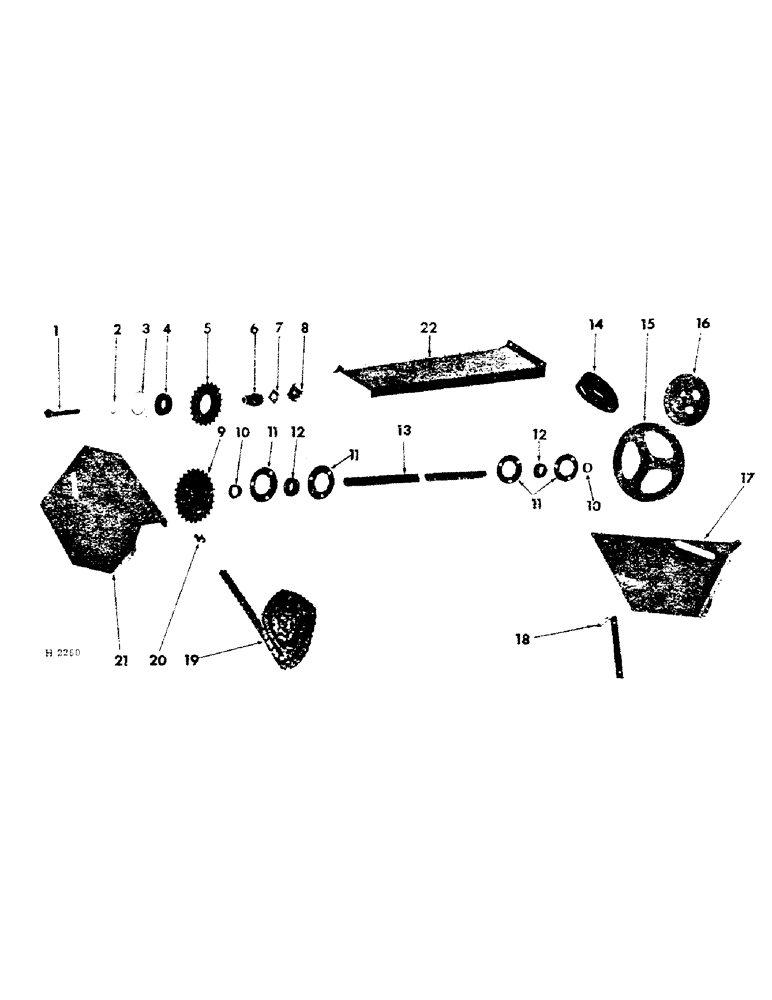

Запчасти Case IH 201 (F-005) - HAY CONDITIONER, HAY CONDITIONER DRIVE PARTS (58) - ATTACHMENTS/HEADERS

1

21722R1

BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 5

sprocket mounting

1шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga C-Z

2шт.

22765R1

WASHER

21/32 x 1-1/2 x 22 ga C-Z

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

26540D

RING, SNAP

RING, brg bushing retaining

1шт.

3

512889R1

RING

brg retaining

1шт.

4

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

tightener sprocket (opt w/584148R91)

1шт.

4

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, tightener sprocket (opt w/608697R91)

1шт.

5

593323R11

SPROCKET ASSY.

SPROCKET, 22 T chain tightener

1шт.

6

593322R1

BUSHING, tightener sprocket

1шт.

22765R1

WASHER

21/32 x 1-1/2 x 22 ga C-Z

1шт.

7

613200R1

WASHER, lock-out

1шт.

8

593321R11

BRACKET, tightener

1шт.

9

593319R11

SPROCKET, 26T jackshaft driven

1шт.

Q5023

KEY,5/16" Sq x 2 1/4", Par

5/16 x 2-1/4" sq

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

10

613943R21

COLLAR

W/SCREW, locking (use w/592703R91 bearing)

2шт.

10

557117R11

COLLAR

COLLAR W/SCREW, locking (use w/566634B91 bearing)

2шт.

10

609958R11

COLLAR

W/SCREW, locking (use w/609957R91 bearing)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt

2шт.

11

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, jackshaft brg

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

W/NUT, 3/8 x 1-1/4" C-Z type 2

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

12

592703R91

BEARING

jackshaft (use w/613943R21 collar)

2шт.

12

566634R91

BEARING

jackshaft (use w/557117R11 collar)

2шт.

12

609957R91

BEARING

jackshaft (use w/609958R11 collar)

2шт.

13

593318R1

SHAFT, drive jack

1шт.

14

593317R1

V-BELT 0.88" W x 71.00" L, Jackshaft drive (Prior to serial no. H-3313) 0.88" W x 71.00" L

1шт.

14

596595R1

V-BELT,0.88" W x 67.56" L

Jackshaft drive (Serial no. H-3313 & up) 0.88" W x 67.56" L

1шт.

15

593316R1

PULLEY, jackshaft drive

1шт.

Q5023

KEY,5/16" Sq x 2 1/4", Par

5/16 x 2-1/4" sq

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

16

593315R1

PULLEY, main drive

1шт.

17

593341R1

SHIELD, main drive

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

W/NUT, 5/16 x 5/8" C-Z type 2

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

W/NUT, 5/16 x 1/2" C-Z type 2

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

593340R1

REINFORCEMENT, shield support

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

W/NUT, 5/16 x 7/8" C-Z type 2

2шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

CHAIN, no. 60, 3/4" pitch, light side bar type (for service order 1-611362R91 10 ft length of chain, reduce to 137 links and add 1-611361R91 connecting link)

1шт.

20

611361R91

DRAG LINK

LINK, connecting

1шт.

21

593351R1

SHIELD, roll drive (prior to serial no H-5074)

1шт.

21

598552R1

SHIELD, roll drive (serial no. H-5074 & up)

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2" C-Z crg

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

592439R1

GUARD, platform drive shaft

1шт.

19428R1

BOLT W/NUT, 5/16 x 5/8" C-Z crg

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
