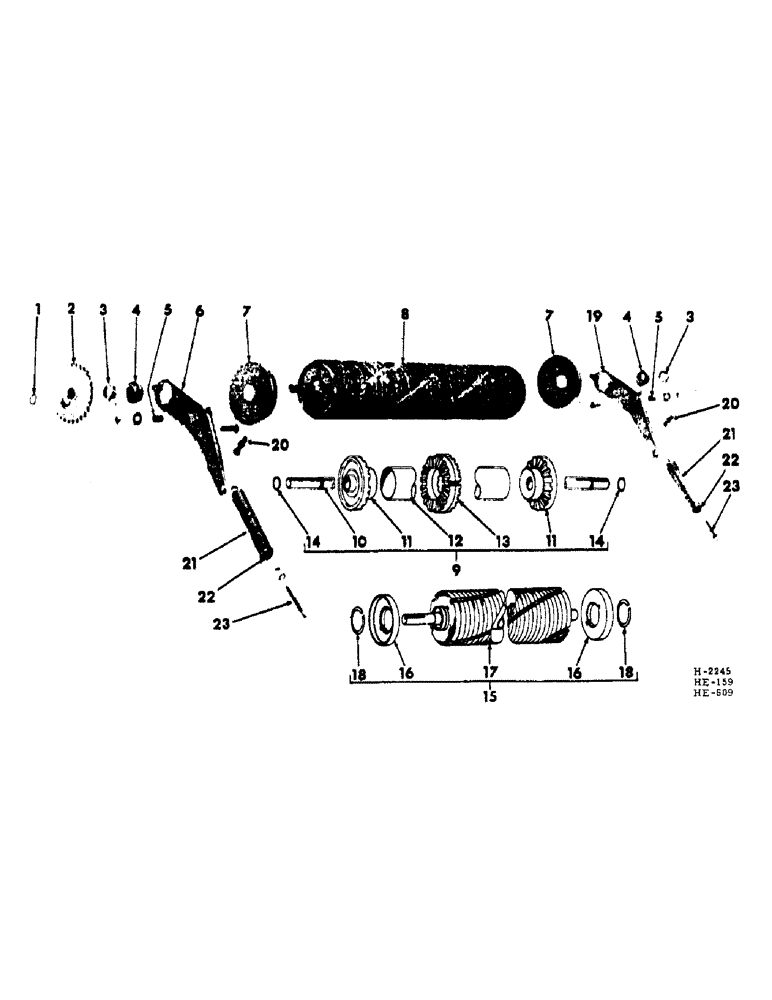

Запчасти Case IH 201 (F-004) - HAY CONDITIONER, UPPER HAY CONDITIONER RUBBER ROLL ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

152450R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

2

607348R12

SPROCKET, upper roll drive (prior to serial no. H-5074)

1шт.

113879

KEY

5/16 x 1-1/4" Woodruff

1шт.

2

595927R91

SPROCKET ASSY.

SPROCKET, upper roll drive (serial no. H-5074 & up)

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" tapered gib-hd

1шт.

3

517645R11

COLLAR

W/SCREW, locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

1шт.

4

611583R91

BALL BEARING

BEARING, upr roll

2шт.

5

593314R1

BUSHING

roll brg housing

1шт.

6

593310R1

HOUSING, roll brg LH

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90deg. lub

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2" C-Z crg

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

443343

NUT, 5/8" HL lk

1шт.

7

593312R11

SHROUD, upr roll

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2" C-Z type 2

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

ROLL ASSEMBLY, conditioner (prior to serial no. H-5074) (order 1-598314R91 roll assembly, 1-595927R91 sprocket & 1-Q3947 key)

1шт.

137945R1

PIN, roll assembly

2шт.

9

ROLL ASSEMBLY, conditioner (serial no. H-5074 to H-5496) (order 1-598314R91 roll assembly)

1шт.

10

597763R1

SHAFT, conditioner roller (serial no., Serial Range: H-5074-H5496)

1шт.

Q55

KEY,3/8" Sq x 2", Par

3/8" sq x 2"

2шт.

11

595914R1

CAP, roller end (serial no., Serial Range: H-5074-H-5496)

2шт.

12

597764R1

TUBE, conditioner roll (serial no. H-5074 to H-5496) 4" ID, 40634" OD, 38.88" Length

1шт.

13

595916R1

ROLLER, conditioner rubber (serial no., Serial Range: H-5074-H-5496)

28шт.

14

595917R1

RING, conditioner cap retaining (serial no., Serial Range: H-5074-H-5496)

2шт.

15

598314R91

ROLL ASSEMBLY, conditioner (serial no. H-5497 & up) composed of (2) cap 598317R1, (96) disk 598316R1, (2) ring 598318R1

1шт.

16

598317R1

CAP

roller end (serial no. H-5497 & up)

2шт.

17

598316R1

DISC

DISK, conditioner rubber (serial no. H-5497 & up)

96шт.

18

598318R1

RING, SNAP

RING, conditioner cap retaining (serial no. H-5497 & up)

2шт.

19

593311R1

HOUSING, roll brg RH

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90deg. lub

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2" C-Z crg

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

443343

NUT, 5/8" HL lk

1шт.

20

593295R1

BOLT

roll stop

2шт.

21434R1

NUT,5/8"-11, G8

5/8" special

2шт.

21

612435R2

SPRING

roll pressure

2шт.

22

PO2315

PLUG

spring

2шт.

23

659961R1

BOLT, spring adjusting

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2" C-Z hex jam

2шт.

178374R1

WASHER

17-32 x 1-1/4 x 16 ga C-Z

2шт.
