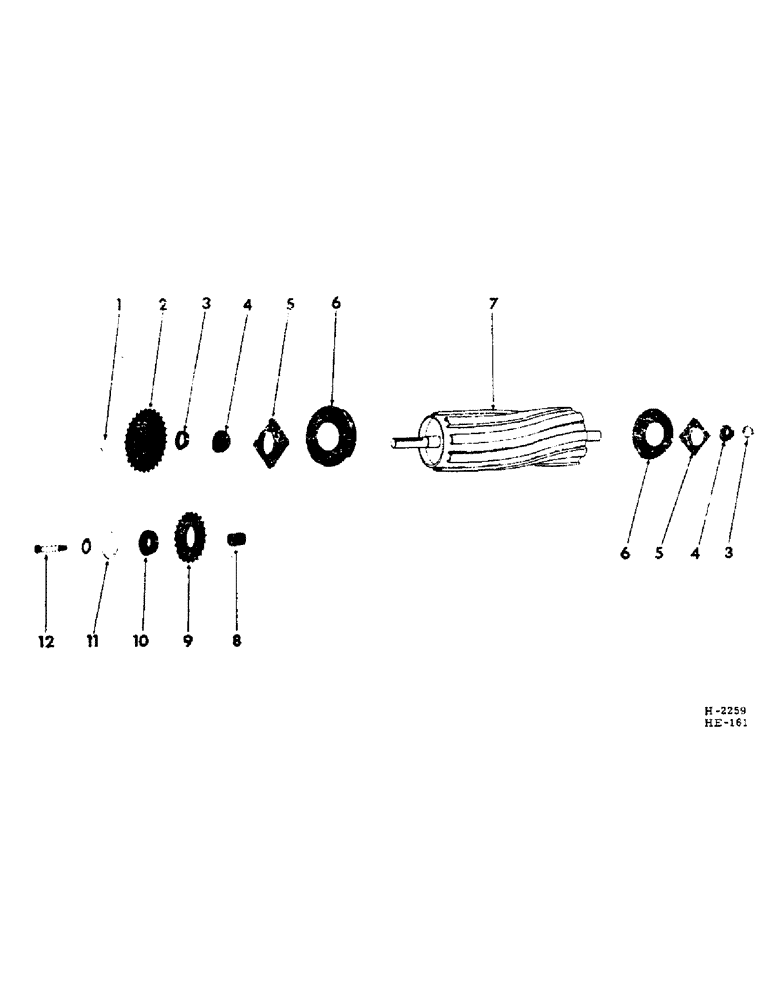

Запчасти Case IH 201 (F-003) - HAY CONDITIONER, LOWER HAY CONDITIONER STEEL ROLL ASSEMBLY, SERIAL NUMBER 11-3074 AND UP (58) - ATTACHMENTS/HEADERS

1

152450R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

2

595927R91

SPROCKET ASSY.

SPROCKET, lower roll drive

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" tapered hd-gib

1шт.

3

517645R11

COLLAR

W/SCREW, locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

1шт.

4

611583R91

BALL BEARING

BEARING, lower roll

2шт.

5

607332R1

HOUSING

lower roll brg

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2" C-Z type 2

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

6

607333R11

SHROUD, lower roll

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2" C-Z type 2

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

7

597765R1

ROLL ASSEMBLY, conditioner

1шт.

8

592062R1

BUSHING

idler sprocket brg

1шт.

9

593323R11

SPROCKET ASSY.

SPROCKET, 22T idler

1шт.

10

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, idler sprocket (opt w/608697R91)

1шт.

10

608097R91

BEARING, idler sprocket (opt w/584148R91)

1шт.

11

512889R1

RING

brg retainer

1шт.

12

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3" C-Z type 2 bolt

1шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga C-Z

1шт.

22765R1

WASHER

21/32 x 1-1/2 x 22 ga C-Z

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
