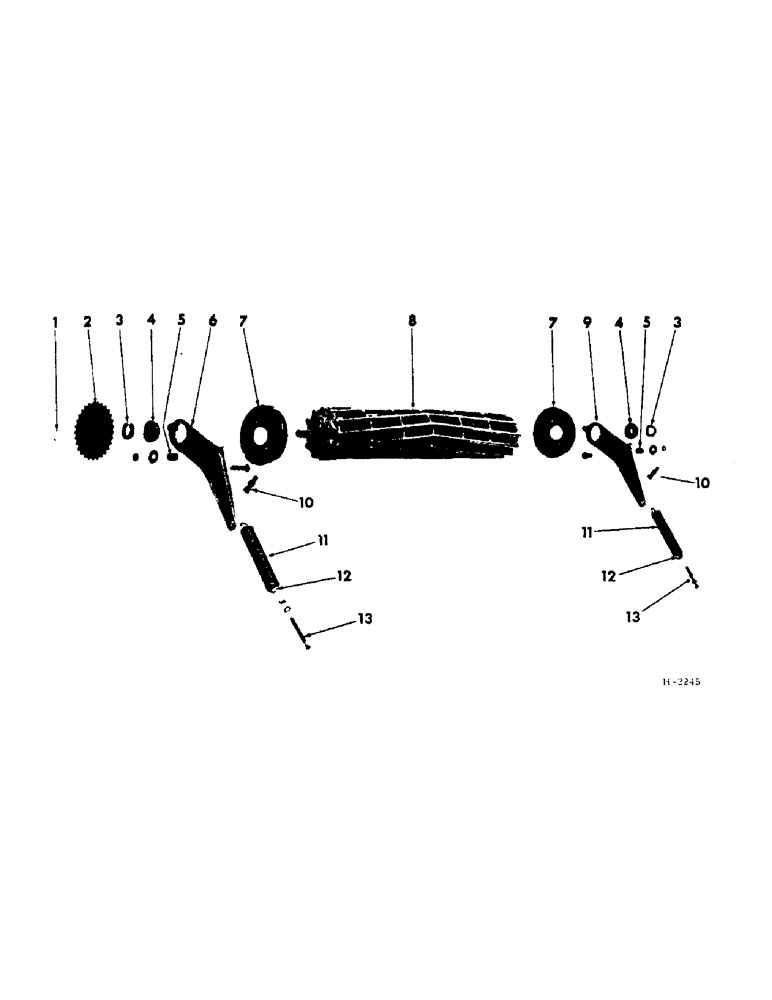

Запчасти Case IH 201 (F-002) - HAY CONDITIONER, UPPER HAY CONDITIONER STEEL ROLL ASSEMBLY, PRIOR TO SERIAL NUMBER H-5074 (58) - ATTACHMENTS/HEADERS

1

152459R1

RING, retaining

1шт.

2

607348R12

SPROCKET, upper roll drive

1шт.

113879

KEY

5/16 x 1-1/4" Woodruff

1шт.

3

517645R11

COLLAR

W/SCREW, locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

1шт.

4

611583R91

BALL BEARING

BEARING, upr roll

2шт.

5

593314R1

BUSHING

roll brg housing

2шт.

6

593310R1

HOUSING, roll brg LH

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90deg. lub

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2" C-Z crg

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

413343

LK-NUT, 5/8" HL

1шт.

7

593313R11

SHROUD

upr roll

2шт.

8

ROLL ASSEMBLY, conditioner (order 1-597765R1 roll assembly, 2-593312R11 shroud, 1-595927R91 sprocket & 1-Q3947 key)

1шт.

9

593311R1

HOUSING, roll brg RH

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90deg. lub

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2" C-Z crg

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

443343

LK-NUT, 5/8" HL

1шт.

10

593295R1

BOLT

roll stop

2шт.

21434R1

NUT,5/8"-11, G8

5/8" special

2шт.

11

612435R2

SPRING

roll pressure

1шт.

12

PO2315

PLUG

spring

2шт.

13

659961R1

BOLT, spring adjusting

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2" C-Z hex jam

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

2шт.
