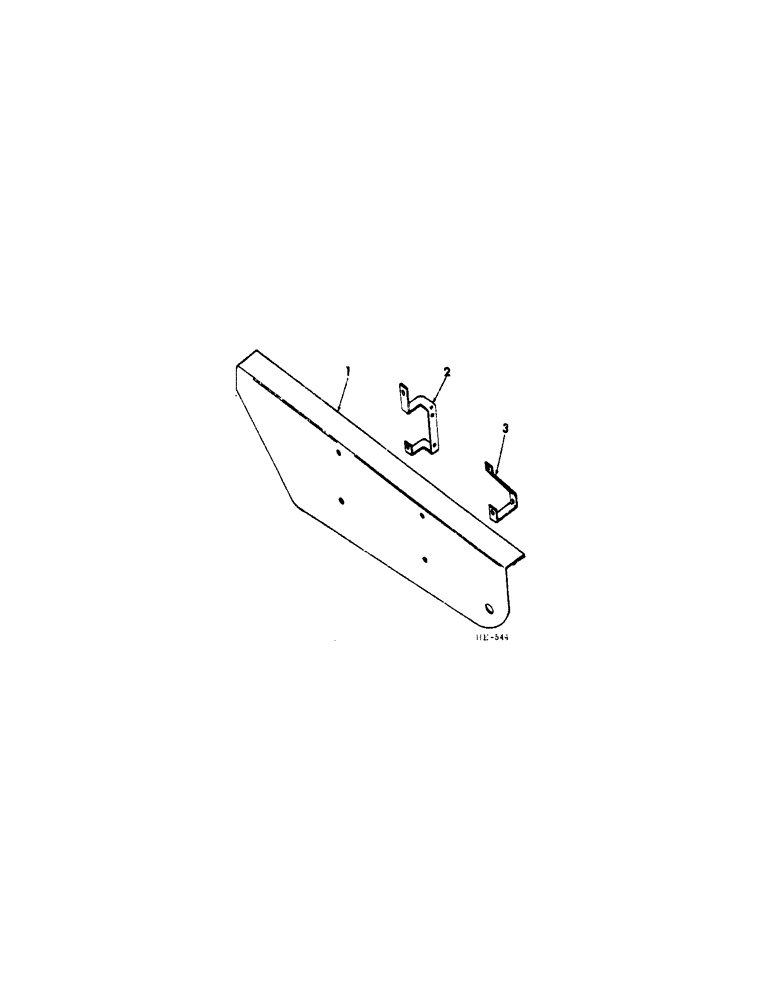

Запчасти Case IH 201 (E-058[2]) - REEL DRIVE SHIELD, 1968 AND SINCE (58) - ATTACHMENTS/HEADERS

1

598466R1

SHIELD, reel drive

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

W/NUT, 5/16 x 3/4" C-Z type 2

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

594616R1

BRACKET, front mounting

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

W/NUT, 5/16 x 3/4" C-Z type 2

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

598467R1

BRACKET, rear mounting

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

W/NUT, 3/8 x 7/8" C-Z type 2

1шт.

21041R1

WASHER

17/32 x 2 x 16 ga C-Z

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
