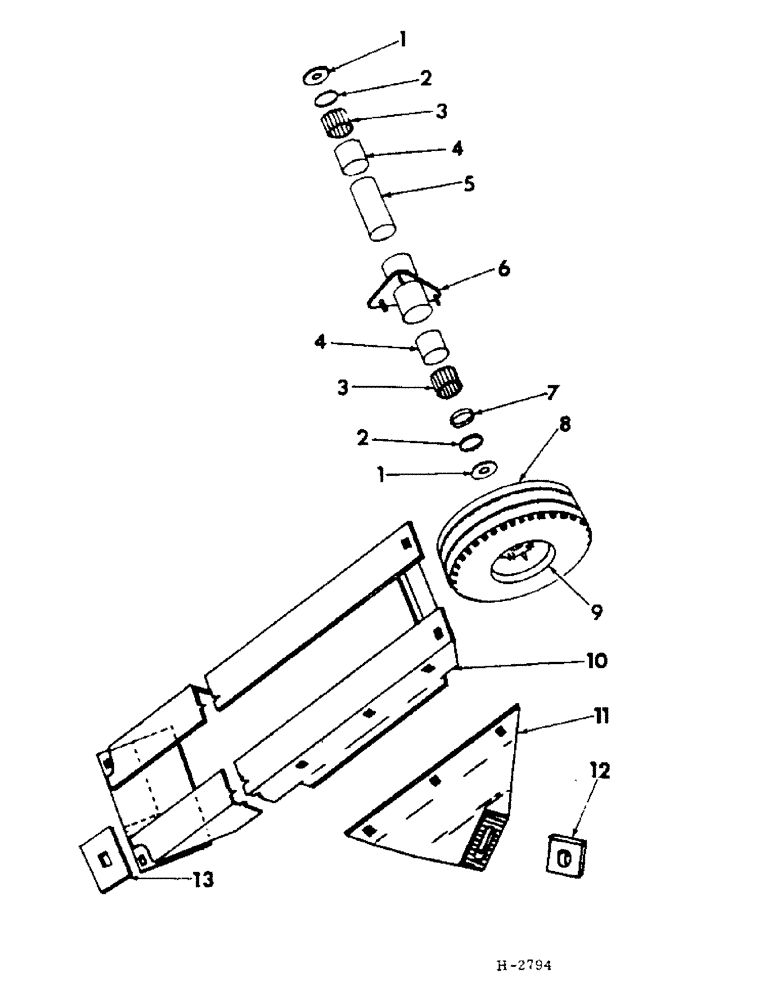

Запчасти Case IH 201 (E-057) - ATTACHMENTS, PLATFORM GAUGE WHEEL (58) - ATTACHMENTS/HEADERS

1

619505R1

WASHER

wheel hub

4шт.

2

617383R1

BUSHING,26.19mm ID x 35.13mm OD x 6.35mm L

RETAINER, wheel

4шт.

3

561478R91

BEARING, ROLLER,1" ID x 1.375" OD x 1"

BEARING, wheel

4шт.

4

617382R1

SPACER

wheel

4шт.

5

617387R1

SLEEVE,19.3mm ID x 25.4mm OD x 146.05mm L

wheel hub support

2шт.

6

617384R91

HUB

gauge wheel (includes 3-607140R1, stud, 3-607141R1, nut, 1-109454 lub-fitting)

1шт.

607140R1

BOLT,3/8" - 24 x 7/8", Steel

STUD, 3/8 x 7/8"

3шт.

607141R1

NUT

3/8" - 24

3шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

617381R1

WASHER

11 ga special

2шт.

8

TIRE & TUBE, 5.30/450-6

2шт.

9

596310R1

WHEEL

DISK, wheel inner

2шт.

9

596311R1

WHEEL

DISK, wheel outer

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

W/NUT, 3/8 x 3/4" C-Z type 2

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

10

594404R91

BRACKET, gauge wheel mounting

2шт.

608807R1

BOLT,Short NK, 3/8"-16 x 7/8", G5, Full Thd

W/NUT, 3/8 x 7/8" C-Z type 2 crg

4шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4" C-Z type 2 crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

11

594411R11

SUPPORT

gauge wheel axle LH shown

2шт.

594412R11

SUPPORT

gauge wheel axle RH

2шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" C-Z crg

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

12

594414R1

WASHER

axle adjuster

4шт.

21702R1

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

W/NUT, 3/4 x 8-1/2" C-Z type 2

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

13

594410R1

BAR

STRIP, mounting filler RH

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4" C-Z type 2 crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
