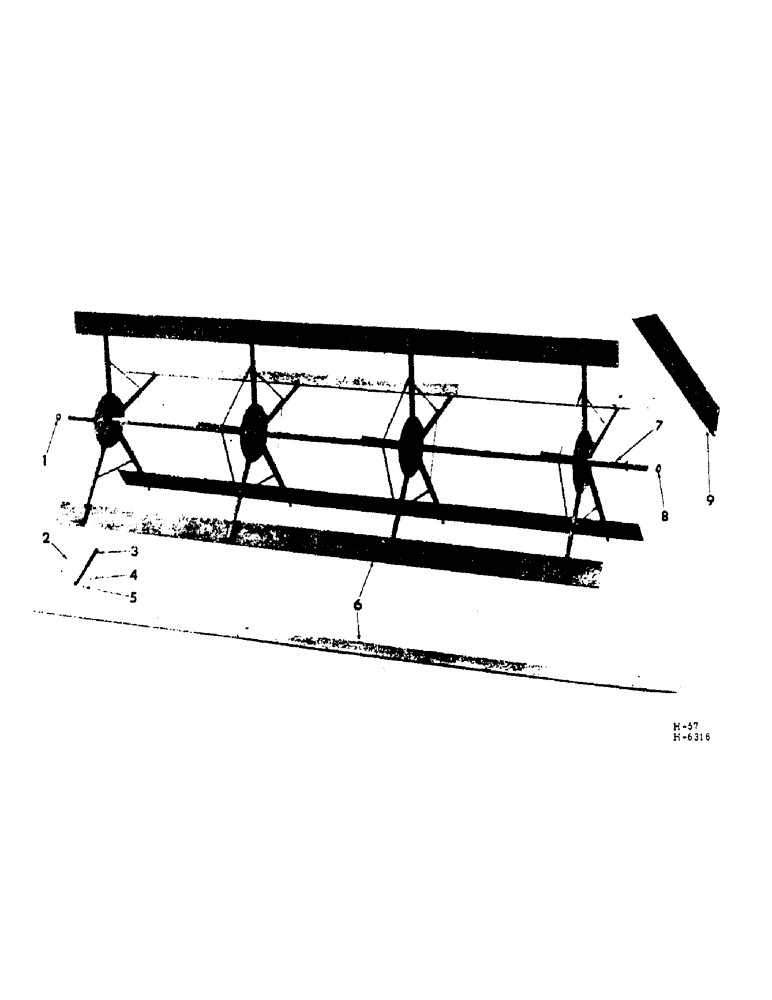

Запчасти Case IH 201 (E-048) - REEL, REEL AND REEL GUARD (58) - ATTACHMENTS/HEADERS

1

612267R1

COLLAR

reel tube locking

2шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8" C-Z cup-pt set

4шт.

2

618854R1

BRACE, reel bat bracket

20шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

W/NUT, 5/16 x 5/8" C-Z type 2

20шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

W/NUT, 5/16 x 3/4" C-Z type 2

20шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

40шт.

3

612262R1

ASSEMBLY

ARM, reel bat

20шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

W/NUT, 5/16 x 5/8" C-Z type 2

20шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

W/NUT, 5/16 x 3/4" C-Z type 2

20шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

40шт.

4

U13039

SPACER

bat bracket inner

10шт.

588736H1

SPACER, bat bracket outer

20шт.

6

593267R1

BAT, 13-1/2 ft reel

5шт.

6

609928R1

BAT, 16-1/2 ft reel

5шт.

6

593268R1

BAT, 19-1/2 ft reel

5шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

W/NUT, 5/16 x 2-1/4" C-Z type 2

20шт.

180091

SPRING

W/NUT, 5/16 x 2-1/2" C-Z type 2

10шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

W/NUT, 5/16 x 1-1/2" C-Z type 2

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

40шт.

7

593263R91

TUBE, 13-1/2 ft reel

1шт.

7

612275R92

TUBE, 16-1/2 ft reel 197.375" Length

1шт.

7

593264R91

TUBE, 19-1/2 ft reel

1шт.

8

615325R1

WASHER, 1-11/16 x 2-1/4 x 16 ga (LH)

2шт.

9

612452R2

GUARD

reel end (LH)

5шт.

9

612453R2

REINFORCEMENT

GUARD, reel end (RH) (w/round hole for identification)

5шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

W/NUT, 1/4 x 1-1/2" C-Z type 2

20шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

40шт.
