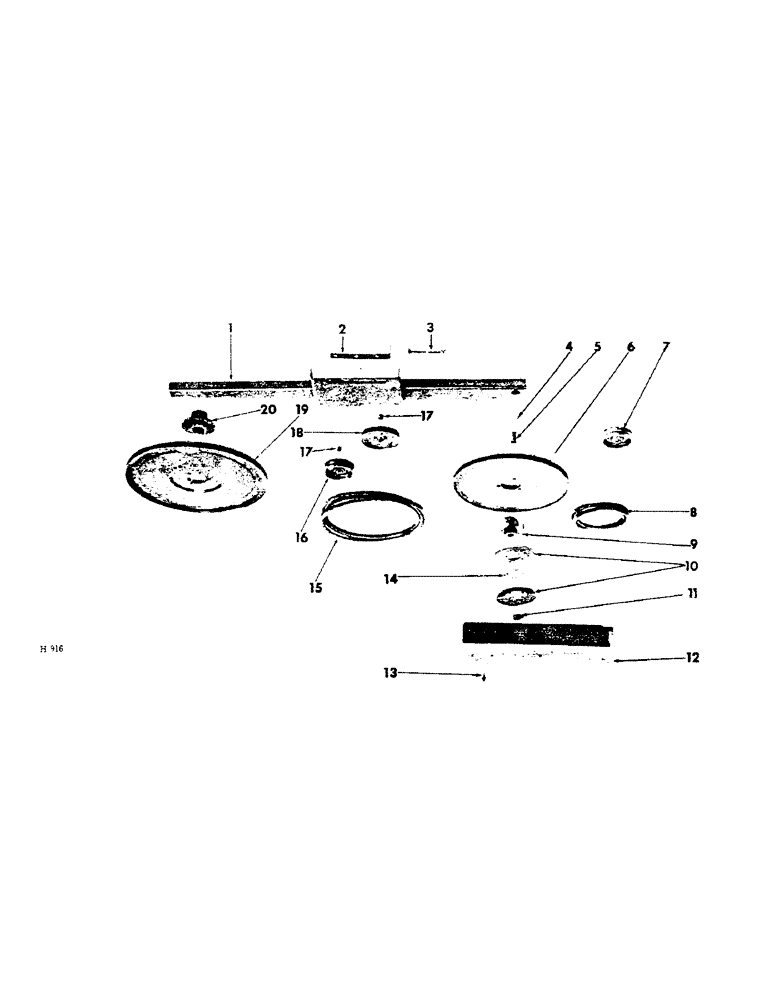

Запчасти Case IH 201 (E-046) - REEL, REEL DRIVE, BELT TYPE (58) - ATTACHMENTS/HEADERS

1

ARM, reel support ("Refer to reel support arm")

1шт.

2

609917R1

SUPPORT, reel drive idler pulley

1шт.

3

609778R1

BOLT, idler pulley tightener special

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga C-Z

1шт.

5

617363R1

BUSHING

reel drive hub

1шт.

6

554575R91

PULLEY, reel jackshaft drive

1шт.

1965 to 1967

1шт.

6

597737R1

PULLEY, reel jackshaft driven

1шт.

1968 and since

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1" C-Z type 2

3шт.

1965 to 1967

1шт.

180112

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

5/16 x 2-3/4" C-Z type 2

4шт.

1968 and since

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1965 to 1967

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1968 and since

1шт.

7

559292R93

PULLEY

jackshaft belt tightener

1шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

W/NUT, 1/2 x 2-1/4" C-Z crg

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq-hole x 1-1/4 x 11 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

16397KA

V-BELT,0.63" W x 76.03" L

Reel Jackshaft Drive 0.63" W x 76.03" L

1шт.

1965 to 1967

1шт.

8

597736R1

V-BELT,0.63" W x 80.00" L

Reel jackshaft drive 0.63" W x 80.00" L

1шт.

1968 and since

1шт.

9

611754R21

HUB, bushing, reel drive

1шт.

1965 to 1967

1шт.

9

597739R11

HUB, bushing, reel drive

1шт.

1968 and since

1шт.

10

592730R1

PULLEY

reel drive half

2шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 x 1-1/8" C-Z type 2

4шт.

1965 to 1967

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

-NUT, 5/16 x 2-3/4" C-Z type 2

4шт.

1968 and since

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

610513R1

COLLAR

COLLAR, pulley locking

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/16 x 1-1/2" sq-hd cup-pt C-Z set

1шт.

12

592165R12

SHIELD, reel drive

1шт.

1965 to 1967

1шт.

12

597742R1

SHIELD, reel drive (see note B)

1шт.

1968 and since

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 5/16 x 3/4" C-Z crg

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

592084R1

BOLT

pivot shaft lubrication

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

14

21659K

RING

SPACER, reel drive pulley

6шт.

15

18884K

V-BELT,147.21" L

Reel pulley drive 147.21" L

1шт.

16

559292R93

PULLEY

idler lower tightener

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

W/NUT, 1/2 x 2-1/2" C-Z type 2

1шт.

374119R1

WASHER, 17/32 x 1 x 1/8" C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

17

43851D

SPACER, idler pulley

2шт.

18

559087R92

PULLEY

idler upr tightener

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

W/NUT, 1/2 x 2-1/2" C-Z type 2

1шт.

374119R1

WASHER, 17/32 x 1 x 1/8" C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

19

588227R11

PULLEY

reel drive

1шт.

1965 to 1967

1шт.

19

597740R1

PULLEY, w/hub, reel driven

1шт.

1968 and since

1шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

1шт.

1968 and since

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

W/NUT, 3/8 x 1-1/2" C-Z type 2

3шт.

1965 to 1967

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1965 to 1967

1шт.

20

611755R1

HUB

reel driven pulley

1шт.

1965 to 1967

1шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

1шт.
