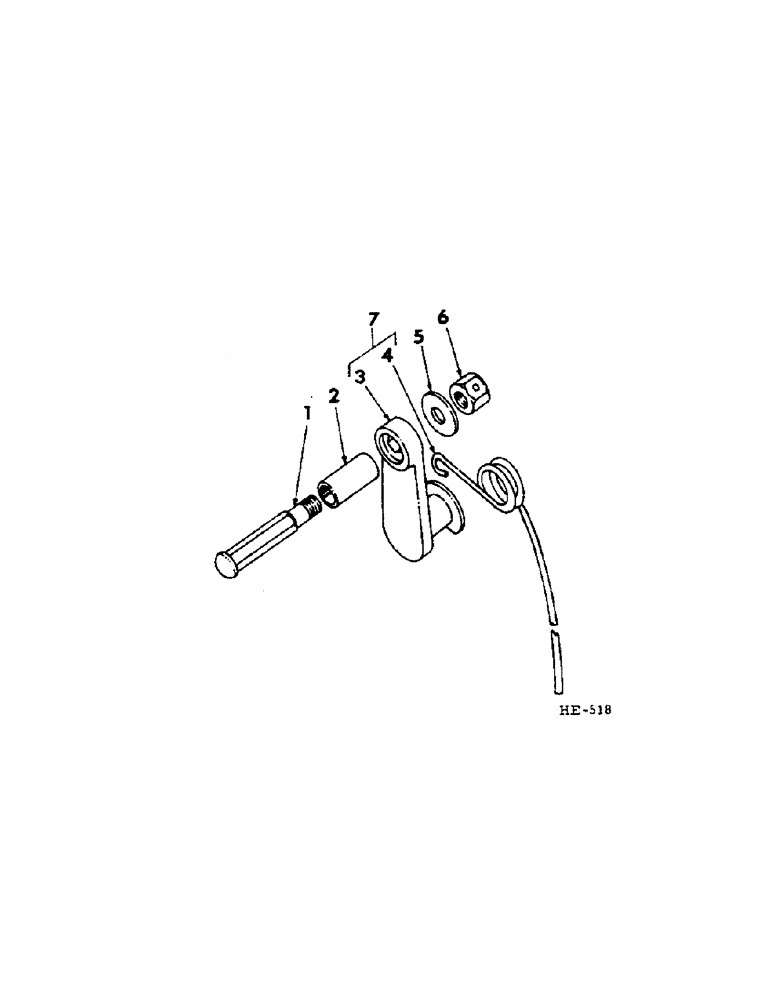

Запчасти Case IH 201 (E-045) - REEL, PICK-UP REEL FINGER (58) - ATTACHMENTS/HEADERS

1

592631R1

BOLT

finger shank

10шт.

2

592632R1

SPACER

shank bolt

10шт.

3

592627R21

STRAP

pick-up finger

10шт.

4

598182R1

FINGER

pick-up LH shown

5шт.

4

598183R1

FINGER

pick-up RH

5шт.

5

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

10шт.

6

685547R1

NUT

1/2" special 1K

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

7

598181R91

FINGER

ASSEMBLY RH, composed of (1) strap 592627R21, (1) finger 598183R1

5шт.

7

598180R91

FINGER

ASSEMBLY, LH composed of (1) strap 592627R21, (1) finger 598182R1

5шт.
