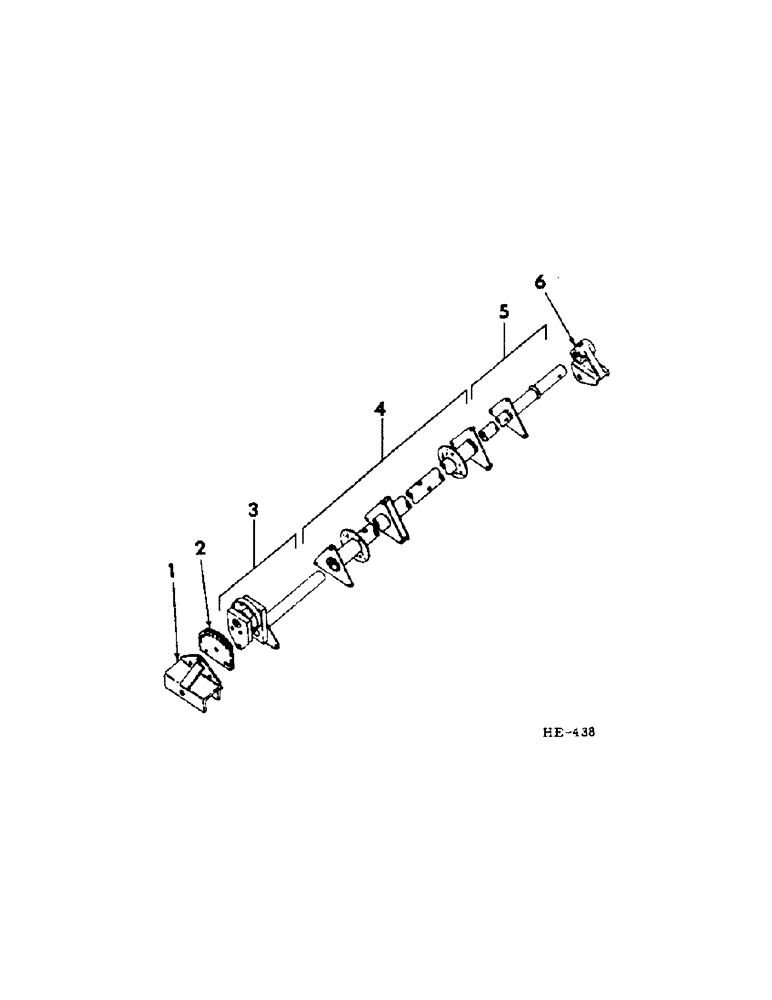

Запчасти Case IH 201 (E-045[1]) - PICK-UP REEL SHAFT (58) - ATTACHMENTS/HEADERS

1

592605R91

BRACKET, eccentric adjustment plate (connects to reel arm lift)

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT W/NUT, 7/16 x 1-1/2" C-Z type 2

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4" C-Z type 2

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

W/NUT, 1/2 x 2-3/4" C-Z type 2

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

592604R11

PLATE, eccentric crank adjustment

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2" x 1" C-Z type 2

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

598162R91

CRANK, eccentric drive (includes 109461 & 273355 fittings)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4" lub

1шт.

4

592599R91

SHAFT, reel center (10-1/2 ft) (includes 102593 screws & 1-273355 fitting)

1шт.

4

598203R91

SHAFT, reel center (13-1/2 ft) (includes 102593 screws & 1-273355 fitting)

1шт.

102593

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

SCREW, 3/8 x 1/2" hdls cup-pt set

3шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4" lub

1шт.

5

592598R91

SHAFT, driving end

1шт.

6

611761R1

BRACKET, reel drive shaft

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

517843R1

COTTER PIN

C-PIN, quick-attachable

1шт.

LC175

PIN

1/2 x 2-1/2" std-hd dld

1шт.
