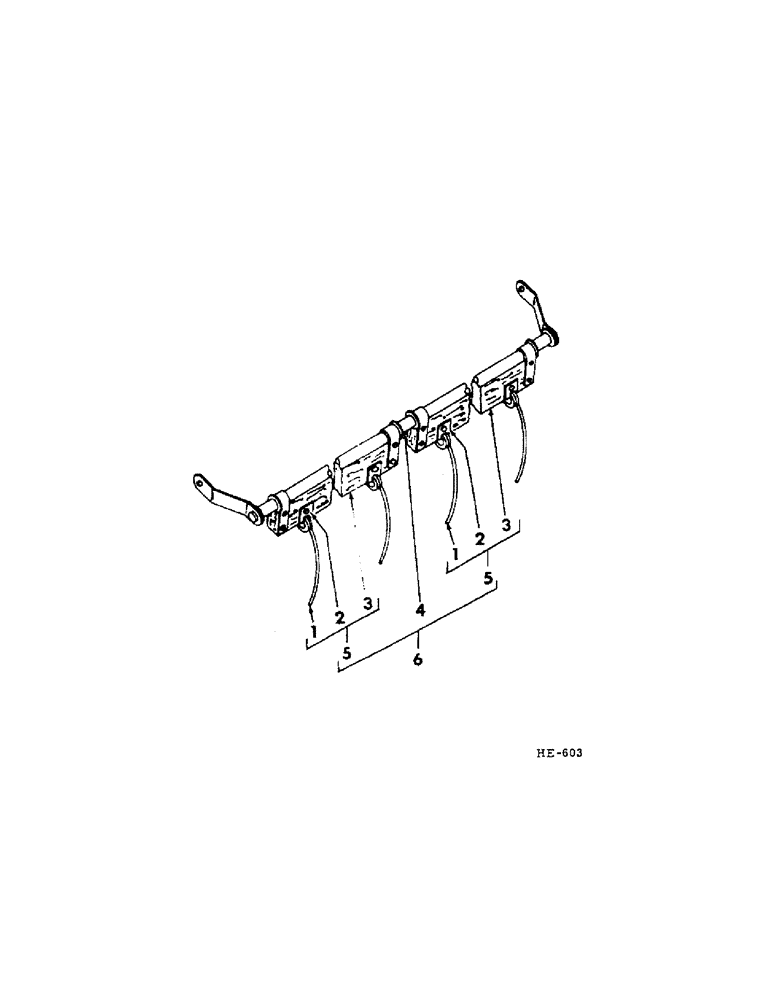

Запчасти Case IH 201 (E-044) - REEL, PICK-UP REEL BAT, 10-1/2 FT (58) - ATTACHMENTS/HEADERS

1

598171R1

TINE,Coiled, 1 Prong, 283mm L

reel bat

120шт.

2

592616R1

CLIP

reel bat tine

120шт.

20901R1

RIVET

3/16 x 1" semi-tub ov-hd

120шт.

3

BAT, clip, tine & wood (order 1-598196R91 bat assembly) (NSS)

10шт.

4

592613R91

BATSHAFT, reel bat

5шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4 x 1-1/2" C-Z crg

80шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" special

80шт.

5

598196R91

BAT

ASSEMBLY composed of: (1) bat (NSS), (12) tine 598171R1, (13) clip 592616R1, (12) rivet 20901R1

10шт.

6

598195R91

BATSHAFT & BAT ASSEMBLY composed of: (1) shaft 592613R91, (2) bat assembly 598196R91

5шт.
