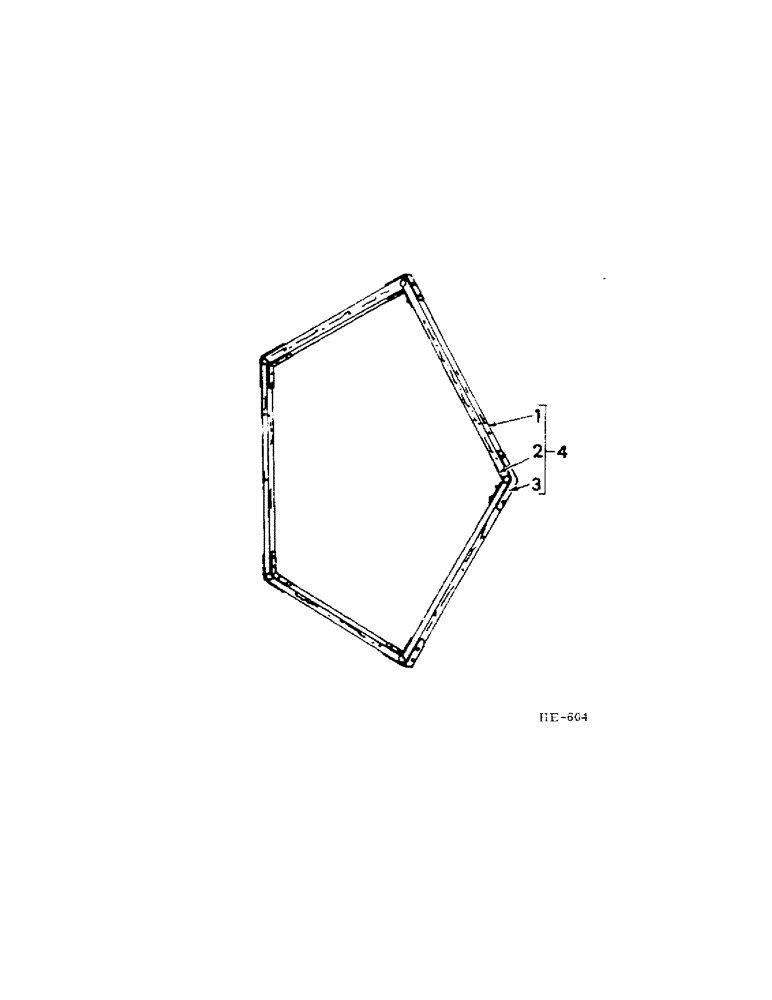

Запчасти Case IH 201 (E-043) - REEL, PICK-UP REEL POLYGON LEFT HAND (58) - ATTACHMENTS/HEADERS

1

598173R1

BOARD

STICK, polygon LH

5шт.

2

598175R1

STRAP, polygon inner

5шт.

378531R1

LOCK NUT,1/4"-20, GA

NUT, 1/4" special

20шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4" C-Z type 2

20шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

20шт.

3

598174R1

STRAP, polygon outer

5шт.

378531

NUT, 1/4" special

20шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4" C-Z type 2

20шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

20шт.

4

598172R91

POLYGON, reel plain LH composed of: (20) bolt 180042, (20) lockwasher 120380, (20) nut 378531R1, (5) stick 598173R1, (5) strap 598174R1, (5) strap 598175R1

1шт.
