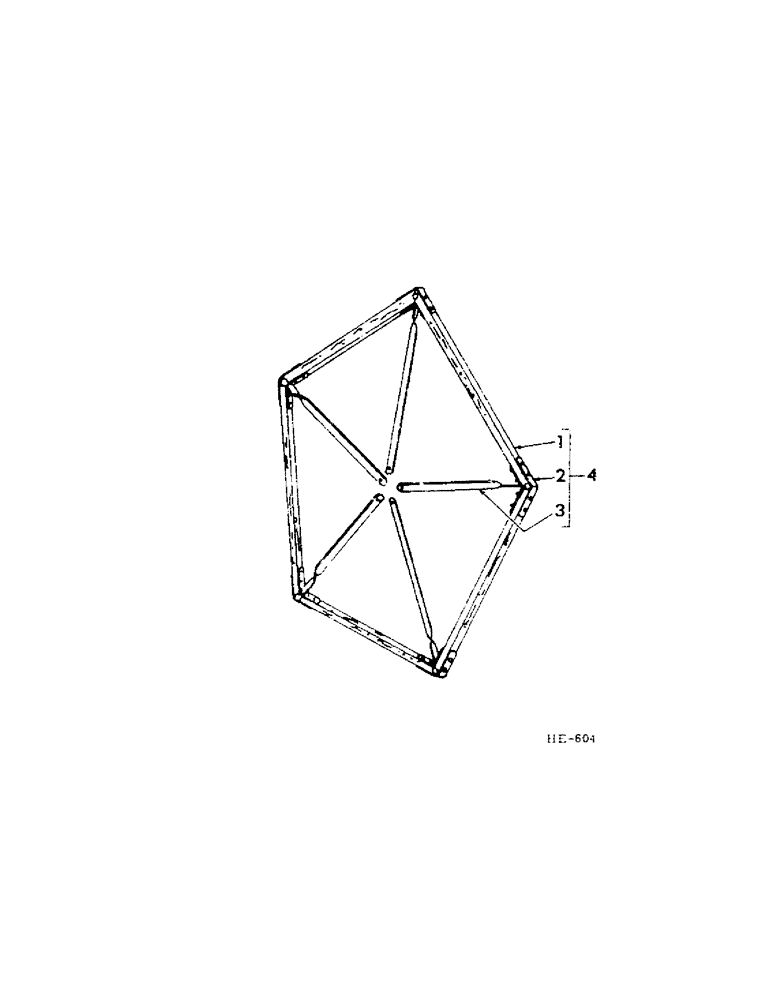

Запчасти Case IH 201 (E-043[1]) - PICK-UP REEL POLYGON RIGHT HAND (58) - ATTACHMENTS/HEADERS

1

598173R1

BOARD

STICK, polygon RH

5шт.

2

598174R1

STRAP, polygon outer RH

5шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4" C-Z type 2

20шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" special

20шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

20шт.

3

598177R1

SUPPORT

SPOKE, polygon RH

5шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4" C-Z type 2

20шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" special

20шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4" C-Z crg

5шт.

592639R1

NUT

LK-NUT, 5/16" special

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

20шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

4

598176R91

POLYGON, reel spoke RH composed of: (20) bolt 180042, (20) lockwasher 120380, (20) nut 378531R1, (5) bolt 16897R1, (5) lockwasher 120214, (5) nut 592639R1, (5) spoke 598177R1, (5) strap 598174R1, (5) stick 598173R1

1шт.
