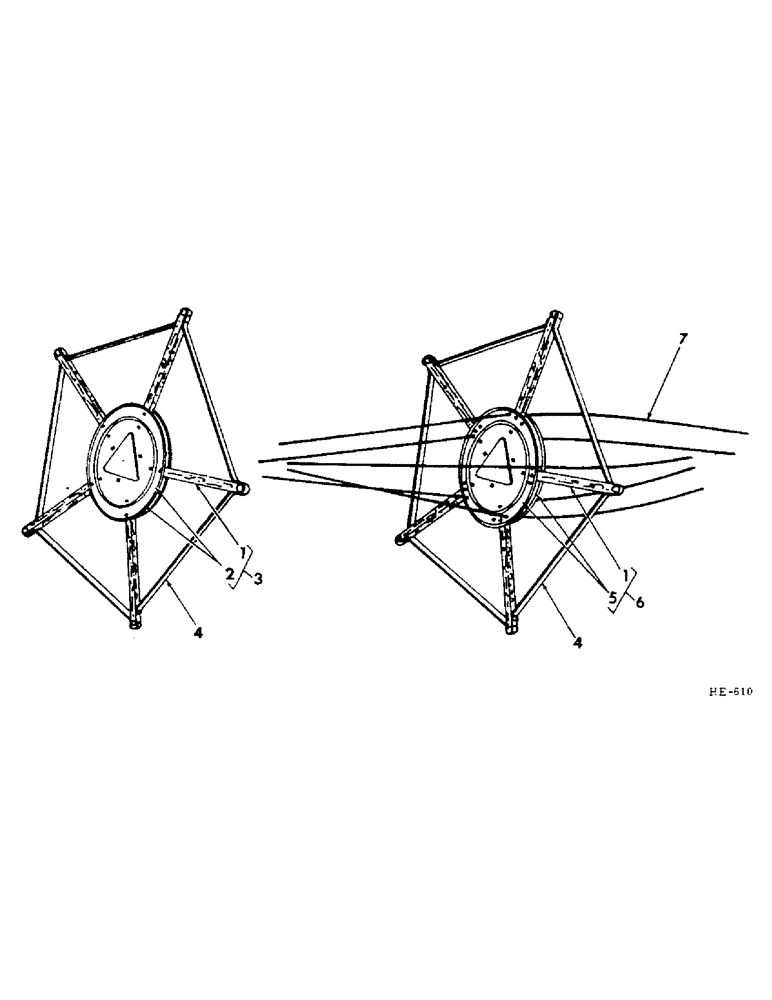

Запчасти Case IH 201 (E-042) - REEL, PICK-UP REEL SPIDERS AND BRACES, 10-1/2 FT AND 13-1/2 FT (58) - ATTACHMENTS/HEADERS

1

592610R1

STICk, reel arm (15-10-1/2 ft, 20-13-1/2 ft)

1шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4 x 1-1/2" C-Z crg (2 per stick)

1шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" special (1 per bolt)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 per bolt) 1/4"

1шт.

2

598166R1

PLATE, outer spider

4шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4" C-Z crg

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

6шт.

385525R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8" special

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

598165R91

SPIDER ASSEMBLY, reel arm outer composed of: (10) bolt 18629R1, (10) nut 378531R1, (1) lockwasher 120380, (2) plate 598166R1, (5) stick 592610R1

2шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4" C-Z crg

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

6шт.

385525R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8" special

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

4

598167R1

BRACE, reel arm (15-10-1/2 ft, 20-13-1/2 ft)

1шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4" C-Z crg (1 per brace)

1шт.

592639R1

NUT

LK-NUT, 5/16" special (1 per bolt)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, (1 per bolt) 5/16"

1шт.

5

598164R1

PLATE, inner spider (2-10-1/2 ft, 4-13-1/2 ft)

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4" C-Z crg (3 per set)

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z (3 per set)

1шт.

385525R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8" special (3 per set)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (3 per set) 3/8"

1шт.

6

598163R91

SPIDER ASSEMBLY, reel arm inner (1-10-1/2 ft, 2-13-1/2 ft) composed of: (10) bolt 18629R1, (10) nut 378531R1, (10) lockwasher 120380, (2) plate 598164R1, (5) stick 592610R1

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4" C-Z crg (3 per spider)

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z (3 per spider)

1шт.

385525R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8" special (3 per spider)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (3 per spider) 3/8"

1шт.

7

592600R1

ROD, truss (10-1/2 ft)

5шт.

598204R1

ROD, truss (13-1/2 ft)

5шт.

477598R1

WASHER

13/32 x 1-1/2 x 11 ga C-Z

10шт.

592601R1

WASHER, truss rod rubber

10шт.

592602R1

WASHER, truss rod cup

10шт.

120369

NUT,3/8"-24, G5

20шт.
