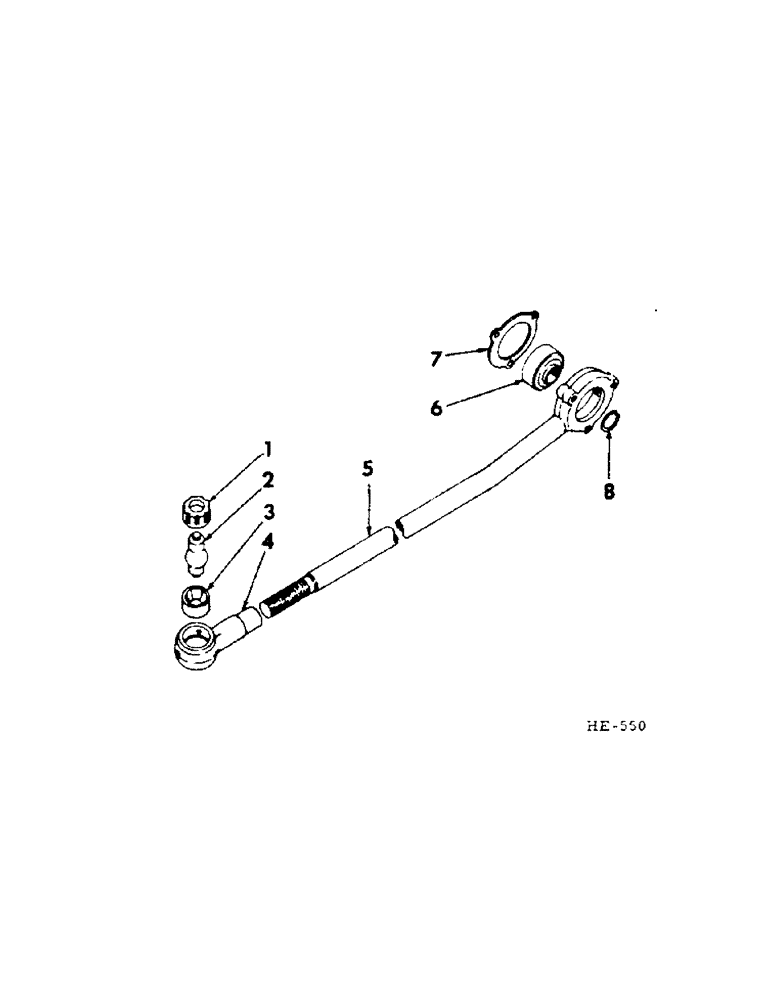

Запчасти Case IH 201 (E-041) - KNIFE, KNIFE DRIVE PITMAN (58) - ATTACHMENTS/HEADERS

1

572980R1

SEAT

pitman drive ball upr

1шт.

2

572979R1

JOINT TURNING

BALL, knife drive

1шт.

24191R1

BOLT W/NUT, 1/2"-NF x 4" C-Z type 2

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

572981R1

SEAT

pitman drive ball lower

1шт.

4

572976R1

END

HOUSING, pitman ball

1шт.

16964R91

FITTING

LUB-FITTING, 1/4"-90deg. elbow

1шт.

106837

SET SCREW,Sq Hd, 5/16"-18 x 3/4"

SCREW, 5/16 x 3/4" sq-hd dog-pt set

1шт.

NLS

NO LONGER SERVICED

5/16" jam

1шт.

5

592150R31

PITMAN

knife

1шт.

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8"-NF jam

1шт.

6

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

knife pitman (opt w/584148R91 bearing)

1шт.

6

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, knife pitman (opt w/608697R91 bearing)

1шт.

7

572139R1

RETAINER

pitman brg

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

W/NUT, 1/4 x 1-1/4" C-Z type 2

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

8

26540D

RING, SNAP

RING, pitman brg retaining

1шт.
