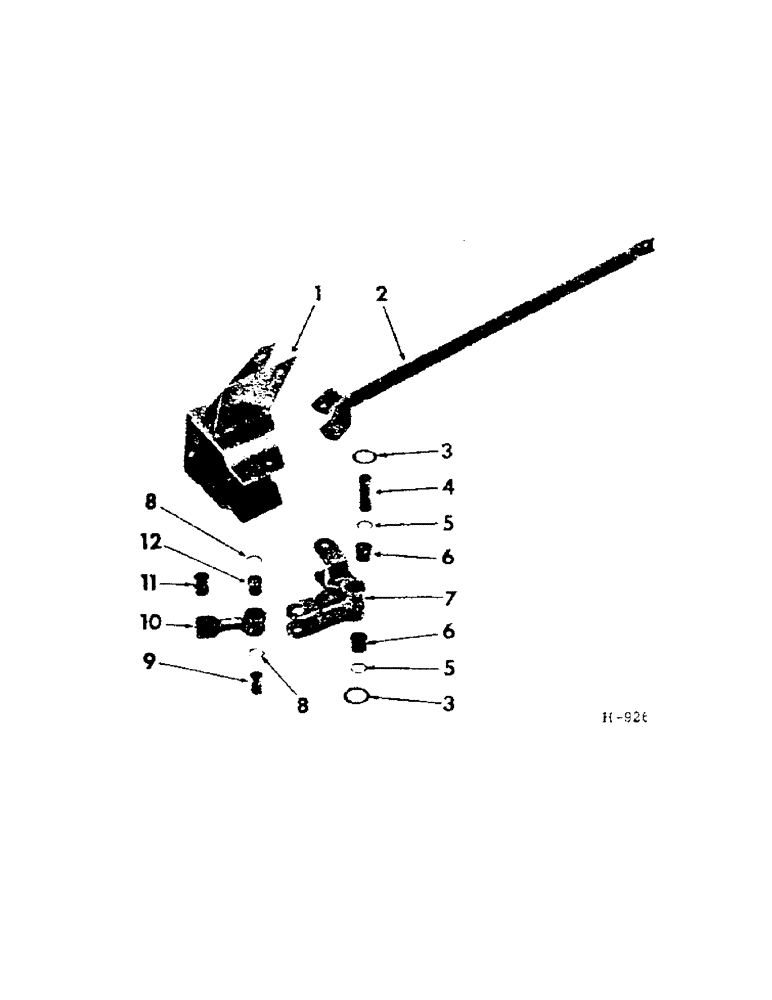

Запчасти Case IH 201 (E-041[1]) - KNIFE BELLCRANK, LINK AND BRACE (58) - ATTACHMENTS/HEADERS

1

592151R92

BRACKET, bellcrank support

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT W/NUT, 1/2 x 1-3/8" C-Z crg

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

592157R11

BRACE, bellcrank support

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT W/2 NUTS, 7/16 x 1-1/2" C-Z type 2

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT W/NUT, 1/2 x 1-1/4" C-Z crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

3

552091R1

WASHER

1-5/32 x 2 x 22 ga

6шт.

4

608734R1

BUSHING

bellcrank pivot

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

W/NUT, 3/4 x 5-1/4" C-Z type 2

1шт.

552091R1

WASHER

1-5/32 x 2 x 22 ga (special)

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

5

564808R91

WIPER

OIL SEAL, bellcrank stud

2шт.

6

142929H

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 25.4mm W

BEARING, bellcrank

2шт.

7

572982R11

LEVER

BELLCRANK, knife drive (includes 142929H bearings)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

8

697494R91

OIL SEAL

OIL SEAL, bellcrank link (opt w/574238R91 oil seal)

2шт.

8

574238R91

SEAL

OIL Seal, bellcrank link (opt w/697494R91 oil seal)

2шт.

9

565627R1

BUSHING

SLEEVE, link pivot

1шт.

10

593248R11

PIVOT

LINK, bellcrank (includes 560388R91 & 565628R1 bushings) (1966 & since)

1шт.

10

592156R11

LINK

bellcrank (includes 560388R91 & 565628R1 bushings), Serial Range: (prior-1966)

1шт.

16964R1

FITTING

LUB-FITTING, 1/4"-NF 90deg.

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

W/NUT, 3/4 x 3" C-Z type 2

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

11

560388R91

COMPOSITE RING

BUSHING, bellcrank link (RH)

1шт.

12

565628R1

BUSHING,25.43mm ID x 31.75mm OD x 28.65mm L

bellcrank link (LH)

1шт.
