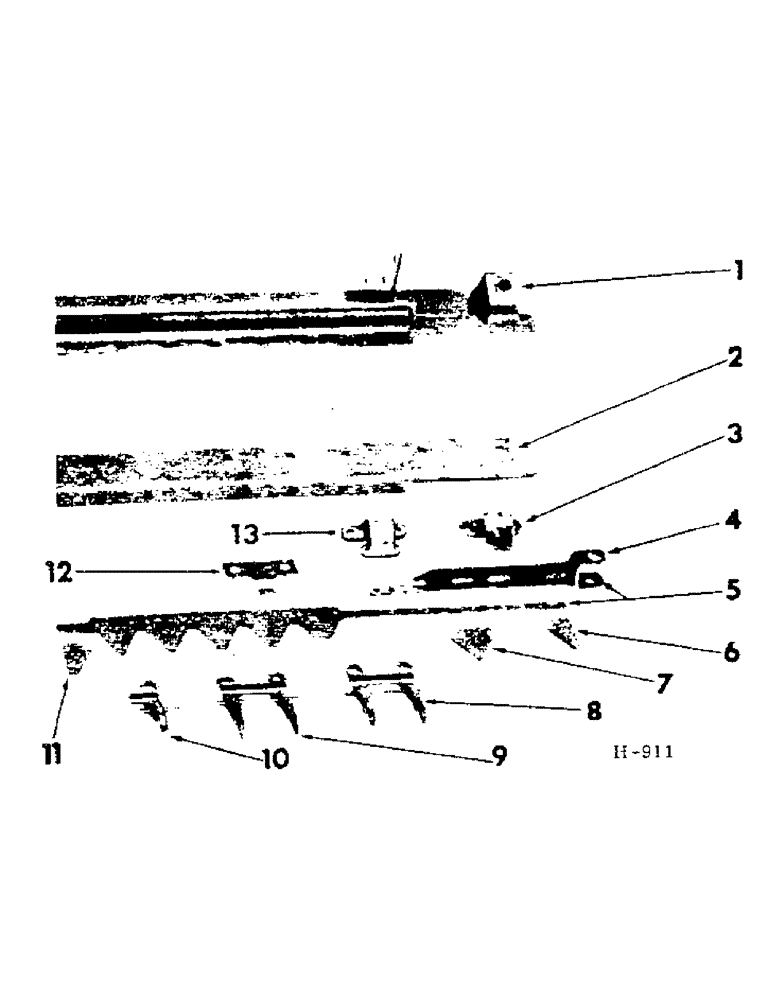

Запчасти Case IH 201 (E-040) - KNIFE (58) - ATTACHMENTS/HEADERS

1

593205R11

GUARD, stone upr (10-1/2 ft)

1шт.

1

593206R11

GUARD, stone upr (13-1/2 ft)

1шт.

1

592099R11

GUARD, stone upr (16-1/2 ft) (1965 season)

1шт.

1

594167R11

GUARD, stone upr (16-1/2 ft) (1966 & since)

1шт.

1

593208R11

GUARD, stone upr (19-1/2 ft)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

W/NUT, 1/2 x 1-1/4" C-Z type 2

1шт.

495968R1

BOLT,Short NK, 3/8"-16 x 1 1/8", G5, Full Thd

3/8 x 1-1/8" type 2 crg

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

2

593211R1

GUARD, stone lower (10-1/2 ft)

1шт.

2

593212R1

GUARD, stone lower (13-1/2 ft)

1шт.

2

592106R1

GUARD, stone lower (16-1/2 ft) (1965 season)

1шт.

2

594168R1

GUARD, stone lower (16-1/2 ft) (1966 & since)

1шт.

2

593214R1

GUARD, stone lower (19-1/2 ft)

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

W/NUT, 5/16 x 7/8" C-Z type 2

1шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" crg (4-13-1/2 ft, 9-16-1/2 ft, 12-19-1/2 ft)

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT W/NUT, 3/8 x 2" C-Z crg

1шт.

495968R1

BOLT,Short NK, 3/8"-16 x 1 1/8", G5, Full Thd

W/NUT, 3/8 x 1-1/8" type 2 crg

1шт.

619856R1

WASHER

13/32 x 1" x 16 ga C-Z

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 on each washer, lock, 3/8" bolt 3/8"

1шт.

3

592163R1

GUIDE

hold down high arch

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT W/NUT, 7/16 x 1-21/32" type 2 no. 3 plowø

2шт.

4

592160R91

END, knife (1965 season)

1шт.

593253R92

KNIFE

END, knife (1966 & since)

1шт.

14773R1

RIVET,Oval Hd, .211" x 1 1/8""

no. 5-1/2 x 1-1/8 ov-hd

13шт.

5

593249R92

KNIFE

10-1/2 ft chrome-pltd underserrated composed of: (1) end 593253R92, (1) back (NSS), (1) section 619077R1, (1) section 619078R1, (40) section 457606R1, (13) rivet 14773R1, (71) rivet 19869R1

1шт.

5

593250R92

KNIFE

13-1/2 ft chrome-pltd underserrated composed of: (1) end 593253R92, (1) back (NSS), (1) section 619077R1, (1) section 619078R1, (52) section 457606R1, (13) rivet 14773R1, (95) rivet 19869R1

1шт.

5

592159R91

KNIFE, 16-1/2 ft chrome-pltd underserrated (1965 season) composed of: (1) end 592160R91, (1) back (NSS), (1) section 619077R1, (1) section 619078R1, (64) section 457606R1, (9) rivet 14773R1, (123) rivet 19869R1

1шт.

5

593251R92

KNIFE ASSY

KNIFE, 16-1/2 ft chrome-pltd underserrated (1966 & since) composed of: (1) end 593253R92, (1) back (NSS), (1) section 619077R1, (1) section 619078R1, (64) section 457606R1, (13) rivet 14773R1, (119) rivet 19869R1

1шт.

5

593252R92

KNIFE, 19-1/2 ft chrome-pltd underserrated composed of: (1) end, (1) back (NSS) 593253R92, (1) section 619077R1, (1) section 619078R1, (76) section 457606R1, (13) rivet 14773R1, (143) rivet 19869R1

1шт.

6

619077R1

KNIFE SECTION

SECTION, cr-pltd (LH)

1шт.

14773R1

RIVET,Oval Hd, .211" x 1 1/8""

no. 5-1/2 x 1-1/8" ov-hd

2шт.

7

457606R1

KNIFE SECTION

SECTION, cr-pltd underserrated (40-10-1/2 ft, 52-13-1/2 ft, 64- 16-1/2 ft, 76-19-1/2 ft)

1шт.

14773R1

RIVET,Oval Hd, .211" x 1 1/8""

no. 5-1/2 x 1-1/8" ov-hd

13шт.

19869R1

RIVET, no. 5-1/2 x 9/16" ov-hd (71-10-1/2 ft, 95-13-1/2 ft, 119-16-1/2 ft, 143-19-1/2 ft) Oval Hd, .211" x 9/16"

1шт.

8

613839R1

GUARD

double LH

3шт.

M805

BOLT W/NUT, 7/16 x 1-5/16" type 2 no. 3 plow

2шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT W/NUT, 7/16 x 1-21/32" type 2 no. 3 plow

2шт.

9

613838R1

GUARD

double (17-10-1/2 ft, 23-13-1/2 ft, 29-16-1/2 ft, 35-19- 1/2 ft)

1шт.

M805

BOLT W/NUT, 7/16 x 1-5/16" type 2 no. 3 plow (21-10-1/2 ft, 27-13-1/2 ft, 33-16-1/2 ft, 39-19-1/2 ft)

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT W/NUT, 7/16 x 1-21/32" type 2 no. 3 plow

4шт.

M806

PLOW BOLT

BOLT W/NUT, 7/16 x 1-9/16" type 2 no. 3 plow (16-10-1/2 ft, 22-13-1/2 ft, 28-16-1/2 ft, 34-19-1/2 ft

1шт.

10

613840R1

GUARD

single (RH) (opt w/613841R1)

1шт.

10

613841R1

GUARD

single (LH) (opt w/613840R1)

1шт.

M805

BOLT W/NUT, 7/16 x 1-5/16" type 2 no. 3 plow

1шт.

11

619078R1

KNIFE

SECTION, cr-pltd half (RH)

1шт.

19869R1

RIVET, no. 5-1/2 x 9/16" ov-hd Oval Hd, .211" x 9/16"

2шт.

12

613842R1

CLIP

hold down knife 8-10-1/2 ft, 11-13-1/2 ft, 14-16-1/2 ft, 17-19-1/2 ft)

1шт.

M806

PLOW BOLT

BOLT W/NUT, 7/16 x 1-9/16" type 2 no. 3 plow (2 each clip)

1шт.

13

613843R1

HOLDER

CLIP, hold down knife

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT W/NUT, 7/16 x 1-21/32" type 2 no. 3 plow

2шт.
