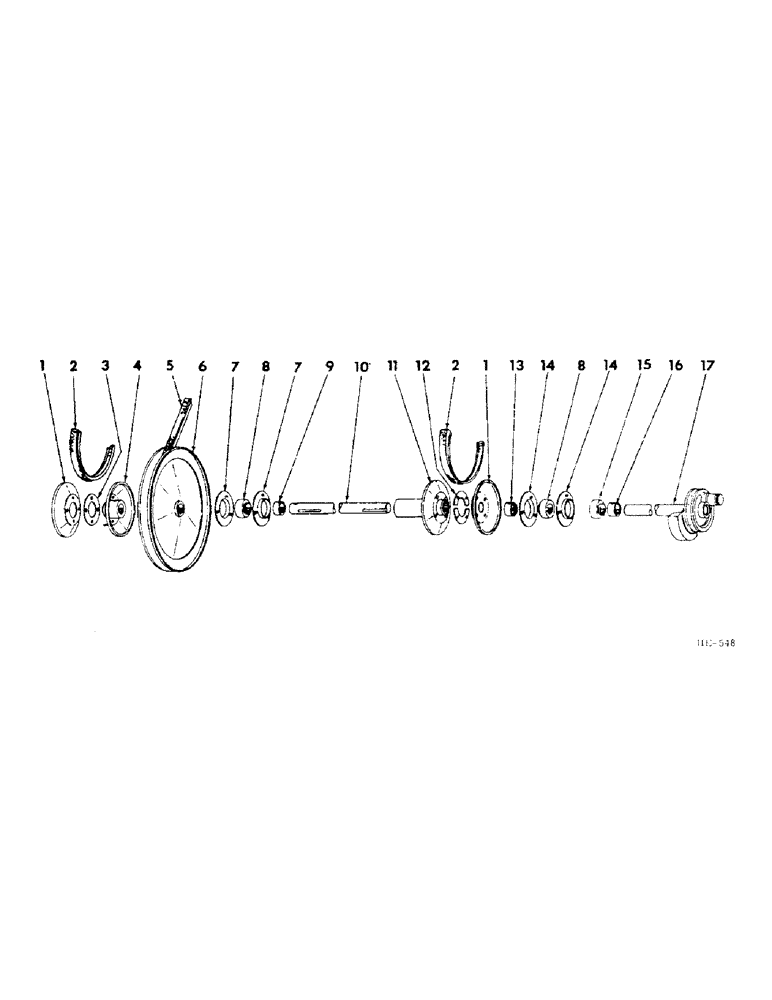

Запчасти Case IH 201 (E-039) - PLATFORM, PLATFORM DRIVE COUNTERSHAFT, 1968 AND SINCE (58) - ATTACHMENTS/HEADERS

1

592730R1

PULLEY

roller drive half

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

W/NUT, 5/16 x 1" C-Z type 2

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

592128R1

V-BELT,0.63" W x 78.08" L

Drive roller drive 0.63" W x 78.08" L

2шт.

3

21659K

RING

SPACER, roller drive pulley

6шт.

4

597716R1

PULLEY, roller drive RH

1шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

1шт.

5

591878R1

V-BELT,0.88" W x 139.40" L

Platform drive 0.88" W x 139.40" L

1шт.

6

597718R1

PULLEY, platform drive

1шт.

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2" tapered gib-hd

1шт.

7

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, main drive shaft bearing

2шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" C-Z crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

8

617668R91

BALL BEARING

main drive shaft

2шт.

9

557995R11

COLLAR

W/SCREW, bearing locking main drive shaft

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" cup-pt-set

1шт.

10

597715R1

SHAFT, main drive

1шт.

11

597722R1

PULLEY

platform roller drive LH

1шт.

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2" tapered gib-hd

1шт.

12

592127R1

SPACER

platform roller drive LH

12шт.

13

557995R11

COLLAR

W/SCREW, bearing locking flywheel shaft RH

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" cup-pt-set

1шт.

14

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, flywheel shaft right bearing (RH)

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

15

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

flywheel shaft LH (Fafnir, SKF & New Departure - use w/455104R11 collar)

1шт.

15

607418R91

BEARING

flywheel shaft LH (Fisher - use w/607419R11 collar)

1шт.

16

455104R11

COLLAR

W/SCREW, flywheel shaft LH (Fafnir, SKF & New Departure - use w/565672R91 bearing)

1шт.

16

607419R11

COLLAR

W/SCREW, flywheel shaft LH (Fisher - use w/607418R91 bearing)

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" cup-pt set

1шт.

17

597724R1

SHAFT, 10-1/2 ft platform knife flywheel

1шт.

17

597725R1

SHAFT, 13-1/2 ft platform knife flywheel

1шт.

17

597726R1

SHAFT, 16-1/2 ft platform knife flywheel

1шт.

17

597727R1

SHAFT, 19-1/2 ft platform knife flywheel

1шт.
