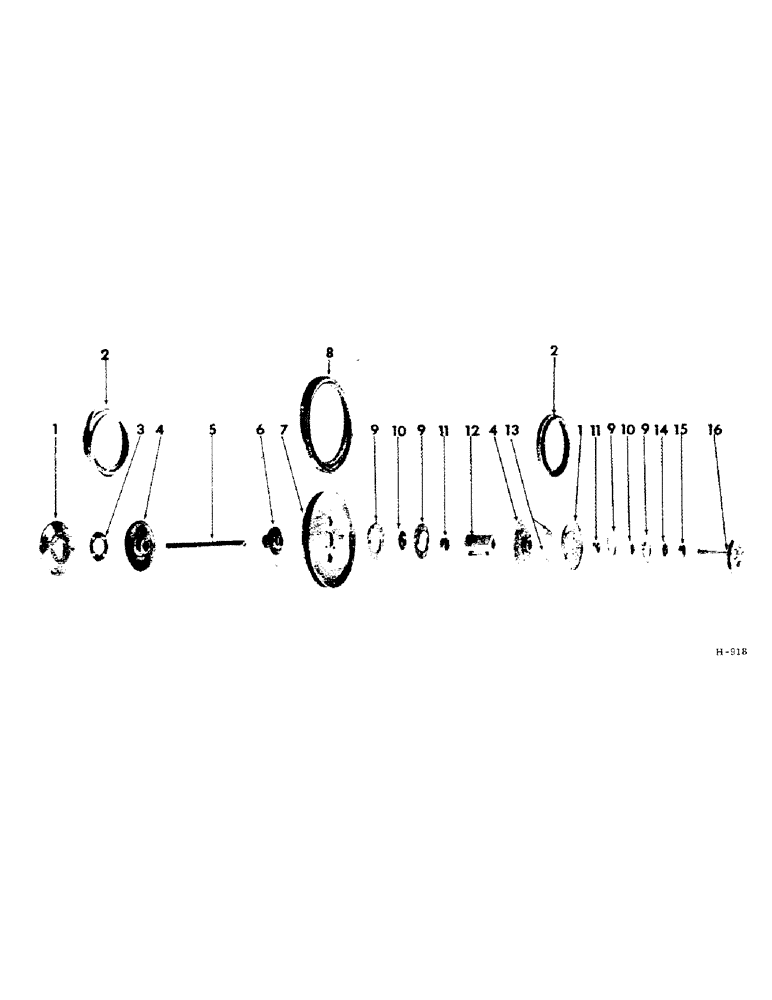

Запчасти Case IH 201 (E-038) - PLATFORM, PLATFORM DRIVE COUNTERSHAFT, 1965 TO 1967 (58) - ATTACHMENTS/HEADERS

1

592730R1

PULLEY

roller drive half

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

W/NUT, 5/16"-18 x 1-1/4" C-Z type 2

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

592128R1

V-BELT,0.63" W x 78.08" L

Drive roller drive 0.63" W x 78.08" L

2шт.

3

21659K

RING

SPACER, half pulley

6шт.

4

592122R1

PULLEY, platform roller drive

2шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

2шт.

117977

WOODRUFF KEY

KEY, 5/16 x 1" Woodruff

2шт.

5

592121R2

SHAFT, platform main drive (RH)

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

3шт.

6

592123R1

HUB, platform drive pulley

1шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

1шт.

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2" tapered gib-hd

1шт.

7

564568R11

PULLEY, platform drive

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

W/NUT, 5/16"-18 x 1-1/4" C-Z type 2

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

591878R1

V-BELT,0.88" W x 139.40" L

Platform drive 0.88" W x 139.40" L

1шт.

9

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, drive shaft brg

4шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" C-Z crg (RH)

3шт.

120377

NUT,3/8" - 16, Gr 5

(3-LH) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

10

617668R91

BALL BEARING

drive shaft flangette

2шт.

11

557995R11

COLLAR

W/SCREW, drive shaft brg locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

12

592124R1

COUPLING

main drive shaft

1шт.

117977

WOODRUFF KEY

KEY, 5/16 x 1" Woodruff

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

W/NUT, 3/8 x 1-1/4" C-Z type 2

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

592127R1

SPACER

half pulley

12шт.

14

587015R91

BALL BEARING

flywheel shaft (LH) (1965 season) (Fafnir - use w/455104R11 collar) (opt w/587013R91 bearing)

1шт.

14

587013R91

BEARING

flywheel shaft (LH) (1965 season) (New Departure - use w/455104R11 collar) (opt w/587015R91 bearing)

1шт.

14

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

flywheel shaft (LH) (1966 & since) (Fafnir, SKF, & New Departure - use w/455104R11 collar)

1шт.

14

607418R91

BEARING

flywheel shaft (LH) (1966 & since) (Fisher - use w/607419R91 collar)

1шт.

15

455104R11

COLLAR

W/SCREW, brg locking (Fafnir, SKF & New Departure - use w/587015R91, 587013R91, 565672R91 bearing)

1шт.

15

607419R11

COLLAR

W/SCREW, brg locking (Fisher - use w/607418R91 bearing)

1шт.

102592R1

SCREW, 3/8 x 3/8" hdls cup pt-set

1шт.

16

593241R21

SHAFT, 10-1/2 ft platform knife flywheel

1шт.

16

593242R21

SHAFT, 13-1/2 ft platform knife flywheel

1шт.

16

592125R21

SHAFT, 16-1/2 ft platform knife flywheel

1шт.

16

593243R21

SHAFT, 19-1/2 ft platform knife flywheel

1шт.
