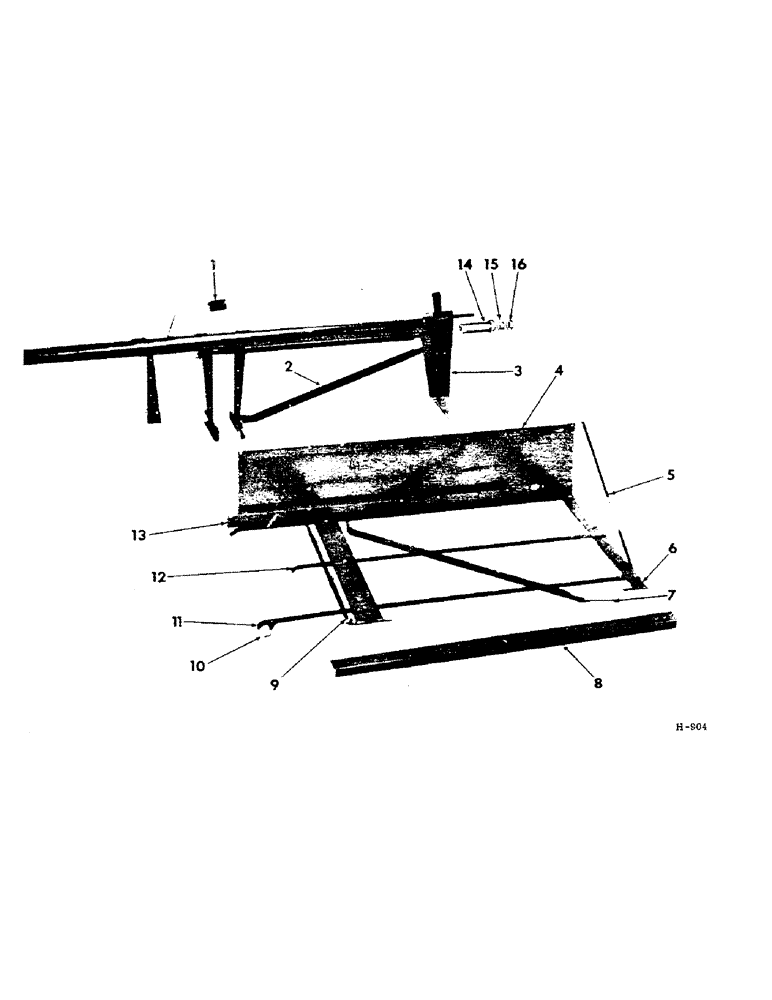

Запчасти Case IH 201 (E-036) - PLATFORM (58) - ATTACHMENTS/HEADERS

1

591795R1

CLAMP, upper pivot, Serial Range: (prior-1966)

2шт.

1

594187R1

CLAMP

upper pivot (1966 & since)

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2" C-Z type 2

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

592093R11

BRACE, rear diagonal (LH shown) (16-1/2 ft, & 19-1/2 ft platforms)

1шт.

2

592094R11

BRACE, rear diagonal (RH) (16-1/2 ft & 19-1/2 ft platforms)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

W/NUT, 3/8 x 1" C-Z type 2

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4" type 2 crg

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT W/NUT, 7/16 x 1-1/2" C-Z type 2

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

3

FRAME, 10-1/2 ft (1965 to 1967) (order 1-597711R1 frame & 1-597742R1 shield, refer to "reel drive")

1шт.

3

FRAME, 13-1/2 ft (1965 to 1967) (order 1-697712R1 frame & 1-597742R1 shield, refer to "reel drive")

1шт.

3

FRAME, 16-1/2 (1965 to 1967) (order 1-597713R1 frame & 1-597742R1 shield, refer to "reel drive")

1шт.

3

FRAME, 19-1/2 ft (1965 to 1967) (order 1-597714R1 frame & 1-597742R1 shield, refer to "reel drive")

1шт.

3

597711R1

FRAME, 10-1/2 ft (1968 & since)

1шт.

3

597712R1

FRAME, 13-1/2 ft (1968 & since)

1шт.

3

597713R1

FRAME, 16-1/2 ft (1968 & since)

1шт.

3

597714R1

FRAME, 19-1/2 ft (1968 & since)

1шт.

4

593233R1

SIDE, platform rear (LH shown) (10-1/2 ft)

1шт.

4

593234R1

SIDE, platform rear (RH) (10-1/2 ft)

1шт.

4

593235R1

SIDE, platform rear (LH) (13-1/2 ft)

1шт.

4

593236R1

SIDE, platform rear (RH) (13-1/2 ft)

1шт.

4

592114R1

SIDE, platform rear (LH) (16-1/2 ft)

1шт.

4

592115R1

SIDE, platform rear (RH) (16-1/2 ft)

1шт.

4

593237R1

SIDE, platform rear (LH) (19-1/2 ft)

1шт.

4

593238R1

SIDE, platform rear (RH) (19-1/2 ft)

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

W/NUT, 5/16 x 5/8" C-Z crg

22шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

W/NUT, 3/8 x 3/4" C-Z (19-1/2 ft only)

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

22шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (19-1/2 ft only) 3/8"

2шт.

5

592092R1

BAR, outer diagonal tie

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

W/NUT, 3/8 x 7/8" C-Z type 2 (RH)

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

W/NUT, 1/2 x 1-1/4" C-Z type 2

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

W/NUT, 1/2 x 2" C-Z type 2 (LH)

1шт.

120376

NUT,5/16"-18, G5

1/2" C-Z (LH)

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

592087R11

SUPPORT, outer (LH shown)

1шт.

6

592088R12

SUPPORT, outer (RH)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

W/NUT, 3/8 x 3/4" C-Z type 2

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 5/16 x 3/4" C-Z crg

2шт.

180144

RETAINER

BOLT W/NUT, 7/16 x 7/8" C-Z (RH)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

7

592097R11

SUPPORT, platform lower diagonal (LH shown) (16-1/2 ft & 19-1/2 ft)

1шт.

7

592098R1

SUPPORT, platform lower diagonal (RH) (16-1/2 ft & 19-1/2 ft)

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT W/NUT, 3/8 x 1" C-Z type 2 crg

2шт.

495968R1

BOLT,Short NK, 3/8"-16 x 1 1/8", G5, Full Thd

W/NUT, 3/8 x 1-1/8" C-Z type 2 crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

593217R1

ANGLE, front apron guide (LH shown) (13-1/2 ft)

1шт.

8

593218R1

ANGLE, front apron guide (RH) (13-1/2 ft)

1шт.

8

593219R1

ANGLE, front apron guide (LH) (19-1/2 ft)

1шт.

8

593220R1

ANGLE, front apron guide (RH) (19-1/2 ft)

1шт.

8

592107R1

ANGLE, front apron guide (LH) (16-1/2 ft)

1шт.

8

592108R1

ANGLE, front apron guide (RH) (16-1/2 ft)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8" type 2 (6-13-1/2 ft 10-16-1/2 ft, 14-19-1/2 ft)

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1" C-Z type 2

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1" C-Z type 2

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, (1 per bolt) 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

592085R21

SUPPORT, platform lift center

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

W/NUT, 7/16 x 1" C-Z type 2

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" C-Z crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

10

608727R2

REINFORCEMENT, apron support (LH shown)

1шт.

10

592110R1

REINFORCEMENT, apron support (RH)

1шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" C-Z crg

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

W/NUT, 3/8 x 1-1/4" C-Z crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

503221R1

SUPPORT, front apron (10-1/2 ft)

2шт.

11

593222R1

SUPPORT, front apron (13-1/2 ft)

2шт.

11

593223R1

SUPPORT, front apron (19-1/2 ft)

2шт.

11

592109R1

SUPPORT, front apron (16-1/2 ft)

2шт.

22478R1

BOLT W/NUT, 5/16 x 7/8" C-Z no 3 plow

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

593224R1

SUPPORT, center apron (10-1/2 ft)

2шт.

12

593225R1

SUPPORT, center apron (13-1/2 ft)

2шт.

12

593226R1

SUPPORT, center apron (19-1/2 ft)

2шт.

12

592111R1

SUPPORT, center apron (16-1/2 ft)

2шт.

22478R1

BOLT W/NUT, 5/16 x 7/8" C-Z no 3 plow

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

593227R1

SECTION, apron guide rear (LH shown) (10-1/2 ft)

1шт.

13

593228R1

SECTION, apron guide rear (RH) (10-1/2 ft)

1шт.

13

593229R1

SECTION, apron guide rear (LH) (13-1/2 ft)

1шт.

13

593230R1

SECTION, apron guide rear (RH) (13-1/2 ft)

1шт.

13

593231R1

SECTION, apron guide rear (LH) (19-1/2 ft)

1шт.

13

593232R1

SECTION, apron guide rear (RH) (19-1/2 ft)

1шт.

13

592112R2

SECTION, apron guide rear (LH) (16-1/2 ft)

1шт.

13

592113R2

SECTION, apron guide rear (RH) (16-1/2 ft)

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 5/16 x 3/4" C-Z crg (8-10-1/2 ft)

10шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

W/NUT, 5/16 x 5/8" C-Z crg (2-13-1/2 ft, 4-16-1/2 ft 6-19-1/2 ft)

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 3/8 x 3/4" C-Z crg (2-16-1/2 ft & 19-1/2 ft)

1шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" C-Z crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, (1-per bolt) 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per washer, lock, 3/8" bolt 3/8"

1шт.

14

594376R1

PIPE, crankshaft bearing support (LH) (1966 & since) (to be welded to platform frame (LH) (order w/1-565672R91 bearing & 1-455104R11 collar)

1шт.

15

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

flywheel shaft (Fafnir, SKF, & New Departure - use w/455104R11 collar)

1шт.

15

607418R91

BEARING

flywheel shaft (Fisher - use w/607418R11 collar)

1шт.

16

455104R11

COLLAR

W/SCREW, bearing locking (Fafnir, SKF & New Departure - use w/565672R91 bearing)

1шт.

16

607419R11

COLLAR

W/SCREW, bearing locking (Fisher - use w/607418R91 bearing)

1шт.

102592R1

SCREW, 3/8 x 3/8" cup-pt-set

1шт.
