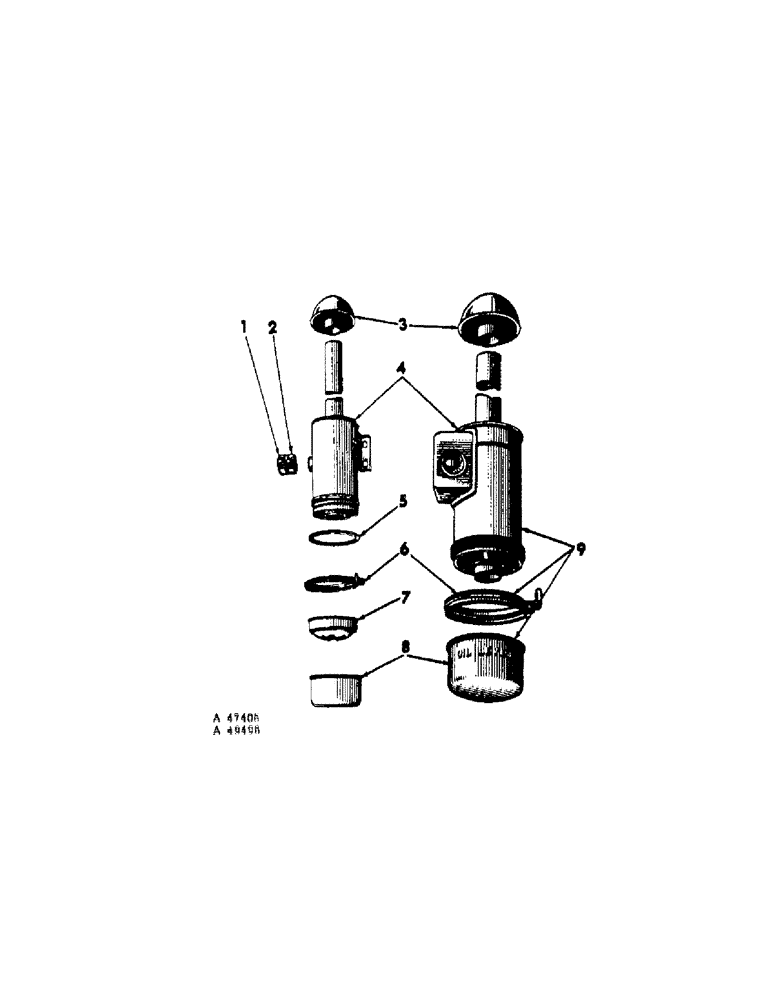

Запчасти Case IH 201 (A-014) - AIR CLEANER (10) - ENGINE

1

366322R1

INTAKE AIR HOSE,1.62" ID x 1.56", SAE 20R1 Class R

Air Cleaner 1.62" ID x 1.56", SAE 20R1 Class R

1шт.

2

366323R1

CLAMP, air cleaner hose

2шт.

3

361723R91

CAP

intake pipe

1шт.

4

BODY, (order 1-366321R91, cleaner) (NSS)

1шт.

5

361063R1

GASKET, air cleaner

1шт.

United Specialties

1шт.

6

358147R1

CLAMP, oil cup retaining

1шт.

United Specialties

1шт.

6

66357DA

CLAMP

oil cup retaining

1шт.

Donaldson

1шт.

7

358145R1

BAFFLE, air cleaner

1шт.

United Specialties

1шт.

8

358146R1

CUP, oil

1шт.

United Specialties

1шт.

8

352597R91

BOWL

CUP, oil

1шт.

Donaldson

1шт.

9

366321R91

CLEANER

AIR CLEANER (includes clamp, 66357DA & coup, 352597R91)

1шт.

Donaldson

1шт.

25954D

STUD, cleaner mounting

2шт.

Q1597

WASHER

WASH, 13/32 x 3/4 x 16 ga

2шт.

NUT, 3/8" - NF

2шт.

LK-WASH, 3/8"

2шт.
