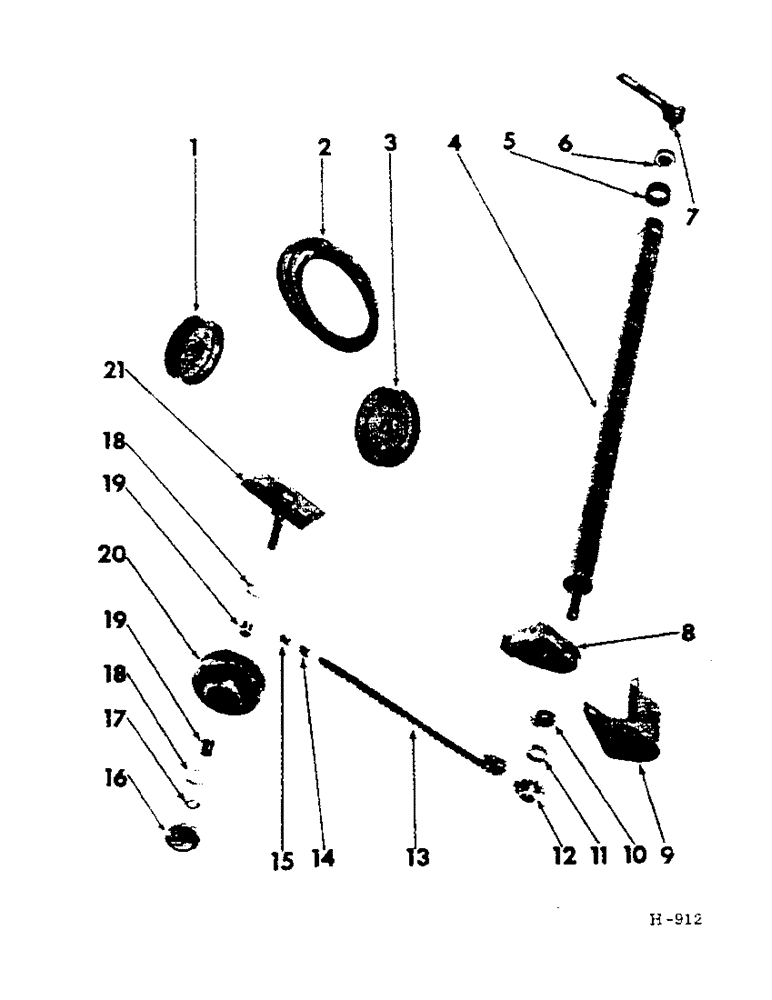

Запчасти Case IH 201 (E-035) - PLATFORM, PLATFORM DRIVE ROLLER (58) - ATTACHMENTS/HEADERS

1

559292R93

PULLEY

belt tightener lower

2шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

W/NUT, 1/2 x 2-1/2" C-Z crg

2шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq-hole x 1-1/4 x 11 ga C-Z

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

592128R1

V-BELT,0.63" W x 78.08" L

Drive roller drive 0.63" W x 78.08" L

2шт.

3

559087R92

PULLEY

belt tightener upper

2шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

W/NUT, 1/2 x 2-1/4" C-Z crg

2шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq-hole x 1-1/4 x 11 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

592137R91

ROLLER

platform drive

2шт.

5

592142R1

RETAINER

front brg rubber

2шт.

6

592141R91

ROLLER BEARING,17.65mm Hex x 47mm OD x 20.95mm W

drive roller front

1шт.

7

592139R11

SUPPORT

roller front bearing

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1" C-Z type 2

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

592143R1

HOUSING, rear brg (LH shown)

1шт.

8

592144R1

HOUSING

rear brg (RH)

1шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

592145R1

REINFORCEMENT, housing shield (LH shown)

1шт.

9

592146R1

REINFORCEMENT, housing shield (RH)

1шт.

133043

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4" slt-rd-hd

2шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

W/NUT, 5/16 x 5/8" C-Z crg

4шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

BEARING, countershaft (for SKF bearing 1706205100 only - order 1-455965R91 bearing & 1-455102R11 collar)

2шт.

10

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

counter shaft (Fafnir, SKF & New Departure - for use w/455102R11 collar)

2шт.

10

607416R91

BEARING

countershaft (Fisher - for use w/607417R11 collar)

2шт.

11

COLLAR W/SCREW, brg locking (for SKF collar LC100 only - order 1-455965R91 bearing & 1-455102R11 collar)

2шт.

11

455102R11

COLLAR

W/SCREW, brg locking (Fafnir, SKF & New Departure - for use w/455965R91 bearing)

2шт.

11

607417R11

COLLAR

W/SCREW, brg locking (Fisher - for use w/607416R91 bearing)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls sup-pt-set

2шт.

12

607674R1

SPROCKET ASSY.

SPROCKET, 14T drive roller drive

2шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

2шт.

13

CHAIN, 1/2" agricultural roller chain roller drive (for service order 1-1790D 10 ft length of chain, reduce to 41 links & add 1-1303D offset link & 1-1301D connecting link)

2шт.

14

1303D

LINK

chain offset

2шт.

15

1301D

CHAIN LINK

LINK, chain connecting

2шт.

16

663908R1

CAP

sprocket covering

2шт.

17

269181R1

SNAP RING,#75, Ext

Ring, Snap, , front PTO shaft, pulley #75, Ext

2шт.

18

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

4шт.

19

592135R1

BUSHING

lower driven pulley

4шт.

20

592132R91

PULLEY & SPROCKET, lower driven (includes 592135R1 bushing)

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

LUB-FITTING, 1/4"

2шт.

21

592129R91

BRACKET, lower driven pulley

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

W/NUT, 3/8 x 1-1/4" C-Z crg

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
