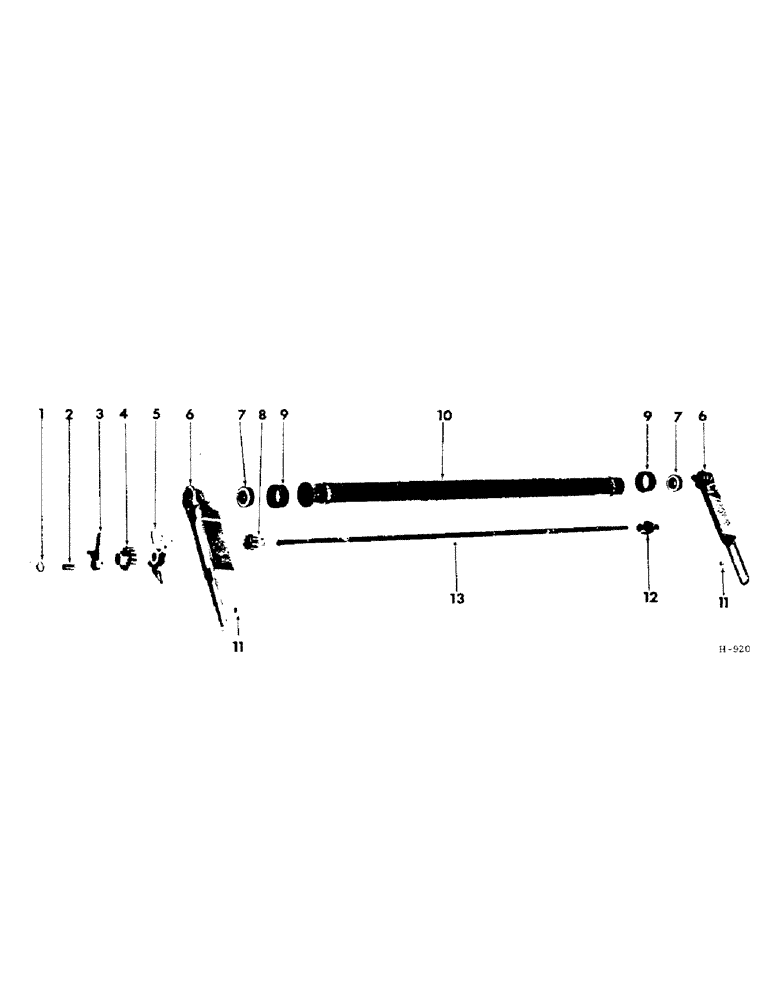

Запчасти Case IH 201 (E-034) - PLATFORM, PLATFORM IDLER ROLLER (58) - ATTACHMENTS/HEADERS

1

608748R1

SPRING

pawl hold-down (LH shown)

1шт.

1

609052R1

SPRING, pawl hold-down (RH)

1шт.

2

608747R1

SPACER, ratchet pawl

2шт.

3

618613R2

PAWL, ratchet

2шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2" C-Z type 2

2шт.

134238R1

WASHER

11/32 x 1" x 16 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

618614R1

RATCHET, roller tightener (RH)

1шт.

4

618615R1

RATCHET, roller tightener (LH shown)

1шт.

618638R1

PIN,3/16" x 1 1/8", Coiled

2шт.

5

608746R1

BRACKET, roller alignment

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

LUB-FITTING, 1/4"

2шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" C-Z crg

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

592148R11

SUPPORT

left front & right rear

2шт.

6

592149R11

SUPPORT, left rear & right front

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

W/NUT, 5/16"-18 x 1-1/4" C-Z type 2

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1" C-Z type 2

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

592141R91

ROLLER BEARING,17.65mm Hex x 47mm OD x 20.95mm W

idler roller front & rear

4шт.

8

618611R1

PINION

rack rear

2шт.

364437R1

PIN,3/16" x 7/8", Coiled

2шт.

9

592142R1

RETAINER

front & rear brg rubber

4шт.

10

592147R1

TUBE,2.25" OD, 40.94" Length

PIPE, idler roller

2шт.

11

86224H

SPACER,1/4" Pipe x 3/8"

Brg support 1/4" Pipe x 3/8"

4шт.

12

618612R1

PINION

rack front

2шт.

364437R1

PIN,3/16" x 7/8", Coiled

2шт.

13

608745R1

SHAFT, rack pinion

2шт.

597123R92

APRON

canvas 13-1/2 ft

2шт.

597119R92

APRON

canvas 16-1/2 ft

2шт.

597120R92

APRON

canvas 19-1/2 ft

2шт.
