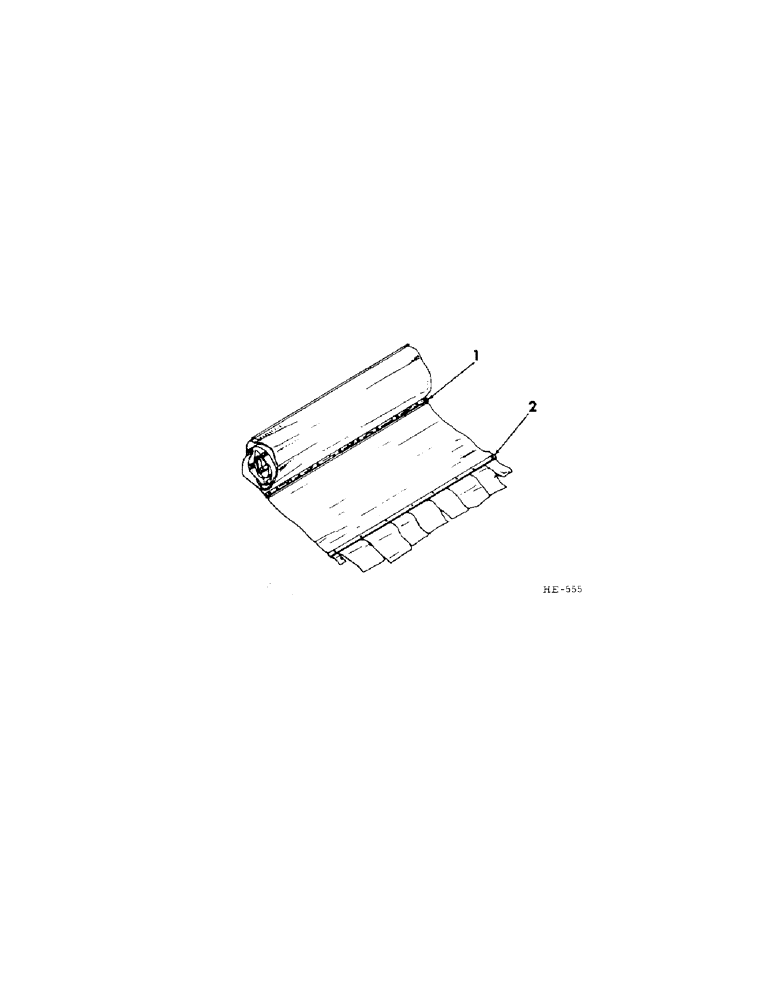

Запчасти Case IH 201 (E-034[1]) - PLATFORM APRON, REGULAR (58) - ATTACHMENTS/HEADERS

1

618633R2

NO LONGER SERVICED

SLAT, apron

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

.186 x 9/16" cop-tub

1шт.

20319R1

RIVET

.186 x 1/2" cop-tub

1шт.

451312R1

STAPLE

double pointed

1шт.

2

612288R21

BAR ASSY.

BAR, connecting (includes 9-132926 screw, 9-120614 nut & 9-120217 lk-washer)

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

no 10 x 1-1/4" slt-rd-hd C-Z

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.
