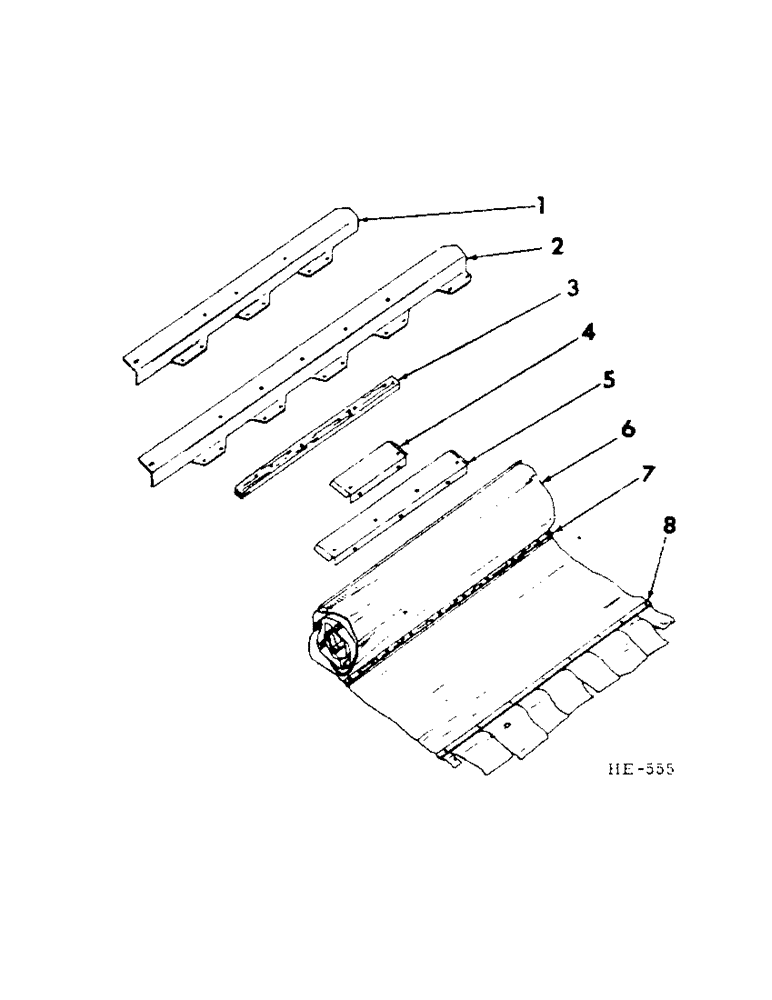

Запчасти Case IH 201 (E-033) - PLATFORM, SELF CLEANING NARROW APRON, REGULAR FOR 10-1/2 FT (58) - ATTACHMENTS/HEADERS

1

593270R1

GUARD

SHIELD, apron front (LH) (10-1/2 ft)

1шт.

1

593271R1

GUARD

SHIELD, apron front (RH shown) (10-1/2 ft)

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

W/NUT, 1/4 x 1/2" C-Z sltd

2шт.

19674R1

PIN,2.36mm OD x 25.4mm L, Coiled

BOLT W/NUT, 5/16 x 1-1/2" C-Z crg

6шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

594380R1

SHIELD, apron front (LH) (13-1/2 ft)

1шт.

2

594381R1

SHIELD, apron front (RH shown) (13-1/2 ft)

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

W/NUT, 1/4 x 1/2" C-Z rd-hd-sltd

2шт.

19674R1

PIN,2.36mm OD x 25.4mm L, Coiled

BOLT W/NUT, 5/16 x 1-1/2" C-Z crg

8шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

609938R1

RUNNER

apron guide (10-1/2 ft shown)

2шт.

3

594379R1

RUNNER, apron guide (13-1/2 ft)

2шт.

19674R1

PIN,2.36mm OD x 25.4mm L, Coiled

BOLT W/NUT, 5/16 x 1-1/2" C-Z crg

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

609933R1

SUPPORT, canvas apron (10-1/2 ft)

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8" C-Z type 2

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

594378R1

SUPPORT, canvas apron (13-1/2 ft)

2шт.

19674R1

PIN,2.36mm OD x 25.4mm L, Coiled

BOLT W/NUT, 5/16 x 1-1/2" C-Z crg

8шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

8шт.

6

597125R91

NO LONGER SERVICED

APRON, canvas 10-1/2 ft (includes 609955R11, connecting bar, 609954R2, slats, 451312R1, staples Q3569 & 20319R1 rivets)

2шт.

6

597127R92

APRON

canvas 13-1/2 ft (includes 609955R11 connecting bar, 609954R2 slats, 451312R1 staples, Q3569 & 20319R1 rivets)

2шт.

7

609954R2

SLAT

apron

1шт.

451312R1

STAPLE

double pointed

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

.186 x 9/16" cop tub

1шт.

20319R1

RIVET

.186 x 1/2 cop tub

1шт.

8

609955R11

BAR

connecting (includes 132926 screw, 120614 nut & 120217 lk- washer)

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

10 x 1-1/4" C-Z rd-hd sltd

18шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

18шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

18шт.
