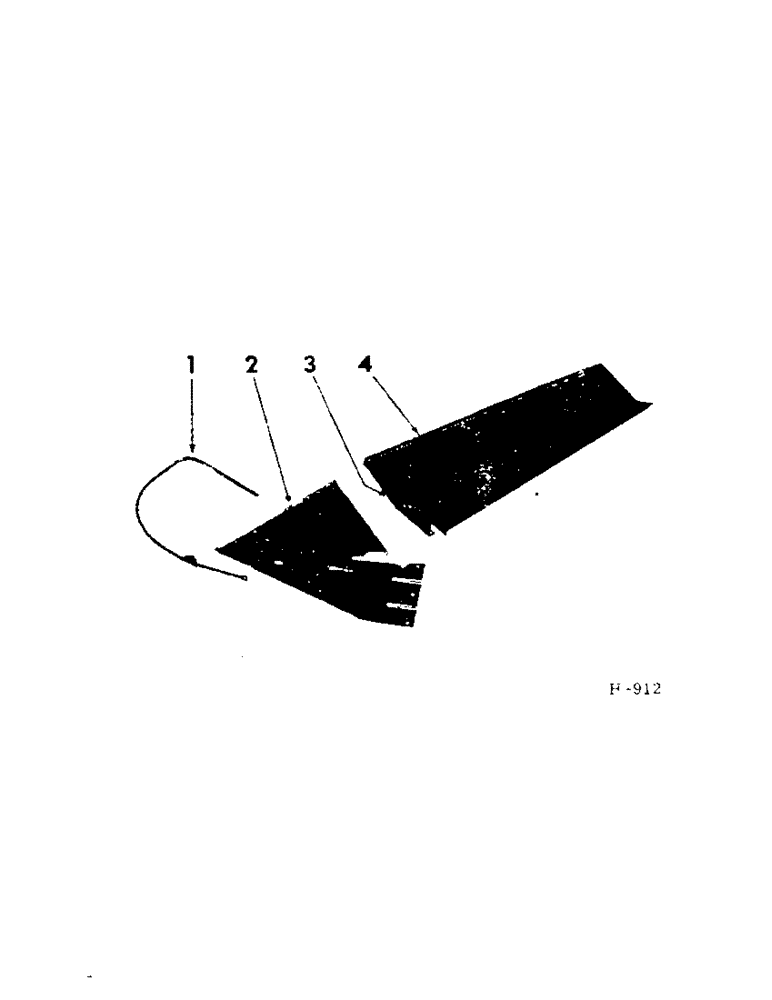

Запчасти Case IH 201 (E-033[1]) - PLATFORM DIVIDER AND FENDER ROD (58) - ATTACHMENTS/HEADERS

1

592196R92

ROD, divider fender (LH shown)

1шт.

1

592197R92

ROD

divider fender (RH)

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" C-Z crg

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

592119R11

DIVIDER, platform side (LH), Serial Range: (prior-1966)

1шт.

2

593239R11

DIVIDER

platform side (LH shown) (1966 & since)

1шт.

2

592120R11

DIVIDER, platform side (RH), Serial Range: (prior-1966)

1шт.

2

693240R11

DIVIDER, platform side (RH) (1966 & since)

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

W/NUT, 1/4 x 1/2" C-Z type 2

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT W/NUT, 3/8 x 1" C-Z type 2 (2-LH)

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4" C-Z type 2 crg (1-LH, 2-RH)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (3-LH, 2-RH) 3/8"

1шт.

3

592118R2

REINFORCEMENT, divider (LH shown)

1шт.

3

607645R1

REINFORCEMENT, divider (RH)

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

W/NUT, 1/4 x 1/2" C-Z type 2

4шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

W/NUT, 5/16 x 5/8" C-Z type 2 (1-LH & 3-RH)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

W/NUT, 5/16 x 3/4" C-Z type 2 (2-LH)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

592116R2

SIDE ASSY.

SIDE, platform (LH shown)

1шт.

4

592117R2

SIDE, platform (RH)

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

W/NUT, 1/4 x 1/2" C-Z type 2

6шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

W/NUT, 5/16 x 5/8" C-Z type 2

2шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

W/NUT, 5/16 x 5/8" C-Z crg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" C-Z crg

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
