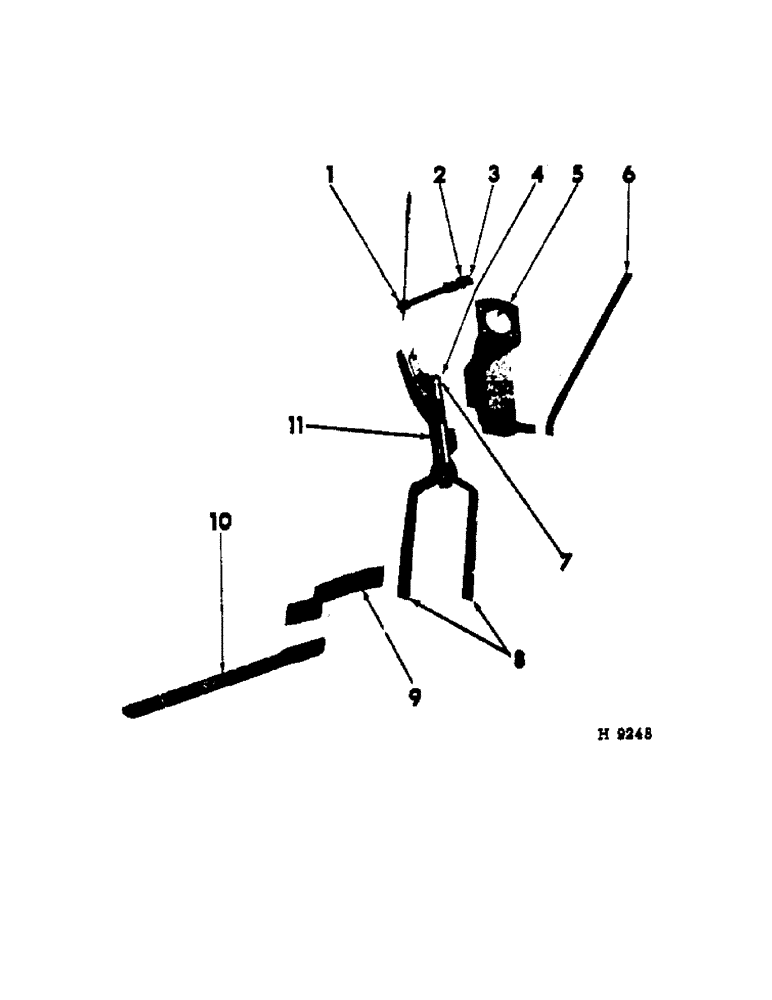

Запчасти Case IH 201 (D-036) - TRANSPORT CASTER WHEEL SUPPORT, TRANSPORTING ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

609099R11

SCREW, wheel lifting

1шт.

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

LUB-FTG, 5/16" drive

1шт.

WASH, 29/32 x 1-1/2 x 16 ga

1шт.

C-PIN, 3/16 x 1-1/2"

1шт.

2

66991R91

BEARING, lifting screw thrust

1шт.

3

609103R1

PIVOT, lifting screw

1шт.

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

LUB-FTG, 5/16" drive

1шт.

4

619930R1

BUSHING

COLLAR, caster wheel barrel

1шт.

19525R1

PIN,3/8" x 2 3/4", Coiled

1шт.

5

609087R91

BRACKET, caster wheel support

1шт.

BOLT W/NUT, 1/2 x 1-1/4" type 2 cd-pltd crg

3шт.

BOLT W/NUT, 1/2 x 1-5/8" cd-pltd type 2

1шт.

LK-WASH, 1/2" cd-pltd

4шт.

6

609093R1

ANGLE, pivot brace diagonal

1шт.

BOLT W/NUT, 1/2 x 1" cd-pltd type 2

1шт.

BOLT W/NUT, 1/2 x 1-5/8" cd-pltd type 2

1шт.

LK-WASH, 1/2" cd-pltd

2шт.

7

PO13472

WASHER, 2-1/32 x 3 x 11 ga axle

1шт.

8

609104R91

AXLE, caster wheel

1шт.

9

609107R11

STRAP, towing bar

2шт.

BOLT W/NUT, 3/4 x 2-3/4" cd-pltd type 2

2шт.

LK-WASH, 3/4" cd-pltd

2шт.

10

609109R11

BAR, towing

1шт.

BOLT W/NUT, 3/4 x 2-3/4" cd-pltd type 2

2шт.

BOLT W/NUT, 3/4 x 3-1/2" cd-pltd type 2

1шт.

LK-WASH, 3/4" cd-pltd

3шт.

11

609094R91

BARREL, caster wheel

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

BOLT W/NUT, 5/8 x 4-1/2" cd-pltd type 2

2шт.

LK-WASH, 5/8" cd-pltd

2шт.
