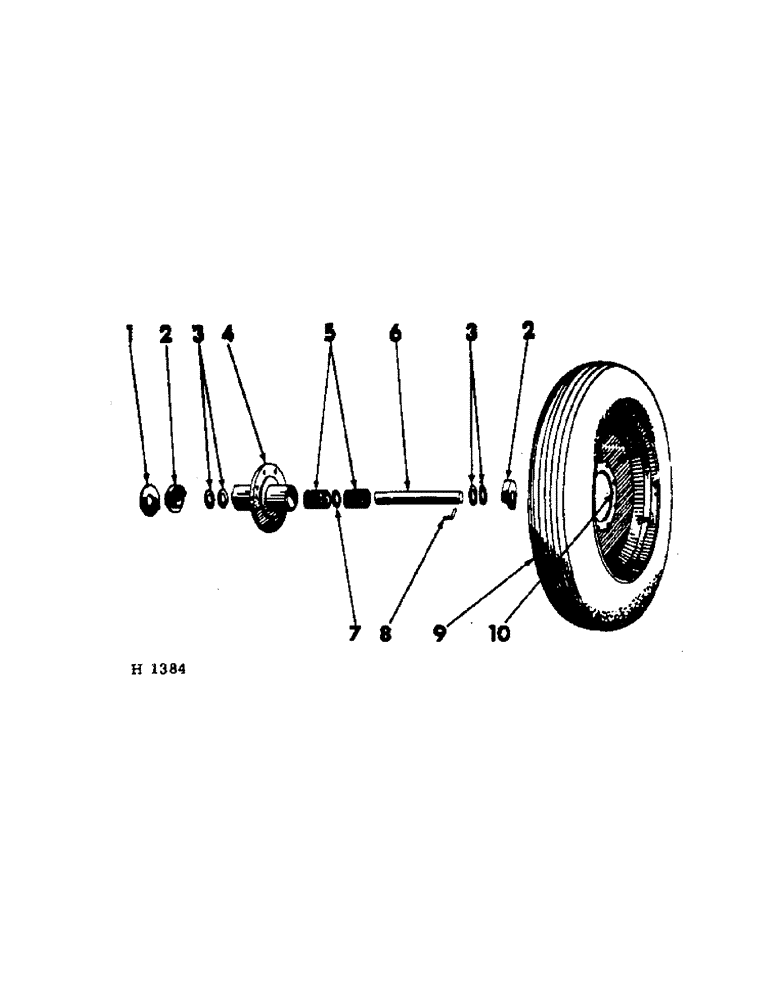

Запчасти Case IH 201 (D-036[A]) - TRANSPORT CASTER WHEEL, TRANSPORTING ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

601200R91

CLAMP, caster wheel wash

1шт.

2

619272R1

SHIELD, axle dirt

2шт.

3

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

2шт.

3

615292R1

WASHER, 1-13/32 x 2-3/4 x 14 ga

2шт.

4

619271R1

HUB, caster wheel

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

618114R91

BEARING

wheel hub roller

2шт.

6

609106R1

AXLE, caster wheel

1шт.

C-PIN, 3/8 x 2-1/4"

1шт.

7

PO23758

WASHER, 1-13/32 x 2-3/4 x 11 ga

2шт.

8

601194R1

PIN, axle retaining

1шт.

9

TIRE & TUBE, 6.70 x 15"

1шт.

10

455169R92

WHEEL

DISK & RIM, 4.50 x 15"

1шт.

371079R1

BOLT, wheel

4шт.
