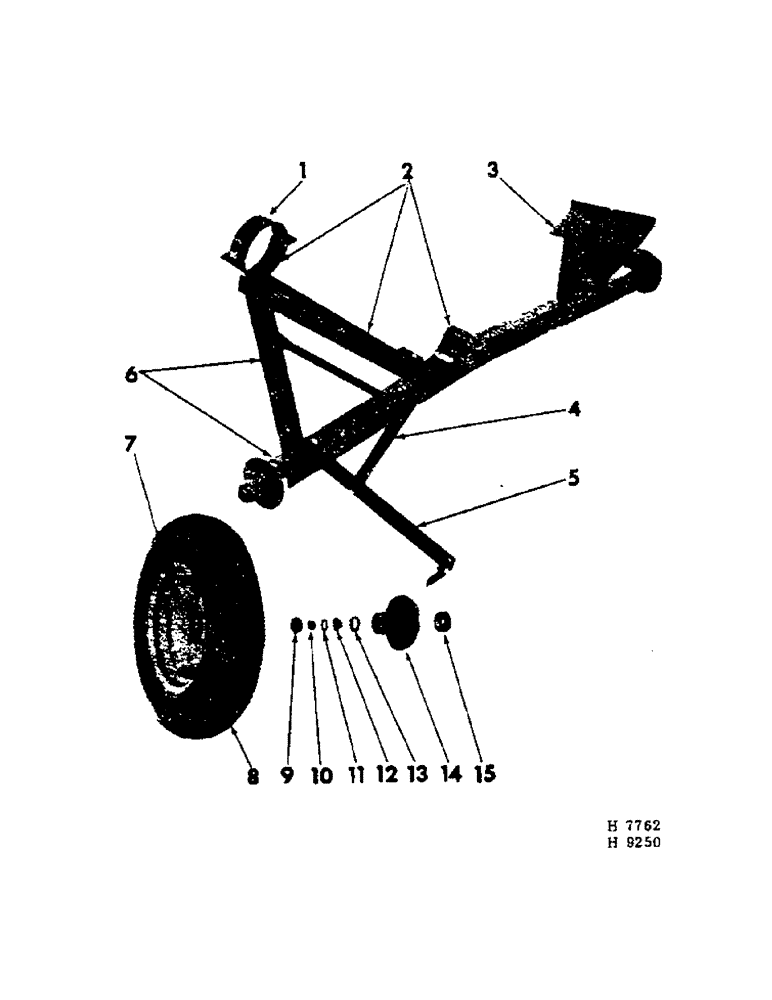

Запчасти Case IH 201 (D-035) - TRANSPORTING MAIN AXLE, TRANSPORTING ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

609060R1

BAR, main frame clamping

2шт.

.

BOLT W/NUT, 1/2 x 1-1/8" cd-pltd type 2

4шт.

.

LK-WASH, 1/2" cd-pltd

4шт.

2

609057R91

BRACKET, axle pivot

1шт.

.

BOLT, 5/8 x 3-1/2" cd-pltd type 2

1шт.

.

LK-WASH, 5/8" cd-pltd

1шт.

3

609074R91

SUPPORT, axle front

1шт.

.

BOLT W/NUT, 1/2 x 1-1/4" type 2 cd-pltd crg

2шт.

.

BOLT W/NUT, 1/2 x 4-1/2" cd-pltd type 2

2шт.

.

WASH, 17/32 x 1 x 11 ga cd-pltd

4шт.

.

LK-WASH, 1/2" cd-pltd

4шт.

4

609061R1

BAR, axle diagonal upr

1шт.

.

BOLT W/NUT, 5/8 x 1-3/4" cd-pltd type 2 (upr)

1шт.

.

BOLT W/NUT, 5/8 x 1-7/8" cd-pltd type 2 (lower)

1шт.

.

LK-WASH, 5/8" cd-pltd

2шт.

5

609062R91

PIVOT, axle diagonal

1шт.

.

517843R1

COTTER PIN

C-PIN, quick-attachable

1шт.

.

PIN, 1/2 x 1-3/8" std-hd dld

1шт.

.

BOLT W/NUT, 5/8 x 1-3/4" cd-pltd type 2

1шт.

.

LK-WASH, 5/8" cd-pltd

1шт.

6

609066R91

AXLE transporting main

1шт.

7

455169R92

WHEEL

DISK & RIM, 4.50 x 15"

2шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

8шт.

8

TIRE & TUBE, 6.70 x 15"

2шт.

9

602959R1

PLUG

CAP, wheel hub

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/8"-NF slt axle

2шт.

.

C-PIN, 5/32 x 1-1/2"

2шт.

11

NLS

NO LONGER SERVICED

13/16 x 1-1/2 x .134"

2шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, axle outer brg

2шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

13

651814R91

CUP, axle outer brg

2шт.

14

619353R1

HUB

wheel

2шт.

15

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, axle inner

2шт.
