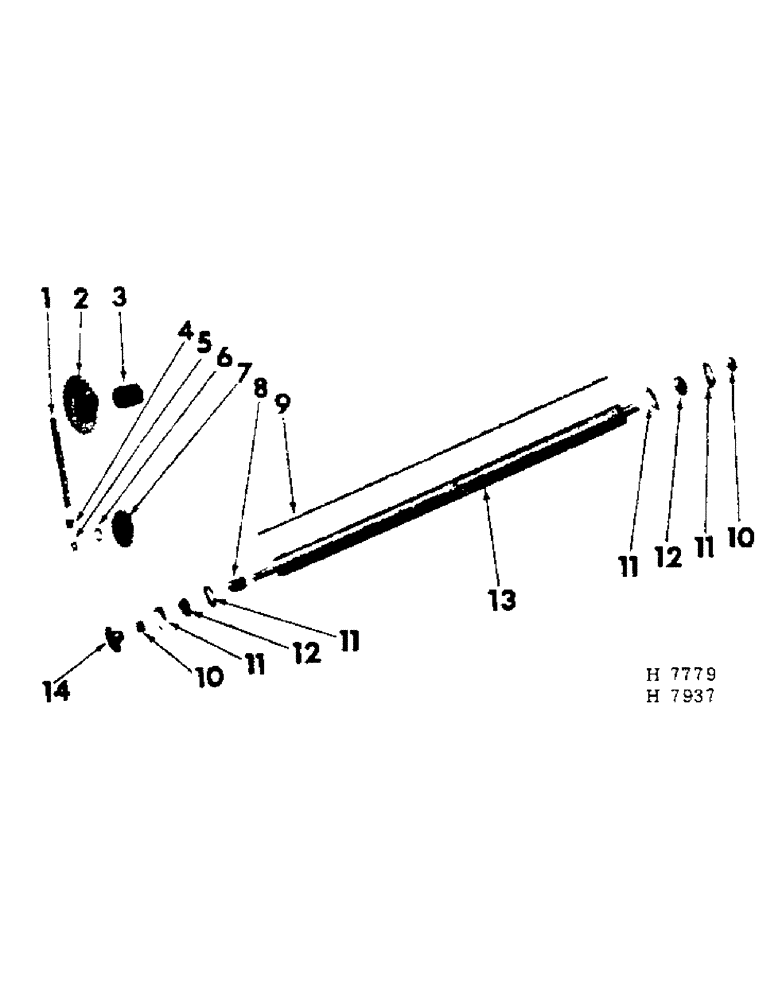

Запчасти Case IH 201 (D-033) - DRIVE ROLLER, REAR DELIVERY CONVEYOR (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
CHAIN, 1/2" pitch roller type (prior to 1964) (for service order 1-1790D, 10 ft length of chain, reduce to 123 links, add 1-1301D, connecting link & 1-1303D, offset link)
1шт.
1
CHAIN, 1/2" pitch roller type (1964 & since) (for service order 1-1790D, 10 ft length of chain, reduce to 139 links, add 1-1301D, connecting link & 2-1303D, offset links)
1шт.
2
607778R11
SPROCKET, roller drive
1шт.
617941R1
PIN,5/16" x 2", Coiled
1шт.
3
607777R1
BUSHING, pitman crankshaft
1шт.
4
1303D
LINK
drive chain offset
2шт.
1304D
PIN, offset link
1шт.
1390D
PIN
C-PIN, 1/4 lb pkg
1шт.
5
1301D
CHAIN LINK
LINK, drive chain connecting
1шт.
1759D
CLIP, connecting link
1шт.
6
607896R1
SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole
17/32 sq-hole x 1-1/4 x 16 ga cd-pltd
2шт.
7
607779R91
DRIVE SPROCKET
SPROCKET, chain tightener
2шт.
BOLT, 1/2 x 1-3/4" cd-pltd mach (upr)
1шт.
BOLT W/NUT, 1/2 x 1-3/4" cd-pltd crg (lower)
1шт.
WASH, 17/32 x 1-1/4 x 16 ga cd-pltd (4-upr)
1шт.
LK-WASH, 1/2" cd-pltd
2шт.
8
607783R1
SPACER,1" Pipe x 1850"
roller shaft (prior to 1965)
1шт.
8
591730R1
SPACER,1" Pipe x13"
roller shaft (1965 & since)
1шт.
9
607770R2
ROD, drive roller support stay
1шт.
NUT, 7/16"
4шт.
10
455102R11
COLLAR
brg locking (includes 102569, screw) (use w/455965R91, brg)
2шт.
10
610541R11
COLLAR
brg locking (includes 102569, screw) (use w/610540R91, brg)
2шт.
11
612031R1
FLANGED BEARING
TTE, brg
4шт.
BOLT W/NUT, 5/16 x 3/4" crg
2шт.
BOLT W/NUT, 5/16 x 3/4" no. 3 plow
2шт.
LK-WASH, 5/16"
4шт.
12
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
roller (use w/455102R11, collar)
2шт.
12
610540R91
BEARING
roller (use w/610541R11, collar)
2шт.
13
607781R91
ROLLER
drive, Serial Range: (prior-1965)
1шт.
13
591737R91
ROLLER, drive (1965 & since)
1шт.
14
607672R11
SPROCKET, 19T roller driven
1шт.
19442R1
PIN,3/16" x 1 1/2", Coiled
5/16 x 1-1/2" hv-coiled-spg
1шт.
Выбрано товаров: 34
