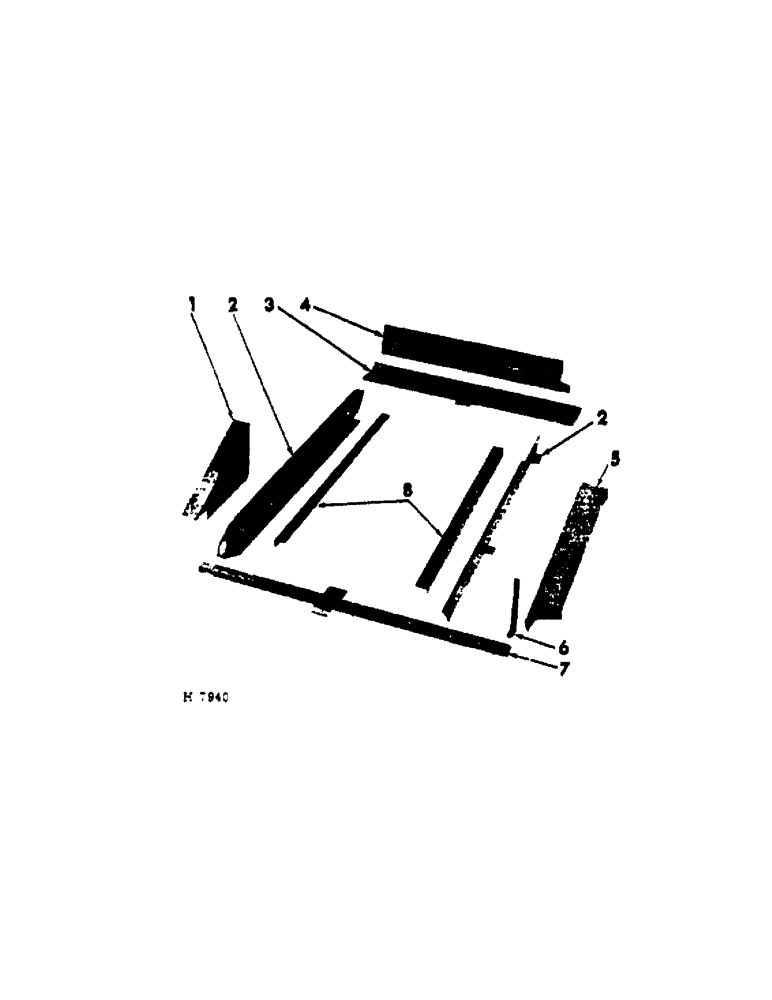

Запчасти Case IH 201 (D-032) - CONVEYOR FRAME, REAR DELIVERY CONVEYOR (58) - ATTACHMENTS/HEADERS

1

607775R1

SHIELD, conveyor drive chain

1шт.

BOLT W/NUT, 1/4 x 1/2" cd-pltd crg

1шт.

BOLT W/NUT, 5/16 x 1/2" cd-pltd crg

5шт.

LK-WASH, 1/4"

1шт.

LK-WASH, 5/16"

5шт.

2

607761R21

SUPPORT, roller LH

1шт.

2

607762R21

SUPPORT, roller RH

1шт.

616422R1

WASH, special sq-hole (2-LH)

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

4шт.

BOLT W/NUT, 3/8 x 3/4" crg (LH)

1шт.

BOLT W/NUT, 3/8 x 7/8" crg (3-LH)

1шт.

LK-WASH, 5/16"

4шт.

LK-WASH, 3/8" (4-LH)

1шт.

3

607771R11

SHIELD, stone

1шт.

BOLT W/NUT, 5/16 x 7/8" crg

5шт.

LK-WASH, 5/16"

5шт.

4

607773R11

SHIELD, idler roller

1шт.

BOLT W/NUT, 5/16 x 7/8" crg

5шт.

LK-WASH, 5/16"

5шт.

5

607776R1

DEFLECTOR, delivery RH

1шт.

BOLT W/NUT, 5/16 x 1/2" cd-pltd crg

3шт.

LK-WASH, 5/16" cd-pltd

3шт.

6

607769R1

BRACE, channel support

1шт.

BOLT W/NUT, 5/16 x 1" cd-pltd crg

1шт.

BOLT W/NUT, 3/8 x 1-1/8" cd-pltd crg

1шт.

WASH, 13/32 x 1 x 16 ga cd-pltd

1шт.

LK-WASH, 5/16" cd-pltd

1шт.

LK-WASH, 3/8" cd-pltd

1шт.

7

607767R11

BRACE, channel

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

2шт.

LK-WASH, 5/16"

2шт.

8

607765R1

ANGLE, canvas upr LH

1шт.

8

607766R1

ANGLE, canvas upr RH

1шт.
