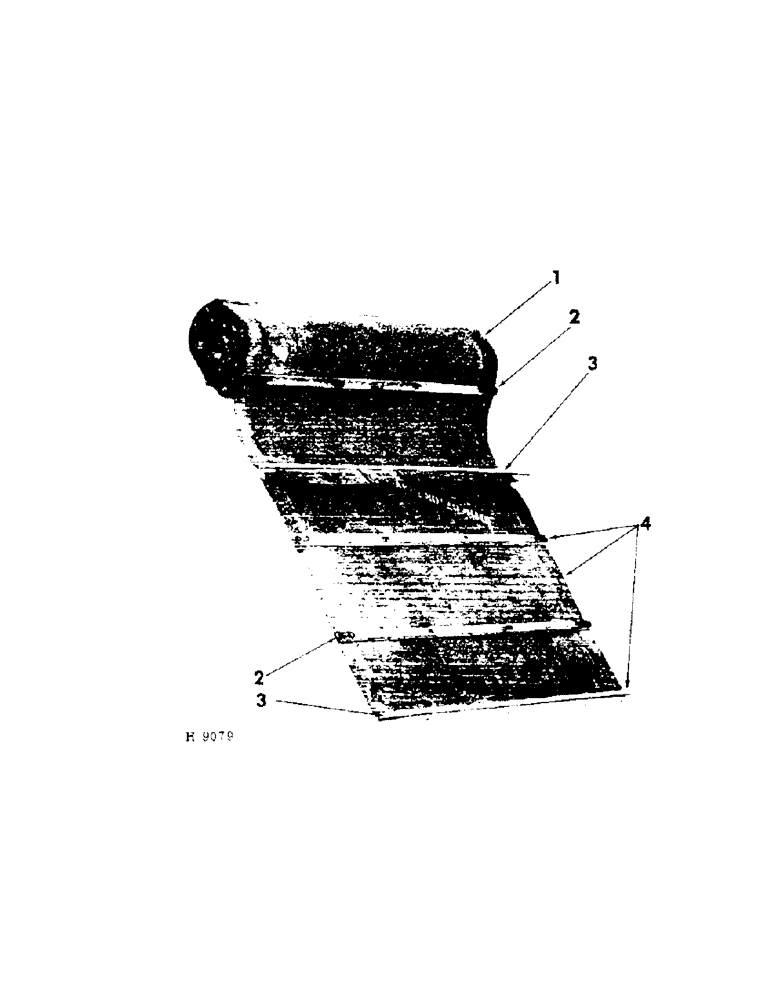

Запчасти Case IH 201 (D-031[A]) - PLATFORM APRON, 1965 AND SINCE, DOUBLE SWATH ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

591733R91

APRON, swath platform (42" width) composed of: (1) bar 612288R21, (1) canvas (NSS), (48) rivet 20319R1, (96) rivet Q3569, (24) slat 618633R1, (408) staple 451312R1

1шт.

2

618633R1

NO LONGER SERVICED

SLAT, apron canvas

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

special copper

1шт.

20319R1

RIVET

special copper

1шт.

451312R1

STAPLE

special wire

1шт.

3

612288R21

BAR ASSY.

BAR, apron connecting (includes 120614, nuts; 132926, screws & 120217, washers)

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

no. 10-NF x 1-1/4" cd-pltd slt-rd-hd

18шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

18шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

18шт.

4

591734R91

APRON, swath extension composed of: (1) bar 612288R21, (1) canvas (NSS), (12) rivet Q3569, (6) rivet 20319R1, (3) slat 618633R1, (51) staple 451312R1

1шт.
