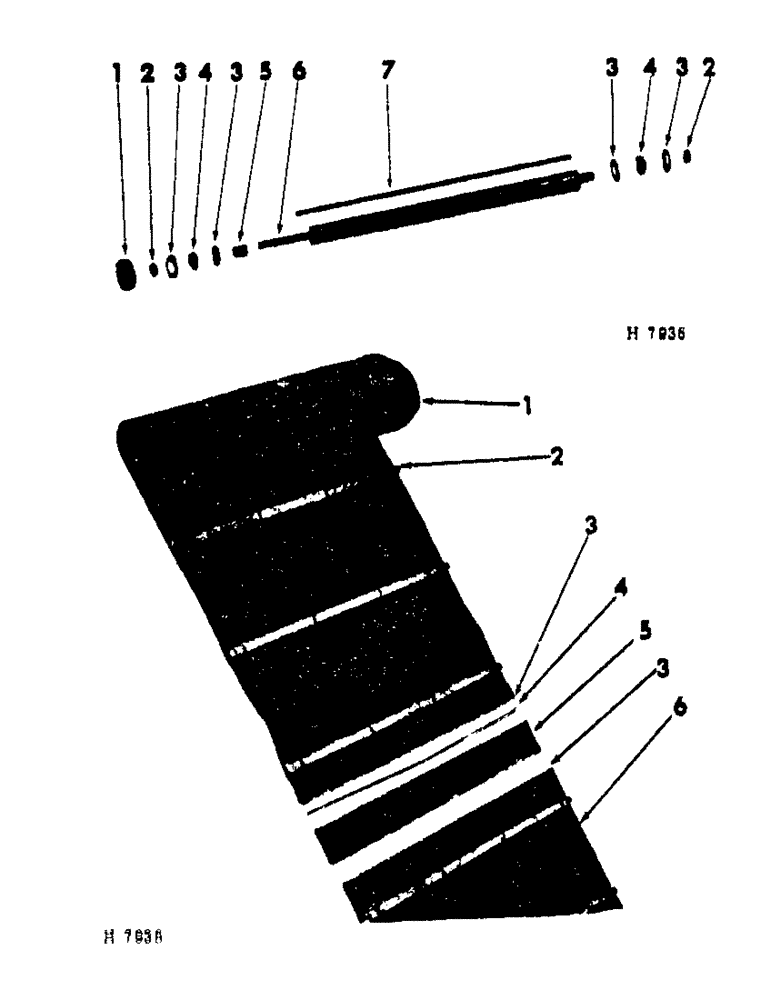

Запчасти Case IH 201 (D-030[B]) - PLATFORM APRON, PRIOR TO 1964, DOUBLE SWATH ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

618697R2

PULLEY, 540 RPM roller driven

1шт.

1

607669R1

PULLEY, 1000 RPM roller driven

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

2

455102R11

COLLAR

brg locking (includes 102569, screw) (use w/455965R91, brg)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

2

610541R11

COLLAR

brg locking (includes 102569, screw) (use w/456965R91, brg)

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

3

612031R1

FLANGED BEARING

TTE, brg

4шт.

BOLT W/NUT, 5/16 x 3/4" crg

2шт.

BOLT W/NUT, 5/16 x 3/4" no. 3 plow

2шт.

LK-WASH, 5/16"

4шт.

4

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

roller (w/455102R11, collar)

2шт.

4

610540R91

BEARING

roller (w/610541R11, collar)

2шт.

5

607783R1

SPACER,1" Pipe x 1850"

roller shaft (prior to 1965)

1шт.

5

591730R1

SPACER,1" Pipe x13"

roller shaft (1965 & since)

1шт.

6

607832R91

ROLLER

drive, Serial Range: (prior-1965)

1шт.

6

591731R91

ROLLER, drive (1965 & since)

1шт.

7

607835R1

ROD, support tie, Serial Range: (prior-1965)

1шт.

7

607770R2

ROD, suport tie (1965 & since)

1шт.

NUT, 7/16"

4шт.

LK-WASH, 7/16"

2шт.

591754R91

PACKAGE, increased capacity (from 36" width to 42" width) double swath field conversion

1шт.

Composed of: (1) angle 591725R1, (1) angle 591726R1, (1) angle 591727R1, (1) apron 591733R91, (1) brake 591728R1, (1) extension 591734R91, (1) R 607770R2, (1) roller 591731R91, (1) roller 613226R11, (1) shaft 608745R1, (1) spacer 591730R1

1шт.

1

APRON, swath platform (prior to 1964, order 1-608775R91, apron, if extension is used, also order 1-608776R91, apron extension)

1шт.

2

607843R1

SLAT, apron canvas

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

special copper

1шт.

618642R1

WASHER

WASH, special copper

1шт.

451312R1

STAPLE

special wire

1шт.

3

607845R91

LACING, apron flexible

3шт.

4

607844R1

PIN, lacing canvas locking

3шт.

5

607846R91

FILLER, platform canvas (includes 607845R91, lacing & 607844R1, pin)

1шт.

6

607840R91

EXTENSION, apron canvas composed of: (1) canvas (NSS), (1) lacing 607845R91, (1) pin 607844R1, (24) rivet Q3569, (4) slat 607843R1, (84) staple 451312R1, (24) washer 618642R1

1шт.
