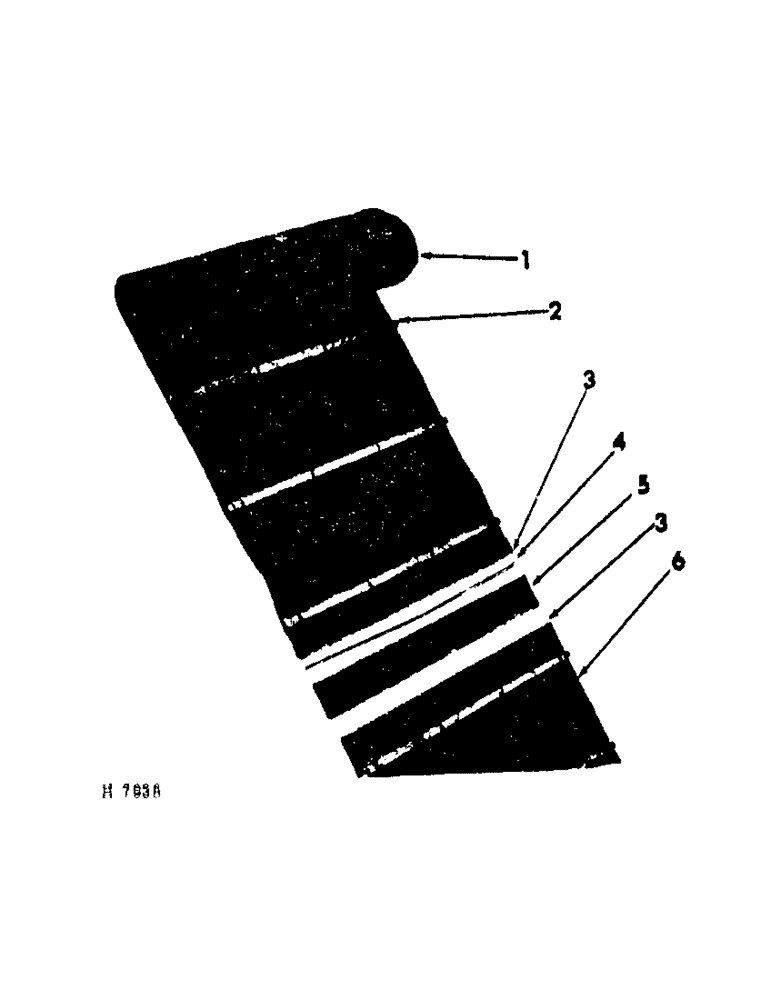

Запчасти Case IH 201 (D-030[A]) - SWATH CONVERSION PACKAGE (58) - ATTACHMENTS/HEADERS

1

APRON, swath platform (prior to 1964, order 1-608775R91, apron, if extension is used, also order 1-608776R91, apron extension)

1шт.

2

607843R1

SLAT, apron canvas

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

special copper

1шт.

618642R1

WASHER

WASH, special copper

1шт.

451312R1

STAPLE

special wire

1шт.

3

607845R91

LACING, apron flexible

3шт.

4

607844R1

PIN, lacing canvas locking

3шт.

5

607846R91

FILLER, platform canvas (includes 607845R91, lacing & 607844R1, pin)

1шт.

6

607840R91

EXTENSION, apron canvas composed of: (1) canvas (NSS), (1) lacing 607845R91, (1) pin 607844R1, (24) rivet Q3569, (4) slat 607843R1, (84) staple 451312R1, (24) washer 618642R1

1шт.
