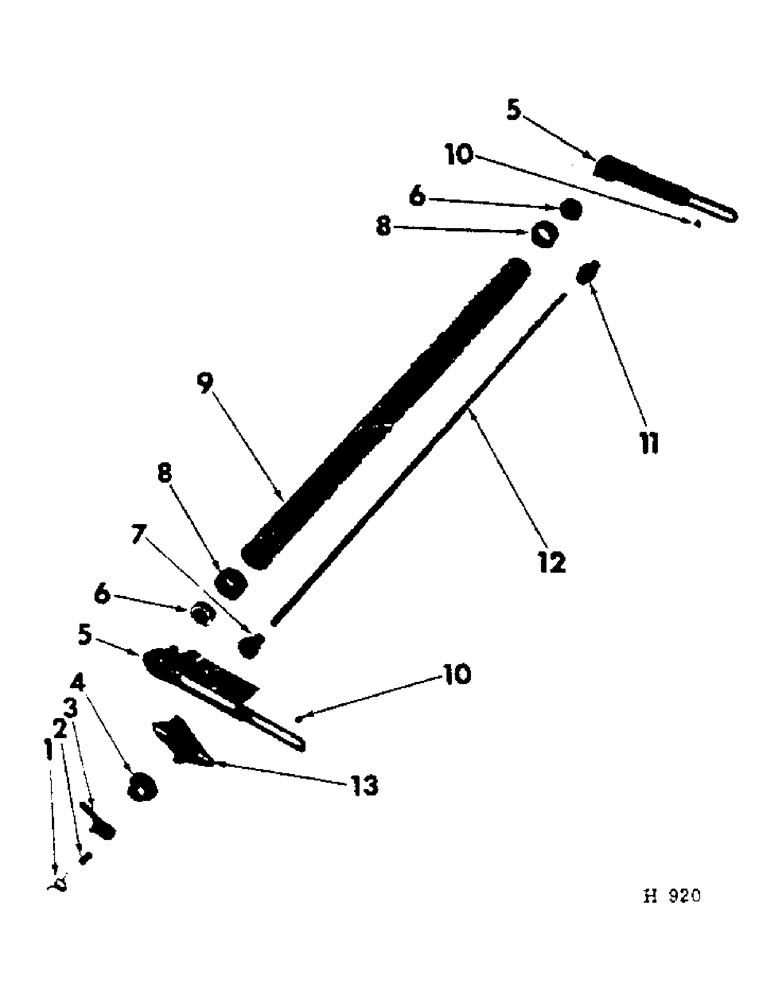

Запчасти Case IH 201 (D-029) - DRIVEN ROLLER, DOUBLE SWATH ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

608748R1

SPRING

pawl hold-down (1964 & since)

1шт.

2

618631R1

SPACER

pawl, Serial Range: (prior-1964)

1шт.

2

608747R1

SPACER, pawl (1964 & since)

1шт.

3

607838R1

PAWL, ratchet, Serial Range: (prior-1964)

1шт.

3

618613R2

PAWL, ratchet (1964 & since)

1шт.

BOLT, 5/16 x 1-1/2" type 2

1шт.

WASH, 11/32 x 1 x 16 ga

1шт.

LK-WASH, 5/16"

1шт.

4

618615R1

RATCHET, roller tightener

1шт.

618638R1

PIN,3/16" x 1 1/8", Coiled

1шт.

5

611764R11

SUPPORT, brg front, Serial Range: (prior-1965)

1шт.

5

592149R11

SUPPORT, brg front (1965 & since)

1шт.

5

611763R11

SUPPORT, brg rear, Serial Range: (prior-1965)

1шт.

5

592148R11

SUPPORT

brg rear (1965 & since)

1шт.

BOLT W/NUT, 5/16 x 1" mach

2шт.

WASH, 11/32 x 1 x 16 ga

2шт.

LK-WASH, 5/16"

2шт.

6

613390R91

ROLLER BEARING

roller, Serial Range: (prior-1965)

2шт.

6

592141R91

ROLLER BEARING,17.65mm Hex x 47mm OD x 20.95mm W

roller (1965 & since)

2шт.

7

618611R1

PINION

rach rear

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

8

592142R1

RETAINER

brg rubber (1965 & since)

2шт.

9

607836R91

ROLLER, driven, Serial Range: (prior-1965)

1шт.

9

592147R1

TUBE,2.25" OD, 40.94" Length

ROLLER, driven (1965 & since)

1шт.

10

M43047

SPACER

brg support

2шт.

11

618612R1

PINION

rack front

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

12

607837R1

SHAFT, pinion rack, Serial Range: (prior-1965)

1шт.

12

608745R1

SHAFT, pinion rack (1965 & since)

1шт.

WASH, 21/32 x 1-1/2 x 16 ga

1шт.

C-PIN, 1/8 x 1"

1шт.

13

618616R1

BRACKET, alignment, Serial Range: (prior-1964)

1шт.

13

608746R1

BRACKET, alignment (1964 & since)

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

LUB-FTG, 1/4"-NF (1964 & since)

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

2шт.

WASH, 13/32 x 1 x 16 ga

2шт.

LK-WASH, 3/8"

2шт.
